Wastewater/Activity/PacpInspection/1.0Aug 30, 2016, 08:01 PM
19 0209_19 0208_8302016_131009.mp4
- Date
- 08/30/2016
- W/O
- 0591703
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00726
- PipeID
- P15178
- Time
- 1:01 PM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7221
- Sewer Name
- 19 NORWALK BOULEVARD TRUNK
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- 20160830AM_NORWALK_BOULEVARD_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 19 0208
- Downstream MH
- 19 0209
- Dir. of Survey
- Upstream
- Length Surveyed
- 232.1 ft.
- Total Length
- 232.1 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

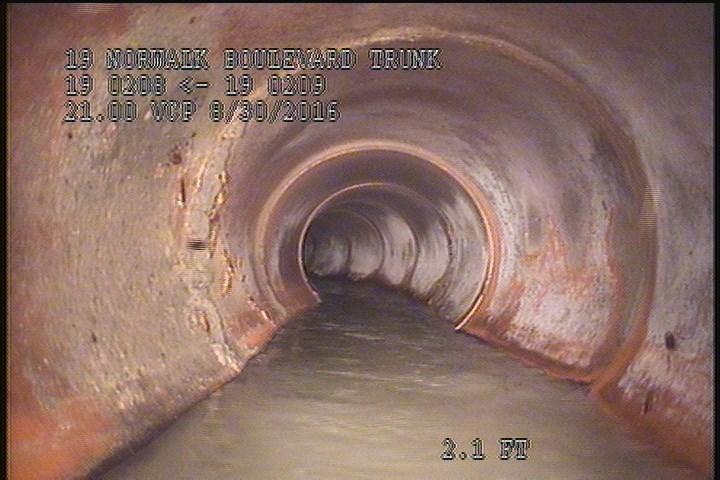

0 ft. - Downstream Manhole, Survey Begins - 1:09 PM

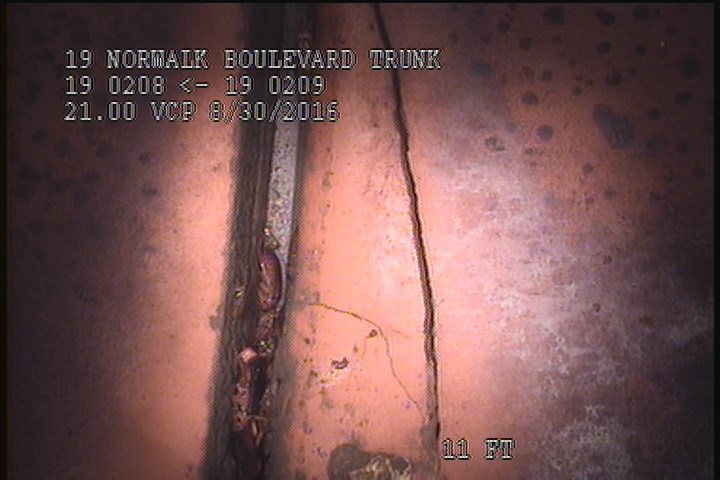

11 ft. - Broken, from 01 to 04 o'clock, within 8 inches of joint: YES

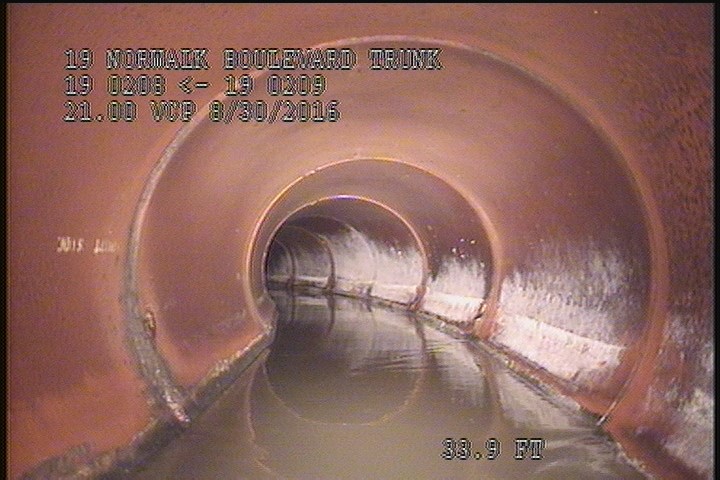

33.9 ft. - Water Level, 15 %of cross sectional area

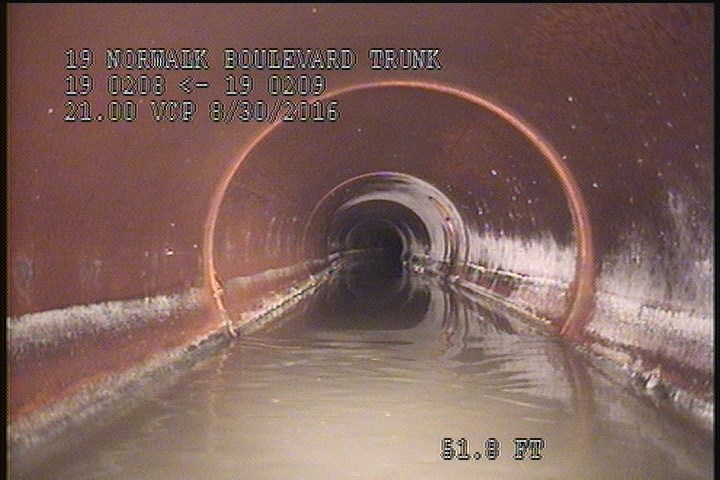

51.8 ft. - Water Level, 20 %of cross sectional area

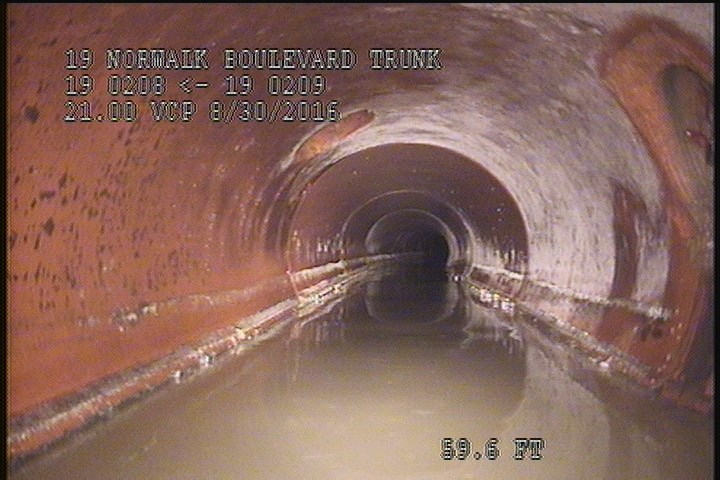

59.6 ft. - Water Level, 25 %of cross sectional area
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 231.8 | MGO | ROACHES INSIDE THE MH. |
| 0 | MWM | — |
| 231.6 | MGO | SLIGHT GREASE/DEBRIS THROUGHOUT THE REACH |
| 0 | MWL | — |
| 232.1 | AMH | 1:28 PM |
| 11 | B | — |
| 0 | AMH | 1:09 PM |
| 59.6 | MWL | — |
| 0 | MGO | ROACHES INSIDE THE MH. |
| 51.8 | MWL | — |
| 63.9 | TFC | — |
| 62.3 | TBA | — |
| 33.9 | MWL | — |
Properties (4)
- custom_field_three
- BROKEN PIPE
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-08-30T13:01:12-07:00
