Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 29, 2016, 08:39 AM

  • 19 0259_19 0258_8292016_051727.mp4

Date
08/29/2016
W/O
0585465
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00728
PipeID
P15229
Time
1:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0260
Sewer Name
19 STUDEBAKER ROAD TRUNK
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
01
Purpose
Routine Assessment
Project
20160829MDM_STUDEBAKER_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
19 0259
Downstream MH
19 0258
Dir. of Survey
Downstream
Length Surveyed
335 ft.
Total Length
335 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 19 0259 to 19 0258
MH: 19 0259MH: 19 0258downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM0 ft. MWL - Water Level, 5 %of cross sectional area24.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active24.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES39.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open60.7 ft. MGO - General Observation - 15" VCP87.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped141 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped163.6 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - HAIRLINE189.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped189.6 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start236.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open291.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open335 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM335 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (2)

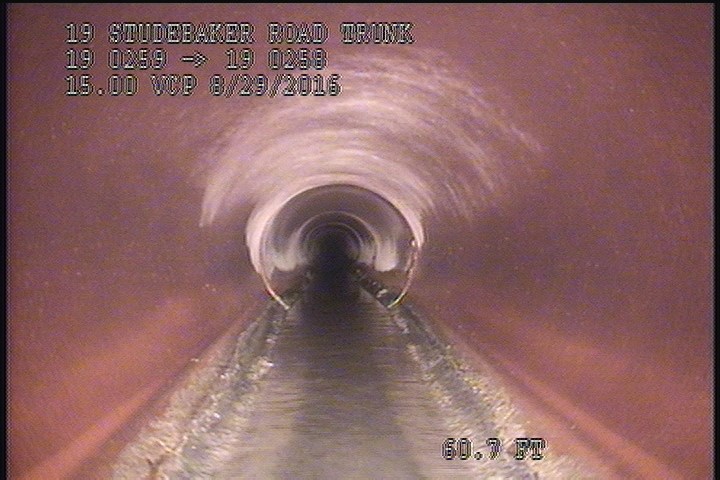

  • General Observation - 15" VCP

    60.7 ft. - General Observation - 15" VCP

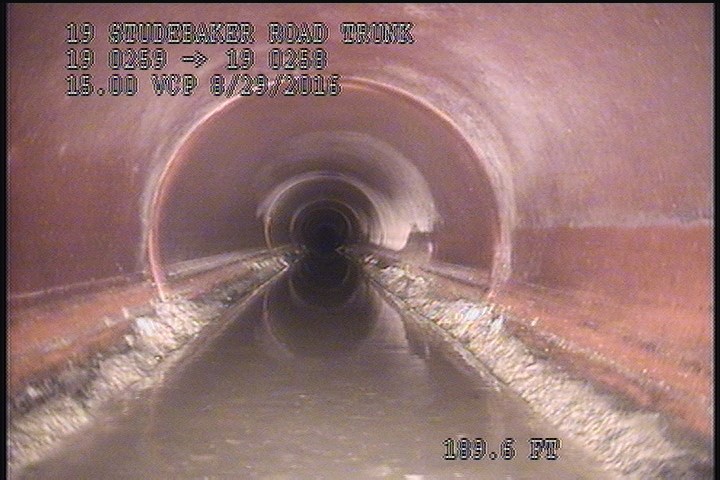

  • Deposits Attached Grease, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    189.6 ft. - Deposits Attached Grease, 3 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P15229Work order 0585465

Observations (16)

DistanceCodeObservation
0MWM—
163.6FLHAIRLINE
39.1TFOpen
24.2TFActive
24.2DAGS—
60.7MGO15" VCP
236.9TFOpen
291.2TFOpen
0AMH4:50AM
189.6DAGS—
0MWL—
335AMH5:20AM
335DAGS—
87.3TFCCapped
189.1TFCCapped
141TFCCapped

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-08-29T01:39:07-07:00
