Wastewater/Activity/PacpInspection/1.0Aug 28, 2016, 06:34 PM
C 0330A_C 0509_8282016_113740.mp4
- Date
- 08/28/2016
- W/O
- 0585469
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00930
- PipeID
- P22165
- Time
- 11:34 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7217
- Sewer Name
- C JOINT OUTFALL C - UNIT 7A REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160828AM_JOINT_OUTFALL_C_UNIT_7A_REPLACEMENT
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- C 0330A
- Downstream MH
- C 0509
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (6)

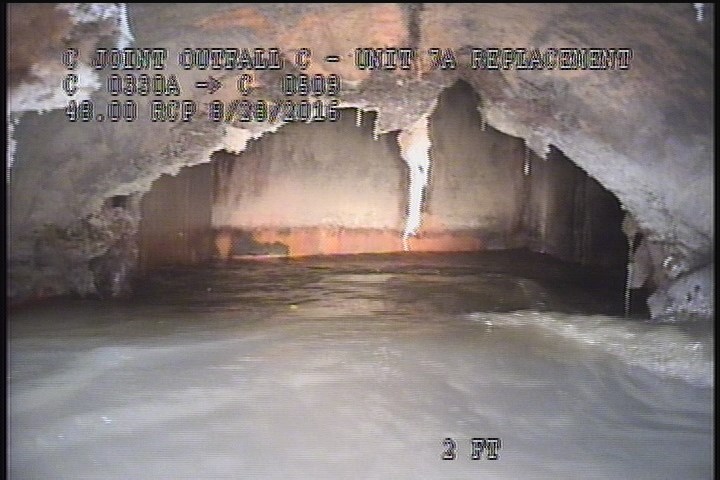

0 ft. - Upstream Manhole, Survey Begins - 11:36 AM

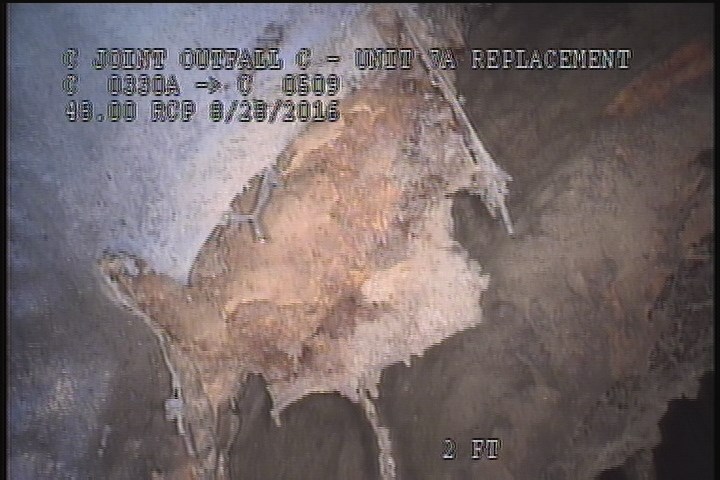

0 ft. - Water Mark, 50 %of cross sectional area

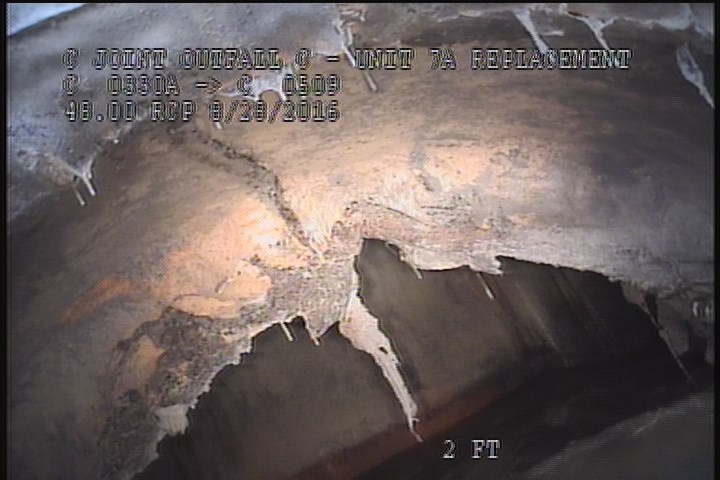

0 ft. - Water Level, 50 %of cross sectional area

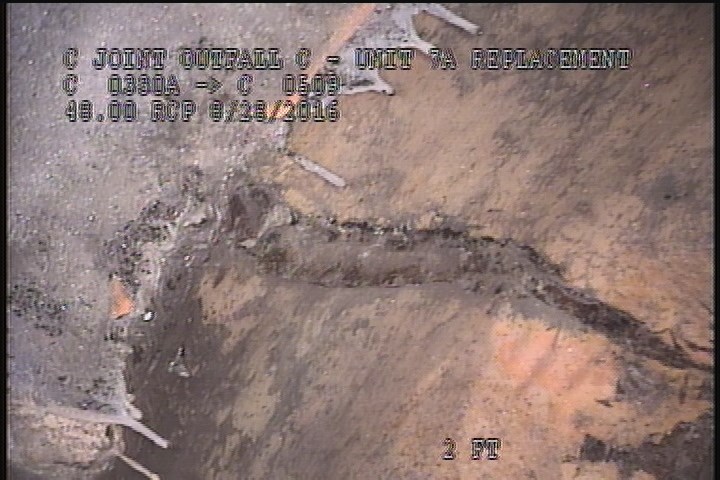

2 ft. - General Observation - LINER IS RIPPED

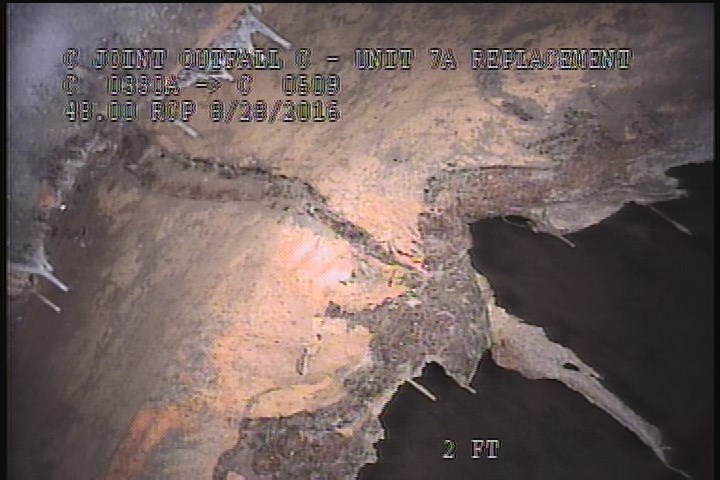

2 ft. - General Observation - SHEET OF LINER/CONCRETE HANGING

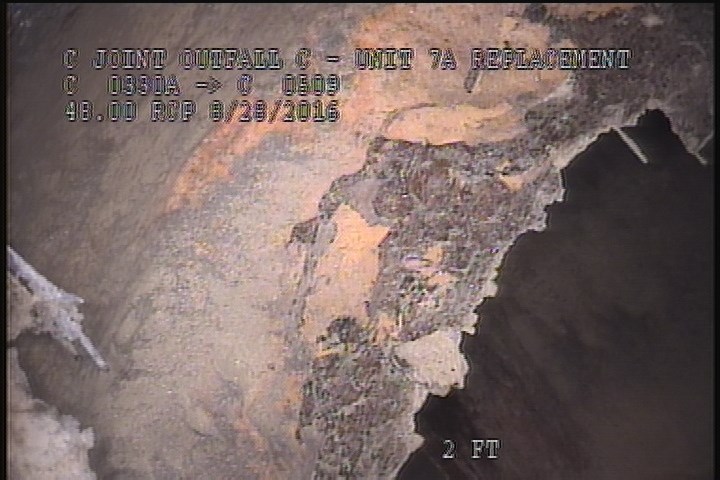

2.1 ft. - Upstream Manhole, Survey Ends - ABLE TO SEE MH. C 509
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | AMH | ABLE TO SEE MH. C 509 |
| 2 | MGO | LINER IS RIPPED |
| 2 | MMC | PIPE IS LINED |
| 0 | AMH | 11:36 AM |
| 0 | MWM | — |
| 2 | MGO | SHEET OF LINER/CONCRETE HANGING |
| 2 | LFZ | PEELING/RIPPING THROUGHOUT |
| 0 | MWL | — |
Properties (5)
- additional_info
- JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. AND ZOOM IN D/S TO MH. C 509
- custom_field_three
- LINER PEELING/RIPPING, SEV. EXP. AGG
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-28T11:34:43-07:00
