Wastewater/Activity/PacpInspection/1.0Aug 28, 2016, 06:13 PM
C 0330A_C 0509_8282016_111847.mp4
- Date
- 08/28/2016
- W/O
- 0585469
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00930
- PipeID
- P22165
- Time
- 11:13 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7217
- Sewer Name
- C JOINT OUTFALL C - UNIT 7A REPLACEMENT
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160828AM_JOINT_OUTFALL_C_UNIT_7A_REPLACEMENT
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- C 0509
- Downstream MH
- C 0330A
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

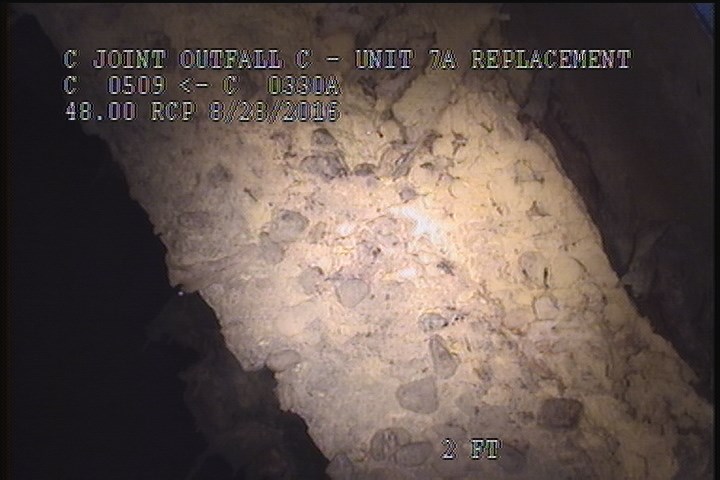

0 ft. - Water Level, 50 %of cross sectional area

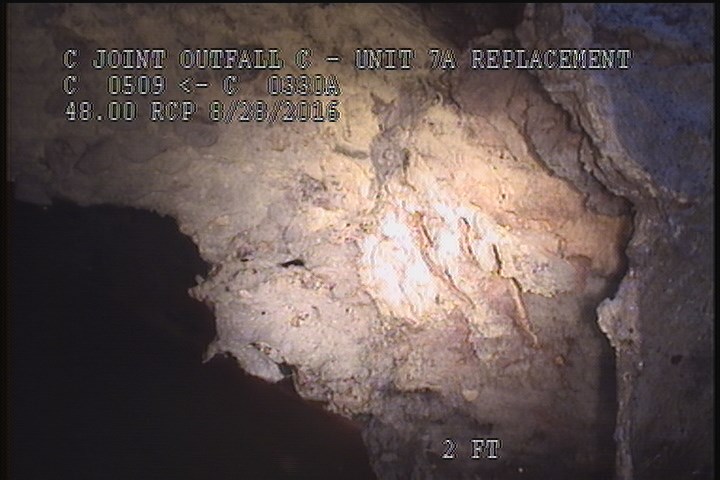

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO

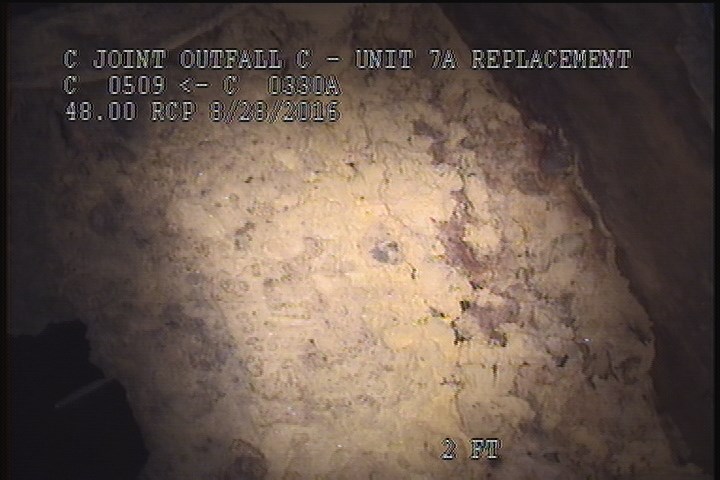

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO

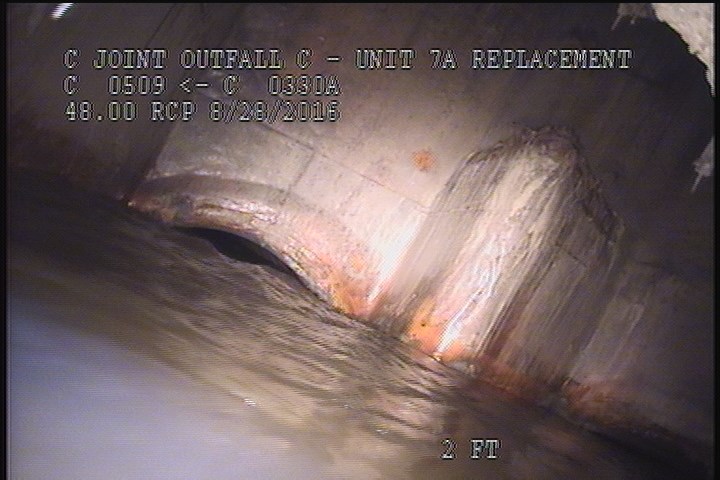

2.1 ft. - Downstream Manhole, Survey Ends - ABLE TO SEE MH. C 330A
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 11:17AM |
| 2 | MGO | SHEET OF CONCRETE PEELING OFF |
| 2.1 | AMH | ABLE TO SEE MH. C 330A |
| 0 | MWM | — |
| 2 | SSS | — |
| 2 | SAV | — |
| 0 | MGO | STOPLOG IN PLACE INSIDE THE MH. @ 06 O'CLOCK |
Properties (5)
- additional_info
- JUST GOING TO HANG THE CAMERA IN THE CENTER OF THE MH. AND ZOOM IN U/S TO MH. C 330A
- custom_field_three
- CONCRETE HANGING, CAN'T SEE PIPE CONDITION
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-08-28T11:13:03-07:00
