Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 27, 2016, 01:56 PM

  • 19 0227_19 0226_8272016_075115.mp4

Date
08/27/2016
W/O
0585415
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00729
PipeID
P15196
Time
6:56 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO258
Sewer Name
19 WEST ARTESIA TRUNK
City
CERRITOS
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
01
Purpose
Routine Assessment
Project
20160827MDM_WEST_ARTESIA_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
19 0227
Downstream MH
19 0226
Dir. of Survey
Downstream
Length Surveyed
40 ft.
Total Length
40 ft.
Structural Index
2
Structural Quick
4132
Structural Rating
29
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 19 0227 to 19 0226
MH: 19 0227MH: 19 0226downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 7:50AM2.8 ft. CC - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES2.8 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE12.8 ft. MGO - General Observation - 12" VCP12.8 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT12.8 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SLIGHT18 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT23 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT23 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE23 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT28.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT33.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT33.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT38.7 ft. FC - Fracture Circumferential, from 10 to 08 o'clock, within 8 inches of joint: YES - SLIGHT39.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open39.2 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - HAIRLINE40 ft. AMH - Downstream Manhole, Survey Ends - 8:05AM

Observation photos (3)

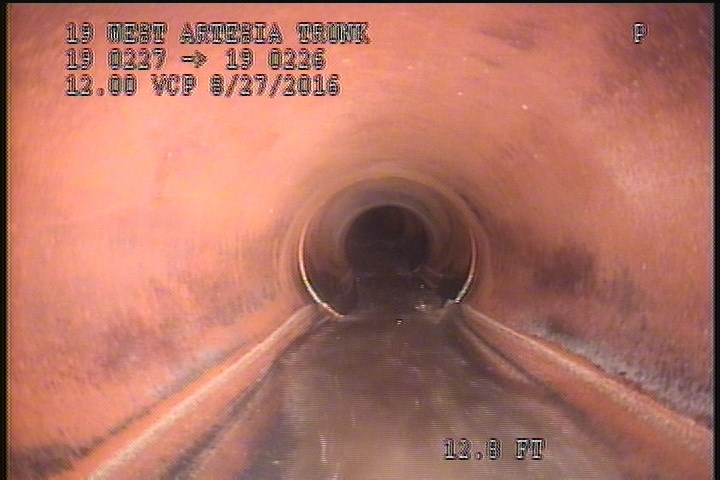

  • General Observation - 12" VCP

    12.8 ft. - General Observation - 12" VCP

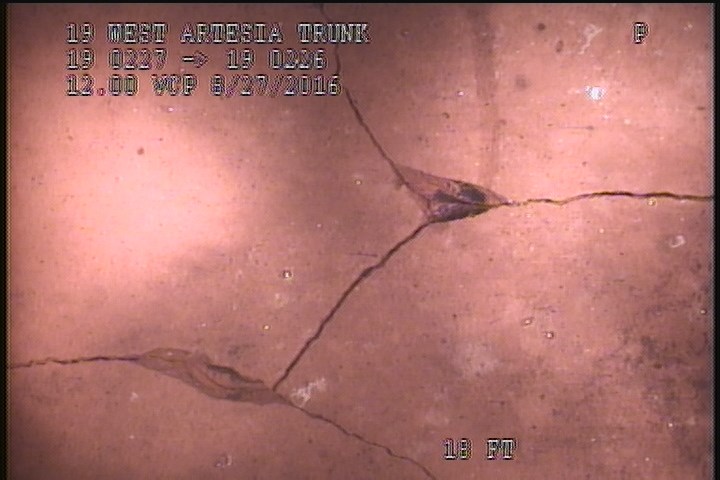

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT

    18 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT

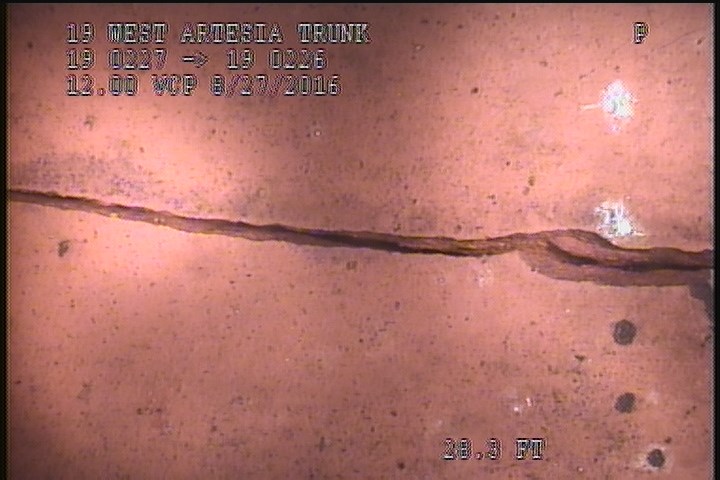

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

    28.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT

All inspections of P15196Work order 0585415

Observations (19)

DistanceCodeObservation
39.2TFOpen
18FMSLIGHT
12.8MGO12" VCP
2.8CC—
2.8FCHAIRLINE
23FCSLIGHT
12.8FCSLIGHT
28.3FLSLIGHT
0MWM—
33.2FCSLIGHT
12.8FCSLIGHT
39.2FCHAIRLINE
0MWL—
38.7FCSLIGHT
23FLHAIRLINE
33.7FCSLIGHT
40AMH8:05AM
0AMH7:50AM
23FCSLIGHT

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2016-08-27T06:56:59-07:00
