Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 23, 2016, 03:55 PM

  • 02 1935_02 1934_8232016_090133.mp4

Date
08/23/2016
W/O
0585839
Weather
Very Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00238
PipeID
P04708
Time
8:55 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7212
Sewer Name
02 BELVEDERE TRUNK
City
MONTEREY PARK
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
05
Purpose
Capital Improvement Program Assesment
Project
20160823AM_BELVEDERE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1934
Downstream MH
02 1935
Dir. of Survey
Upstream
Length Surveyed
182.8 ft.
Total Length
182.8 ft.
Structural Index
3
Structural Quick
5141
Structural Rating
22
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 02 1934 to 02 1935
MH: 02 1934MH: 02 1935upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:22 AM1.1 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK1.5 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH6.5 ft. JOM - Joint Offset Medium7.7 ft. JOM - Joint Offset Medium18.1 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES27.8 ft. CM - Crack Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES63.8 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES78.3 ft. MGP - General Photograph - BROKEN PIPE78.3 ft. B - Broken, from 07 to 12 o'clock, within 8 inches of joint: YES113.5 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES169.4 ft. FM - Fracture Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN182.8 ft. MWM - Water Mark, 25 %of cross sectional area182.8 ft. MWL - Water Level, 15 %of cross sectional area182.8 ft. MGO - General Observation - ROACHES INSIDE THE MH.182.8 ft. AMH - Downstream Manhole, Survey Begins - 9:00 AM

Observation photos (5)

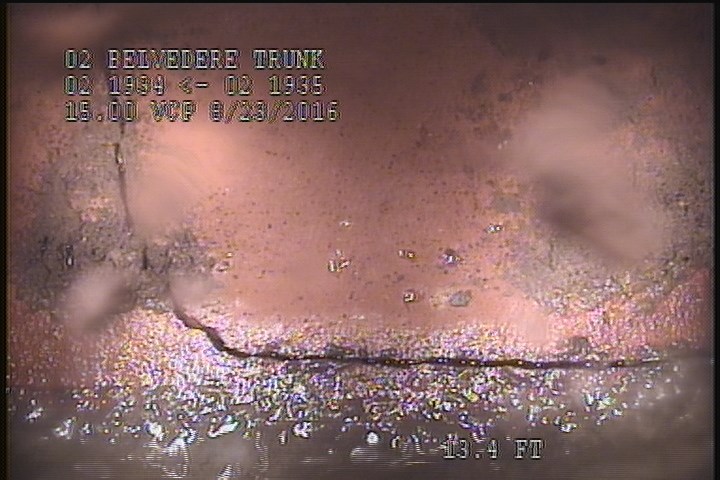

  • Fracture Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN

    13.4 ft. - Fracture Multiple, from 07 to 01 o'clock, within 8 inches of joint: YES - POSSIBLY BROKEN

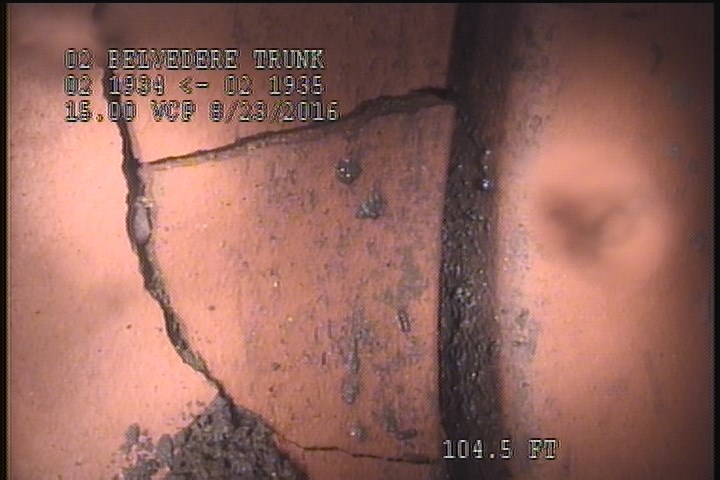

  • General Photograph - BROKEN PIPE

    104.5 ft. - General Photograph - BROKEN PIPE

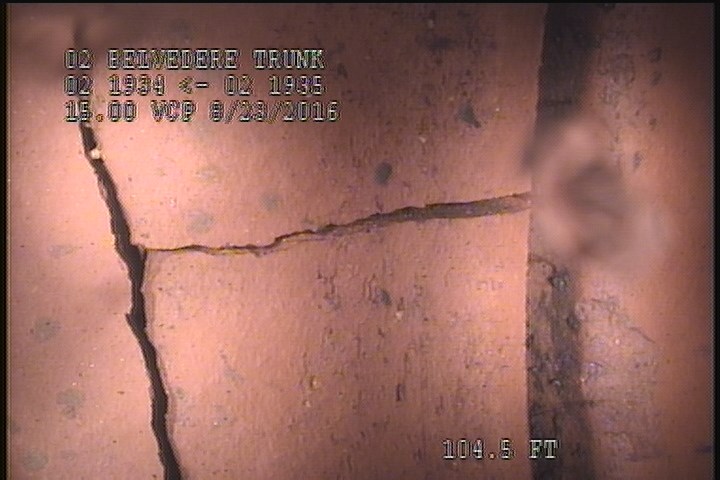

  • Broken, from 07 to 12 o'clock, within 8 inches of joint: YES

    104.5 ft. - Broken, from 07 to 12 o'clock, within 8 inches of joint: YES

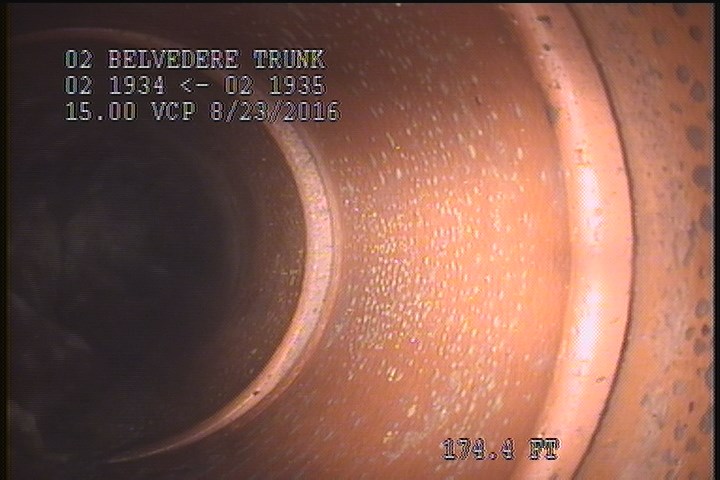

  • Joint Offset Medium

    175.1 ft. - Joint Offset Medium

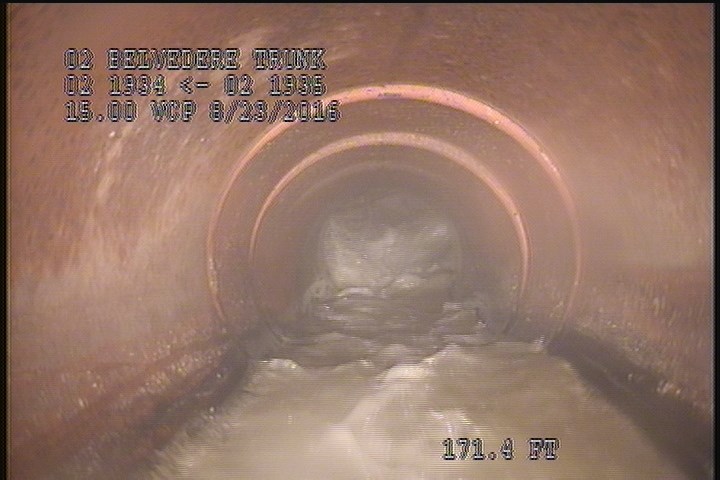

  • Upstream Manhole, Survey Ends - 9:22 AM

    182.8 ft. - Upstream Manhole, Survey Ends - 9:22 AM

All inspections of P04708Work order 0585839

Observations (16)

DistanceCodeObservation
0MWM—
182.8AMH9:22 AM
181.7MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
181.3MGOSLIGHT GREASE THROUGHOUT THE REACH
175.1JOM—
13.4FMPOSSIBLY BROKEN
0MWL—
69.3CL—
155CM—
119CM—
176.3JOM—
0MGOROACHES INSIDE THE MH.
0AMH9:00 AM
104.5MGPBROKEN PIPE
104.5B—
164.7CM—

Properties (5)

additional_info
RFIR INSPECTION
custom_field_three
BROKEN PIPE
custom_field_two
1
customer
LACSD
datetime
2016-08-23T08:55:53-07:00
