Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 12, 2016, 05:49 PM

  • 05 0353_05 0460_8122016_105826.mp4

Date
08/12/2016
W/O
0585478
Weather
Dry
Operator/Surveyor
IGNACIO
Sewer ID
Z00526
PipeID
P05675
Time
10:49 AM
Certificate
U-115-06022628
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7203
Sewer Name
05 STRAWBERRY AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
13
Purpose
Routine Assessment
Project
20160812MI_STRAWBERRY_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
05 0460
Downstream MH
05 0353
Dir. of Survey
Upstream
Length Surveyed
319.3 ft.
Total Length
319.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 05 0460 to 05 0353
MH: 05 0460MH: 05 0353upstream0 ft. AMH - Upstream Manhole, Survey Ends - 11:53AM0.9 ft. MGO - General Observation - LINE DROPS TO LARGER LINE AT MH 035310.4 ft. DAR - Deposits Attached Ragging, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish55 ft. DAR - Deposits Attached Ragging, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start55.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN58.9 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"88.6 ft. MGO - General Observation - SLIGHT GREASE THROUGHOUT THE REACH, 5 TO 7 OCLOCK,105.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6" - OPEN108.5 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6" - OPEN, 5% DEBRIS155.2 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6" - OPEN, 10% DEBRIS158.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"160.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6" - OPEN205.2 ft. TFD - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6" - 20% DEBRIS207.8 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6" - OPEN252.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN254.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"257.6 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"286 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES307.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"310.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"319.3 ft. MWM - Water Mark, 20 %of cross sectional area319.3 ft. MGO - General Observation - CONNECTION AT MH, 3 OCLOCK, ACTIVE319.3 ft. MWL - Water Level, 10 %of cross sectional area319.3 ft. AMH - Downstream Manhole, Survey Begins - 10:55AM

Observation photos (5)

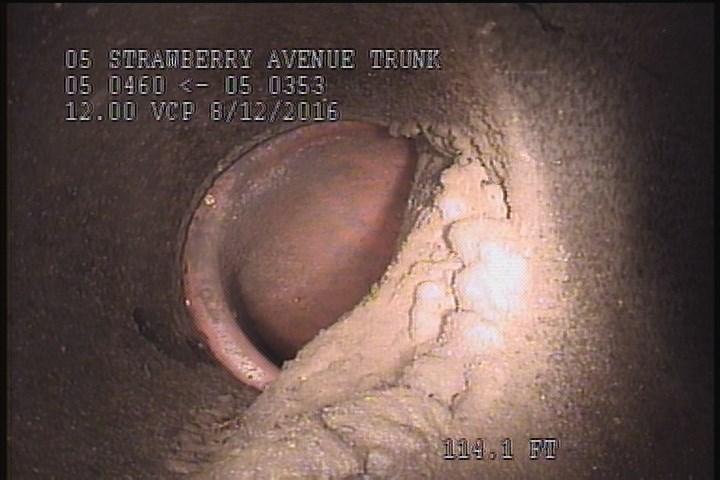

  • Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6" - 20% DEBRIS

    114.1 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: NO, 6" - 20% DEBRIS

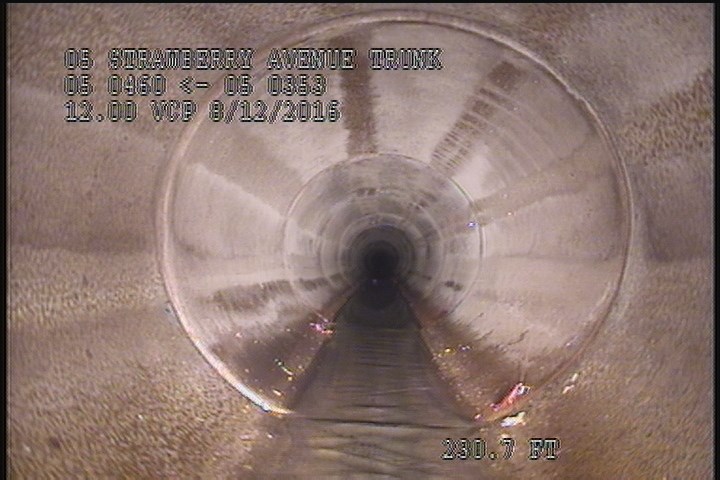

  • General Observation - SLIGHT GREASE THROUGHOUT THE REACH, 5 TO 7 OCLOCK,

    230.7 ft. - General Observation - SLIGHT GREASE THROUGHOUT THE REACH, 5 TO 7 OCLOCK,

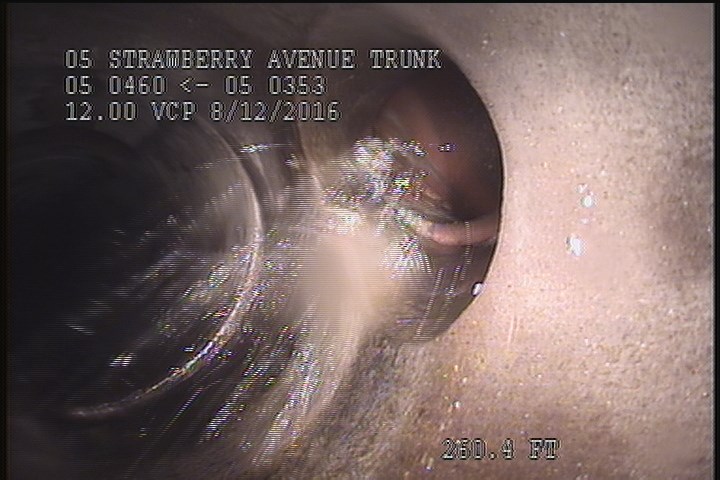

  • Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"

    260.4 ft. - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"

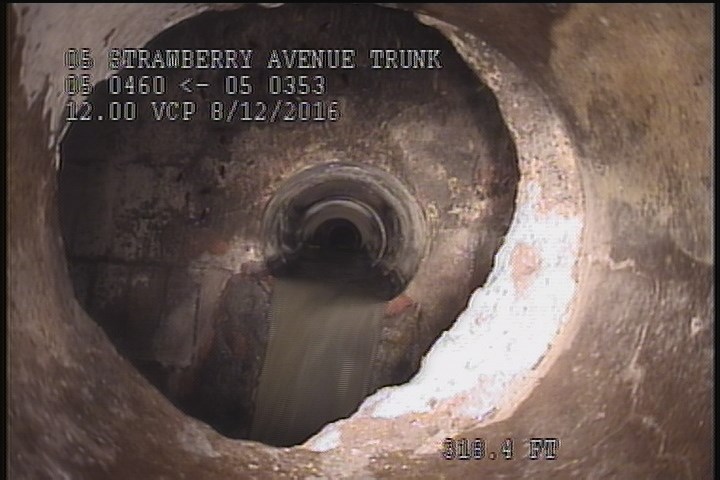

  • General Observation - LINE DROPS TO LARGER LINE AT MH 0353

    318.4 ft. - General Observation - LINE DROPS TO LARGER LINE AT MH 0353

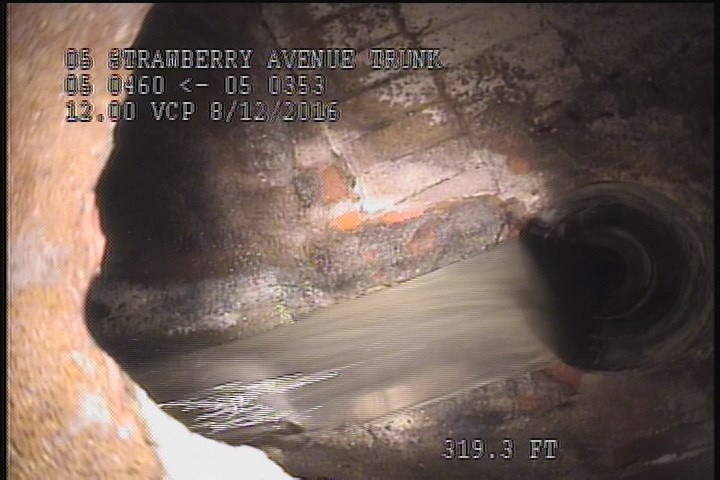

  • Upstream Manhole, Survey Ends - 11:53AM

    319.3 ft. - Upstream Manhole, Survey Ends - 11:53AM

All inspections of P05675Work order 0585478

Observations (24)

DistanceCodeObservation
308.9DAR—
0MWM—
161.1TFC—
210.8TFOPEN, 5% DEBRIS
319.3AMH11:53AM
64.4TFA—
0MGOCONNECTION AT MH, 3 OCLOCK, ACTIVE
0MWL—
66.6TFOPEN
11.4TFC—
0AMH10:55AM
114.1TFD20% DEBRIS
9TFC—
263.7TFOPEN
164.1TFOPEN, 10% DEBRIS
111.5TFOPEN
213.8TFOPEN
318.4MGOLINE DROPS TO LARGER LINE AT MH 0353
33.3CM—
260.4TFA—
264.3DAR—
61.7TFA—
230.7MGOSLIGHT GREASE THROUGHOUT THE REACH, 5 TO 7 OCLOCK,
158.4TFOPEN

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-08-12T10:49:24-07:00
