Wastewater/Activity/PacpInspection/1.0Aug 12, 2016, 03:33 PM
29 0382_29 0381_8122016_090935.mp4
- Date
- 08/12/2016
- W/O
- 0579968
- Weather
- Dry
- Operator/Surveyor
- IGNACIO
- Sewer ID
- Z00537
- PipeID
- P24419
- Time
- 8:33 AM
- Certificate
- U-115-06022628
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- G7202
- Sewer Name
- 29 21ST STREET SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Maintenance Related
- Project
- 20160812MI_21ST_STREET_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0382
- Downstream MH
- 29 0381
- Dir. of Survey
- Downstream
- Length Surveyed
- 13.7 ft.
- Total Length
- 13.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

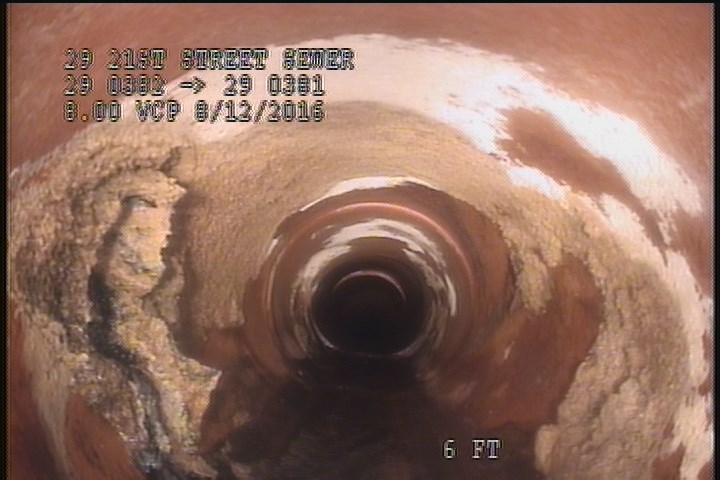

6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 04 o'clock, , within 8 inches of joint: YES, GREASE/CALCIUM

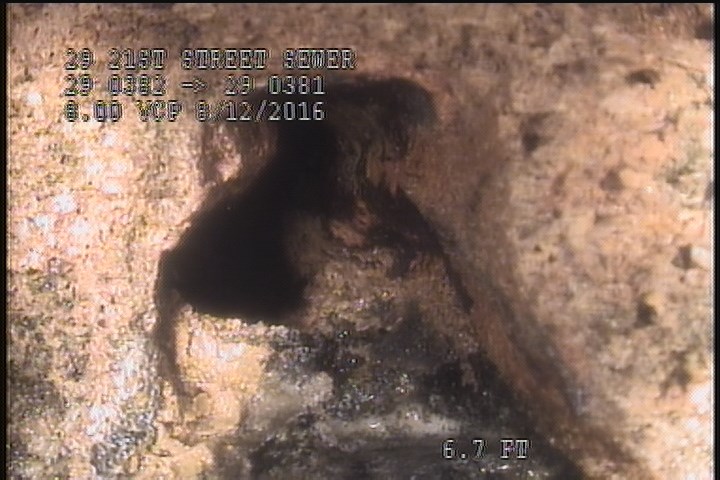

6.7 ft. - General Observation - POSSIBLE CONNECTION @ 10 OCLOCK, BLOCKED WITH 80% GREASE/CALCIUM

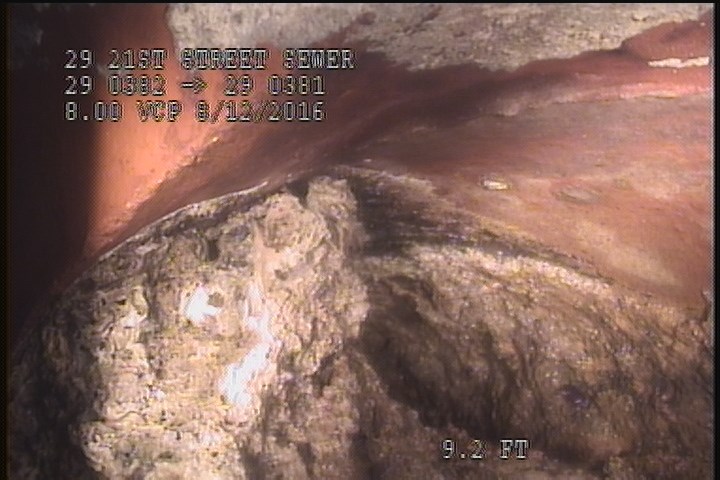

9.2 ft. - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6" - UNKOWN, 90% BLOCKED WITH GREASE/CALCIUM

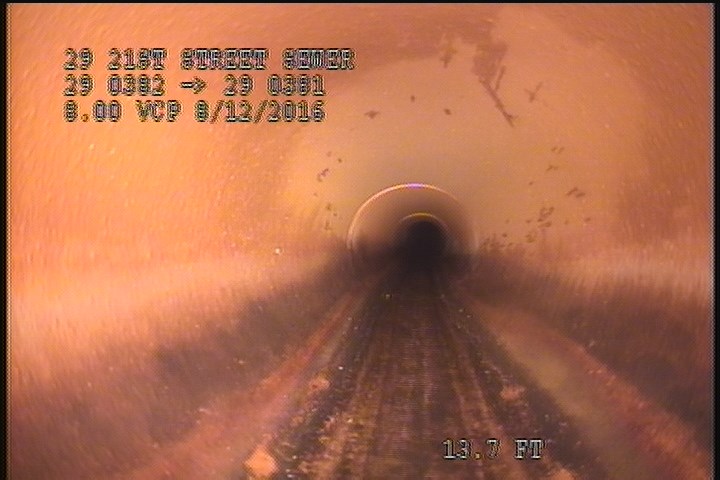

13.7 ft. - Survey Abandoned - GREASE/CALCIUM REDUCED TO APPROX. 5% FROM 7 TO 5 OCLOCK.
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 6.7 | MGO | POSSIBLE CONNECTION @ 10 OCLOCK, BLOCKED WITH 80% GREASE/CALCIUM |
| 0 | MGO | POST GREASE INSPECTION |
| 6 | DAE | — |
| 9.2 | TF | UNKOWN, 90% BLOCKED WITH GREASE/CALCIUM |
| 0 | AMH | 09:00AM |
| 0 | MWM | — |
| 13.7 | MSA | GREASE/CALCIUM REDUCED TO APPROX. 5% FROM 7 TO 5 OCLOCK. |
| 0 | MWL | — |
Properties (4)
- additional_info
- POST GREASE INSPECTION ONLY
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-12T08:33:17-07:00
