Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 12, 2016, 11:43 AM

  • 05 1774_05 1773_8122016_044911.mp4

Date
08/12/2016
W/O
0585854
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00473
PipeID
P07002
Time
4:43 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0234
Sewer Name
05 LOMITA TRUNK EXTENSION
City
LOMITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
32
Purpose
Capital Improvement Program Assesment
Project
20160812MDM_LOMITA_TRUNK_EXTENSION
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
05 1774
Downstream MH
05 1773
Dir. of Survey
Downstream
Length Surveyed
601.6 ft.
Total Length
601.6 ft.
Structural Index
2
Structural Quick
422I
Structural Rating
113
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
117
Pipe schematic from manhole 05 1774 to 05 1773
MH: 05 1774MH: 05 1773downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM-ABANDONED MH0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area2.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE2.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT7 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL13.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL18.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL21.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL29.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H37.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL37.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL46 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL51.4 ft. MGO - General Observation - ABANDONED MH51.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active51.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped57.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT57.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H78.5 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL86.3 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL114.5 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H126.2 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES131.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active131.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES153.9 ft. MGO - General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH180.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open190.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H259.7 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H267.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL267.8 ft. MGO - General Observation - 15" VCP267.8 ft. MWL - Water Level, 40 %of cross sectional area267.8 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL283.3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SL307.9 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SL312 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES319.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL319.9 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL327.7 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H339.8 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL343.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - H343.9 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL347.2 ft. JOM - Joint Offset Medium - 8;00 TO 4;00347.2 ft. FC - Fracture Circumferential, from 08 to 02 o'clock, within 8 inches of joint: YES - SL350 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H350 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H353.1 ft. MGO - General Observation - CUT JOINTS SEALED377.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open384.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL388.4 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL404.5 ft. FM - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL407.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H412.3 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL416.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H424.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL428.9 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H436.4 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL441 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL456.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL464.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL484.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL500.7 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT505 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL505.1 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H533 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL536.6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL544.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL548.6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL548.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL588.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open597 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL601.3 ft. MGO - General Observation - Active601.6 ft. AMH - Downstream Manhole, Survey Ends - 6:05AM

Observation photos (8)

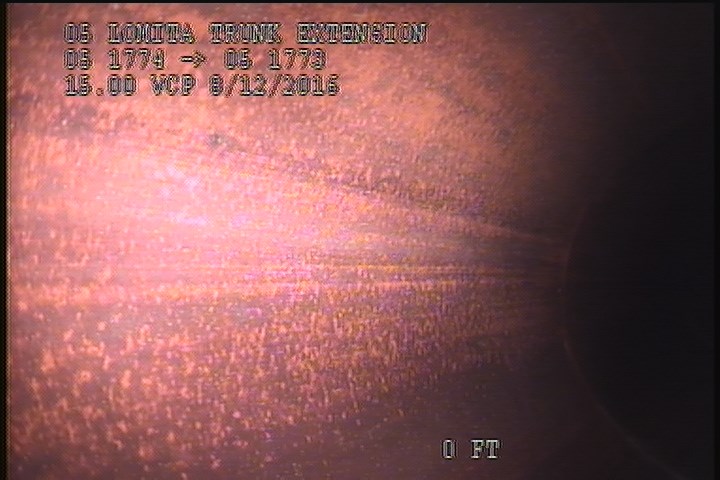

  • Upstream Manhole, Survey Begins - 4:45AM-ABANDONED MH

    0 ft. - Upstream Manhole, Survey Begins - 4:45AM-ABANDONED MH

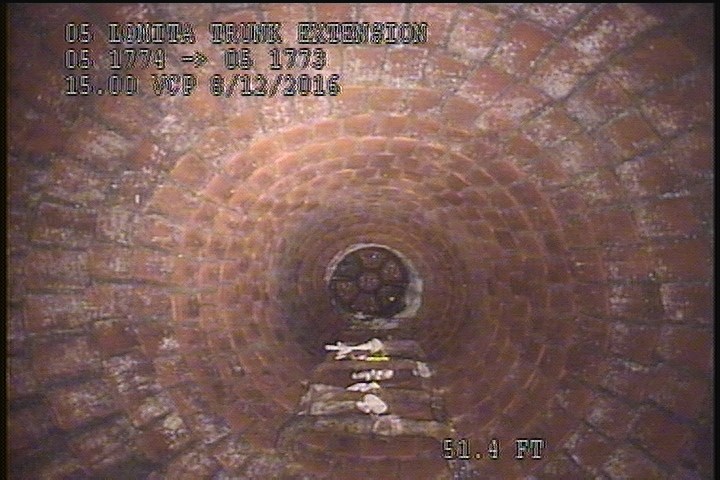

  • General Observation - ABANDONED MH

    51.4 ft. - General Observation - ABANDONED MH

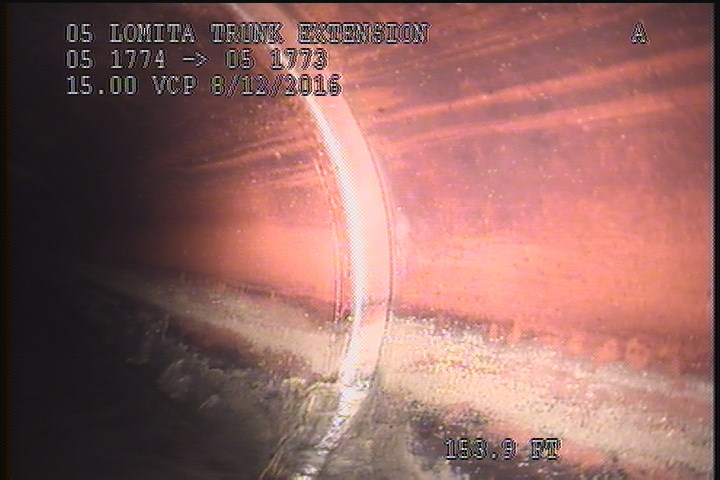

  • General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH

    153.9 ft. - General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH

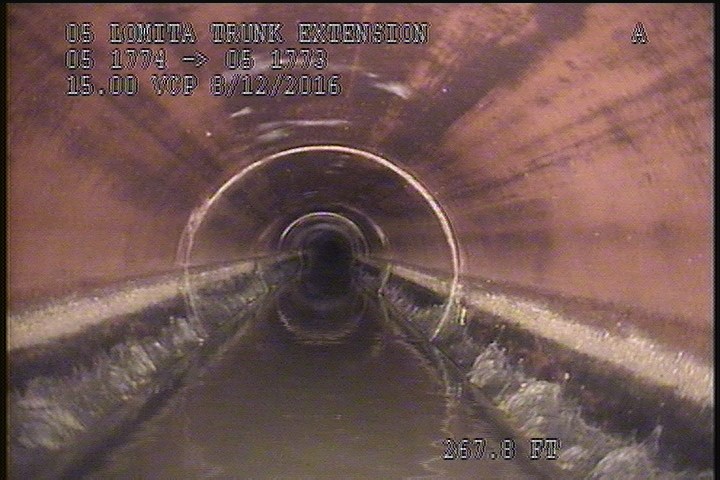

  • General Observation - 15" VCP

    267.8 ft. - General Observation - 15" VCP

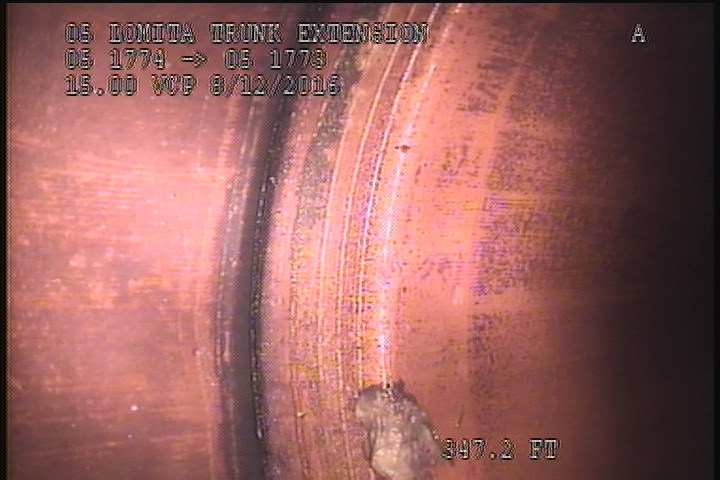

  • Joint Offset Medium - 8;00 TO 4;00

    347.2 ft. - Joint Offset Medium - 8;00 TO 4;00

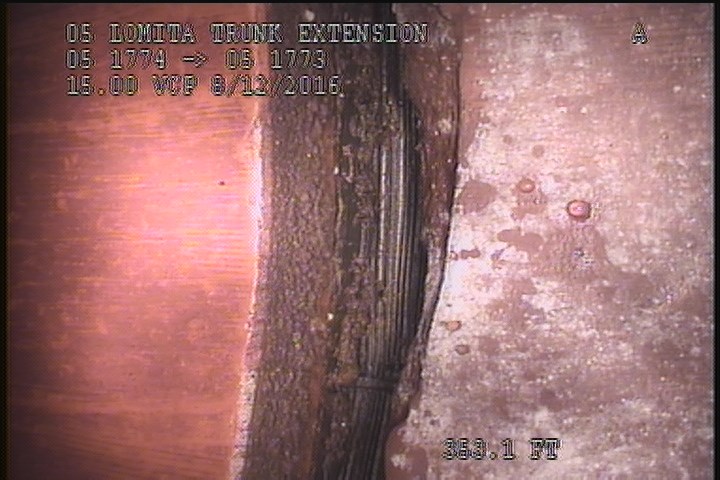

  • General Observation - CUT JOINTS SEALED

    353.1 ft. - General Observation - CUT JOINTS SEALED

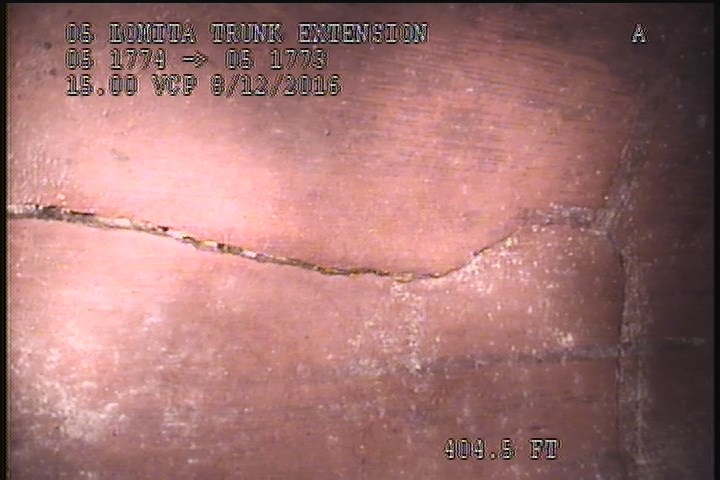

  • Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL

    404.5 ft. - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL

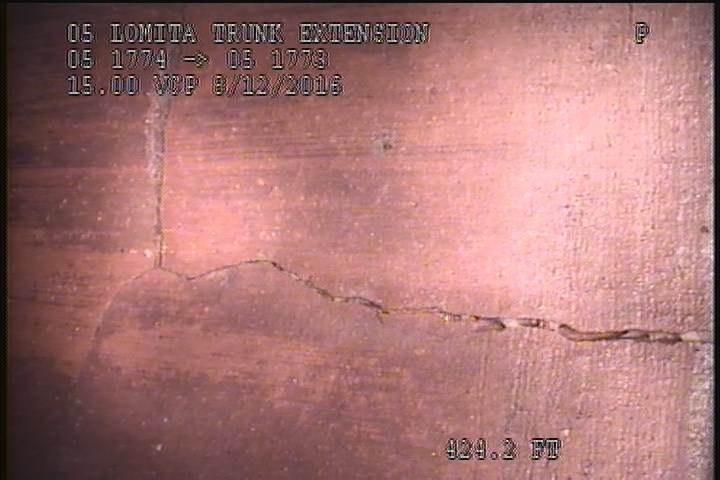

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

    424.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

All inspections of P07002Work order 0585854

Observations (73)

DistanceCodeObservation
180.4TBOpen
327.7FCH
500.7FCSLIGHT
544.9FCSL
2.1FCHAIRLINE
153.9MGOSLIGHT OFFSET JOINTS THROUGHOUT REACH
588.4TFOpen
0AMH4:45AM-ABANDONED MH
267.8MGO15" VCP
267.7FCSL
51.4MGOABANDONED MH
601.3MGOActive
51.4MGOConn. @ Mh, 3 O' Clock. Active
548.6FCSL
21.7FCSL
259.7FCH
319.9FCSL
114.5FCH
0MWL—
37.7FCSL
377.8TBOpen
51.4MGOConn. @ Mh, 9 O' Clock. Capped
7FCSL
46FCSL
407.9FCH
384.7FCSL
126.2DSGV—
347.2JOM8;00 TO 4;00
424.2FMSL
548.6FCSL
319.9FCSL
339.8FCSL
2.1FCSLIGHT
131.9TFActive
29.6FCH
533FCSL
404.5FMSL
312CL—
267.8MWL—
343.9FCH
441FCSL
13.8FCSL
131.9DAGS—
505.1FCH
57.9FCSLIGHT
18.1FCSL
505FCSL
343.9FCSL
456.6FCSL
267.8FCSL
464.4FCSL
350FCH
7FCSL
283.3FCSL
484.7FCSL
347.2FCSL
536.6FCSL
388.4FCSL
428.9FCH
353.1MGOCUT JOINTS SEALED
416.3FCH
78.5FCSL
350FCH
412.3FCSL
601.6AMH6:05AM
190.8FCH
436.4FCSL
86.3FCSL
307.9FCSL
57.9FCH
0MWM—
597FCSL
37.7FCSL

Properties (5)

additional_info
MH # 1774 ABANDONED
custom_field_three
SLIGHT FRACTURES-SLIGHT MODERATE OFFSET JOINTS
custom_field_two
3
customer
LACSD
datetime
2016-08-12T04:43:28-07:00
