Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 11, 2016, 08:26 PM

  • 29 0382_29 0381_8112016_132956.mp4

Date
08/11/2016
W/O
0579968
Weather
Very Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00537
PipeID
P24419
Time
1:26 PM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Jetting
Media Label
G7201
Sewer Name
29 21ST STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
04
Purpose
Maintenance Related
Project
20160811AM_21ST_STREET_SEWER
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0382
Downstream MH
29 0381
Dir. of Survey
Downstream
Length Surveyed
6.3 ft.
Total Length
6.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 29 0382 to 29 0381
MH: 29 0382MH: 29 0381downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:30 PM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - POST GREASE INSPECTION ONLY6.1 ft. DAE - Deposits Attached Encrustation, 20 %of cross sectional area, from 07 to 04 o'clock, , within 8 inches of joint: YES - GREASE/CALCIUM6.1 ft. MGO - General Observation - POSSIBLE UNKNOWN CONN. @ 10 O'CLOCK6.3 ft. MSA - Survey Abandoned - 20% BLOCKAGE OF CALCIUM/GREASE

Observation photos (5)

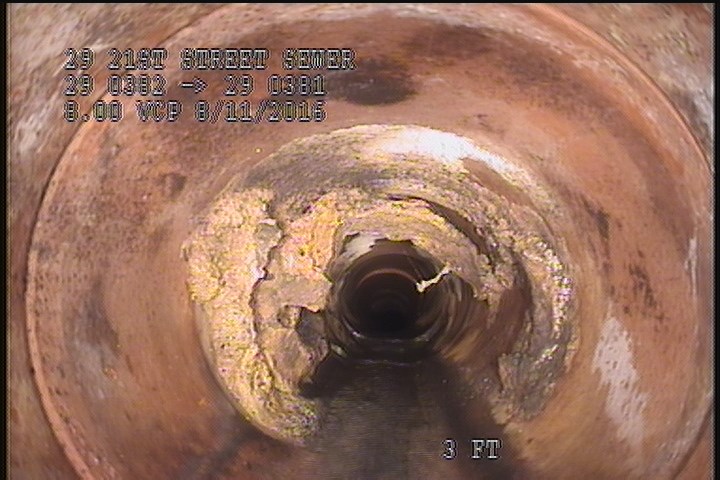

  • Upstream Manhole, Survey Begins - 1:30 PM

    0 ft. - Upstream Manhole, Survey Begins - 1:30 PM

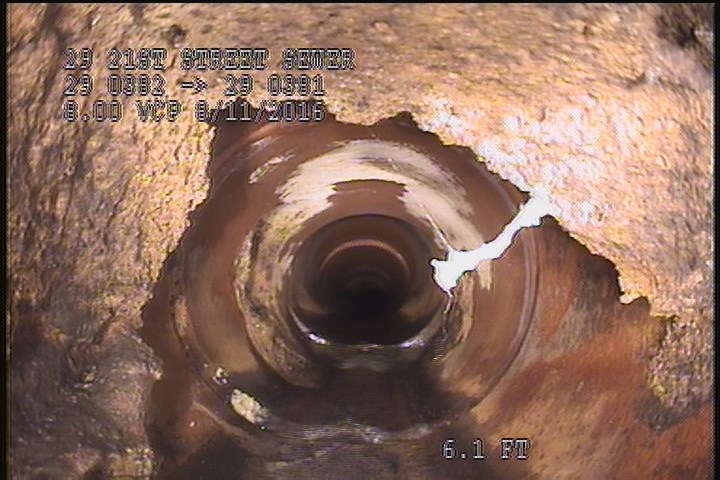

  • General Observation - POST GREASE INSPECTION ONLY

    0 ft. - General Observation - POST GREASE INSPECTION ONLY

  • Deposits Attached Encrustation, 20 %of cross sectional area, from 07 to 04 o'clock, , within 8 inches of joint: YES - GREASE/CALCIUM

    6.1 ft. - Deposits Attached Encrustation, 20 %of cross sectional area, from 07 to 04 o'clock, , within 8 inches of joint: YES - GREASE/CALCIUM

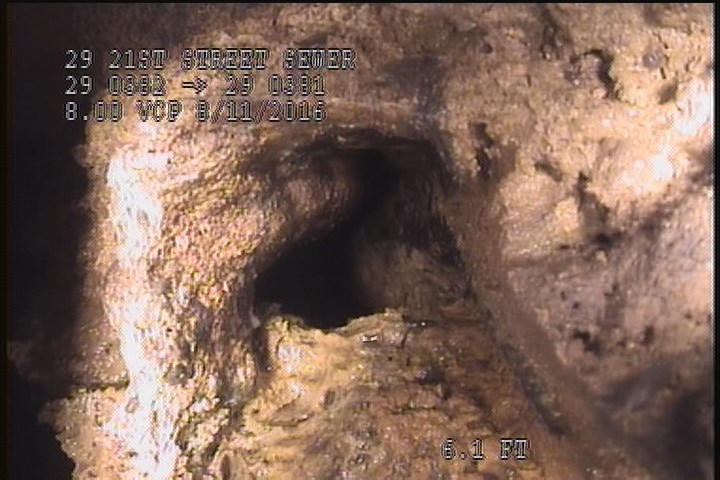

  • General Observation - POSSIBLE UNKNOWN CONN. @ 10 O'CLOCK

    6.1 ft. - General Observation - POSSIBLE UNKNOWN CONN. @ 10 O'CLOCK

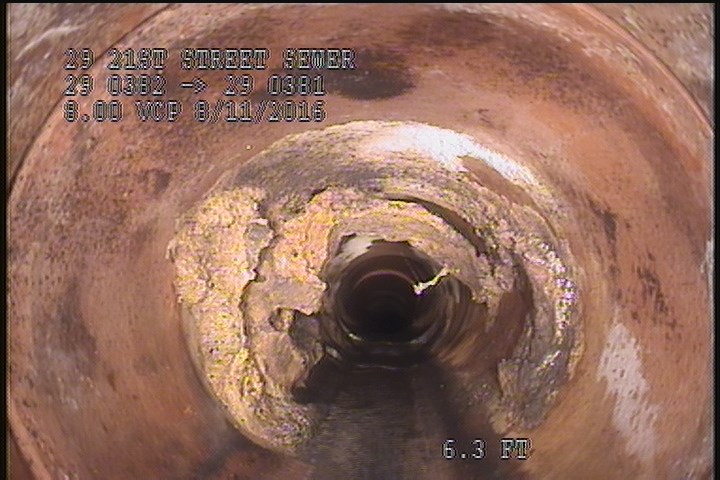

  • Survey Abandoned - 20% BLOCKAGE OF CALCIUM/GREASE

    6.3 ft. - Survey Abandoned - 20% BLOCKAGE OF CALCIUM/GREASE

All inspections of P24419Work order 0579968

Observations (6)

DistanceCodeObservation
6.1DAEGREASE/CALCIUM
0AMH1:30 PM
6.3MSA20% BLOCKAGE OF CALCIUM/GREASE
6.1MGOPOSSIBLE UNKNOWN CONN. @ 10 O'CLOCK
0MWL—
0MGOPOST GREASE INSPECTION ONLY

Properties (5)

additional_info
POST GREASE INSPECTION ONLY, JUST NEED TO CCTV APPROX. 10' D/S
custom_field_three
20% GREASE/CALCIUM
custom_field_two
5
customer
LACSD
datetime
2016-08-11T13:26:19-07:00
