Wastewater/Activity/PacpInspection/1.0Aug 9, 2016, 02:52 PM
C 0656_C 0655_892016_075841.mp4
- Date
- 08/09/2016
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00266
- PipeID
- P23922
- Time
- 7:52 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7198
- Sewer Name
- C JOINT OUTFALL C - UNIT 3F
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 15
- Purpose
- Maintenance Related
- Project
- 20160809AM_JOINT_OUTFALL_C_UNIT_3F
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 17.209999084472656 in.
- Upstream MH
- C 0655
- Downstream MH
- C 0656
- Dir. of Survey
- Upstream
- Length Surveyed
- 27.5 ft.
- Total Length
- 27.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (2)

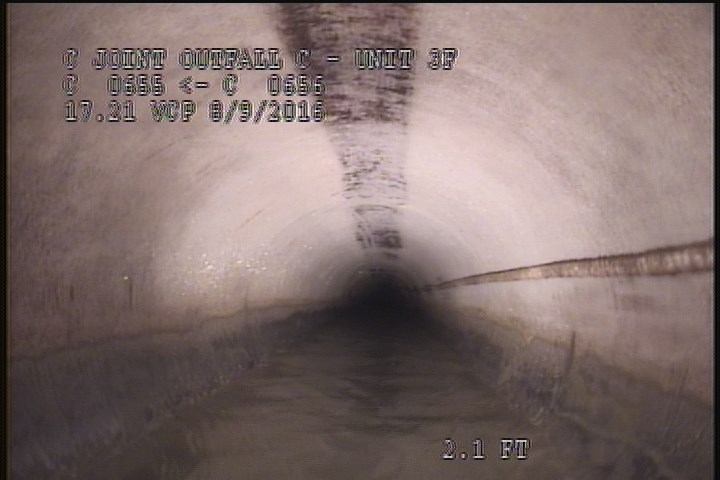

0 ft. - Downstream Manhole, Survey Begins - 7:58 AM, SINKHOLE

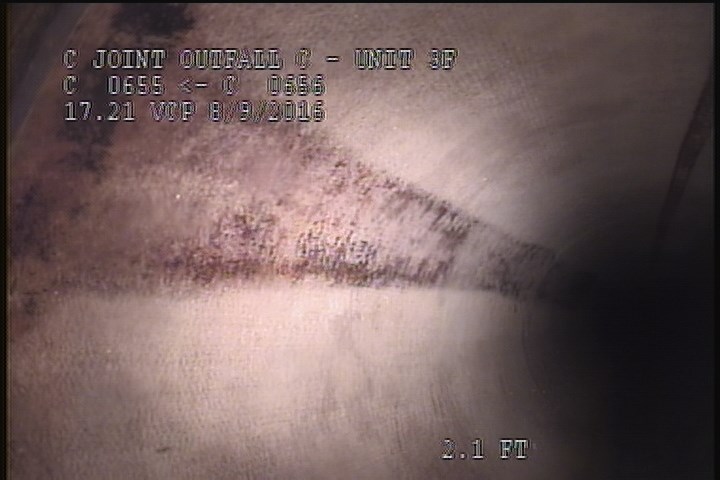

0 ft. - Water Level, 25 %of cross sectional area
Observations (3)
| Distance | Code | Observation |
|---|---|---|
| 27.5 | MSA | JUST NEEDED TO CCTV U/S APPROX 25' TO MAKE SURE PIPE IS GOOD |
| 0 | AMH | 7:58 AM, SINKHOLE |
| 0 | MWL | — |
Properties (6)
- additional_info
- SINKHOLE APPROX. 3' U/S OF MH. C 655
- custom_field_three
- EMERGENCY
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-08-09T07:52:46-07:00
- year_laid
- 20020814
