Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 5, 2016, 10:57 AM

  • 29 0481_29480_852016_040941.mp4

Date
08/05/2016
W/O
0579988
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00789
PipeID
P24527
Time
3:57 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0221
Sewer Name
29 CHERRY AVENUE TRUNK
City
SIGNAL HILL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
20160805MDM_CHERRY_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0481
Downstream MH
29 480
Dir. of Survey
Downstream
Length Surveyed
361.1 ft.
Total Length
361.1 ft.
Structural Index
2
Structural Quick
433C
Structural Rating
153
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
155
Pipe schematic from manhole 29 0481 to 29 480
MH: 29 0481MH: 29 480downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM0.5 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE11.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped13.6 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H20.3 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H30.4 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H37.5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H47.7 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H57.7 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - SL61.5 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL62 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped63.9 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H63.9 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H67.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H77.3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H91 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H94.6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL101.2 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H104.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SL104.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL108.1 ft. FC - Fracture Circumferential, from 08 to 03 o'clock, within 8 inches of joint: YES - SL109.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped144.9 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - H151.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL151.6 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H154.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL158.4 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H158.4 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL159.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped198.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H201.9 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - SL205.3 ft. FC - Fracture Circumferential, from 04 to 08 o'clock, within 8 inches of joint: YES - SLIGHT205.6 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SLIGHT205.6 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H208.6 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL209.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open211.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL211.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL211.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL211.2 ft. FL - Fracture Longitudinal, at 06 o'clock, within 8 inches of joint: YES - H221.3 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H241.8 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H245.5 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL245.5 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H245.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL248.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL248.7 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H258.8 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL258.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H263.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open271.6 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - SL271.6 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SL278.3 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H278.3 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SL289.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL292 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT292 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H293.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT298.9 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H302.2 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H302.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT303.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped304.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SL304.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL323.7 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H327 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT332.7 ft. MMC - Material Change, Other (state in comments) - LINER332.8 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - SLUDGE345.1 ft. FM - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT345.1 ft. FM - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT345.1 ft. MMC - Material Change, Vitrified clay pipe345.1 ft. FM - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT345.9 ft. FC - Fracture Circumferential, from 03 to 06 o'clock, within 8 inches of joint: YES - MODERATE348.2 ft. FM - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES, Finish - SLIGHT361.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

Observation photos (6)

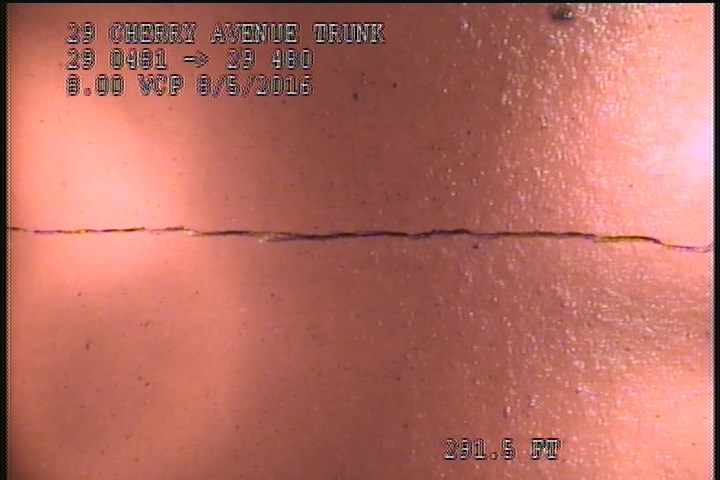

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

    289.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SL

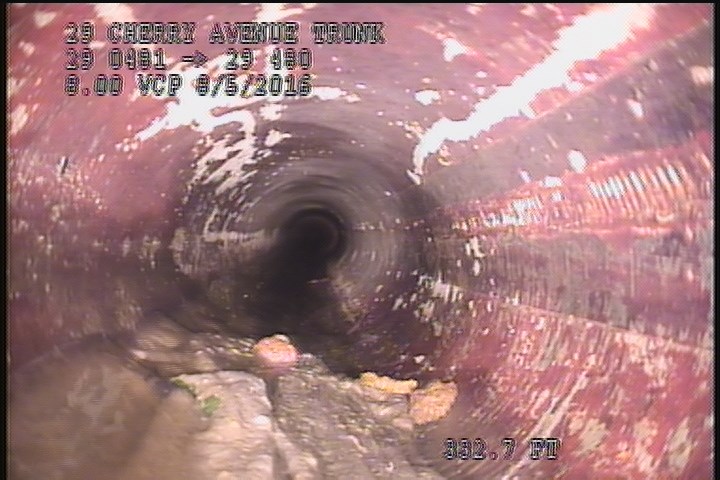

  • Material Change, Other (state in comments) - LINER

    332.7 ft. - Material Change, Other (state in comments) - LINER

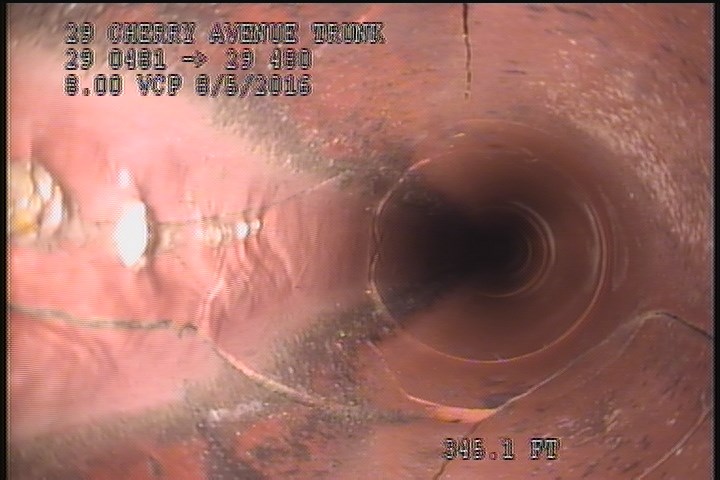

  • Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    345.1 ft. - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES, Start - SLIGHT

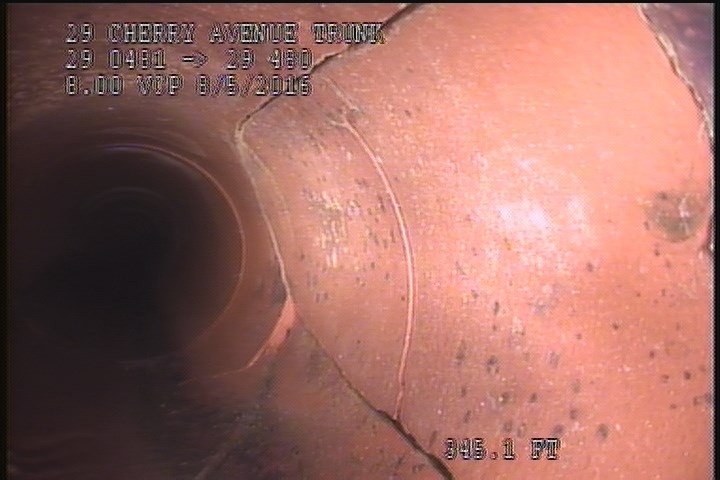

  • Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

    345.1 ft. - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

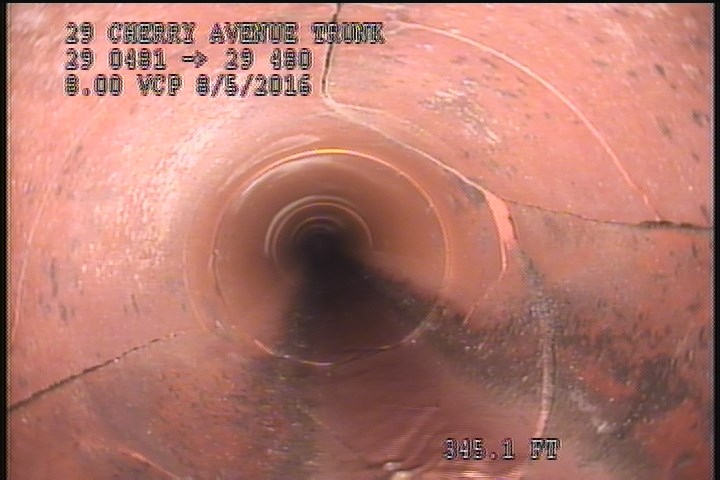

  • Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

    345.1 ft. - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

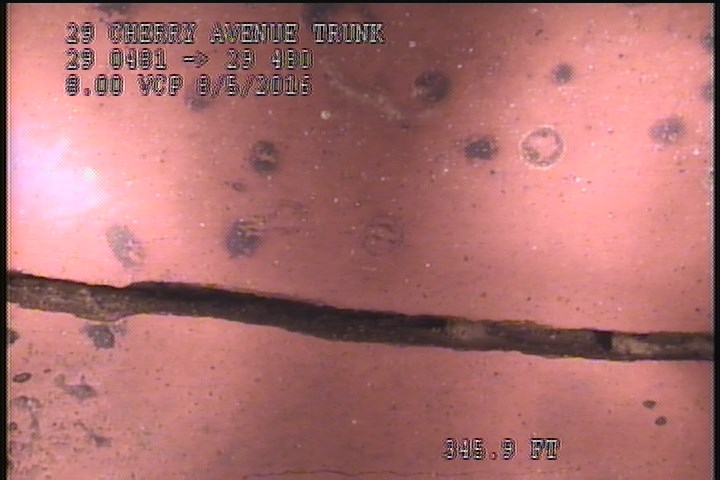

  • Fracture Circumferential, from 03 to 06 o'clock, within 8 inches of joint: YES - MODERATE

    345.9 ft. - Fracture Circumferential, from 03 to 06 o'clock, within 8 inches of joint: YES - MODERATE

All inspections of P24527Work order 0579988

Observations (78)

DistanceCodeObservation
0MWL—
271.6FCSL
30.4FLH
108.1FCSL
20.3FCH
144.9FLH
198.6FLH
205.6FCSLIGHT
292FCSLIGHT
258.8FLSL
302.2FCH
211.2FCSL
0.5FCSLIGHT
289.4FLSL
304.8FLSL
57.7FCSL
159.3TFCCapped
278.3FCH
91FCH
151.6FLSL
211.2FCSL
61.5FCSL
37.5FLH
154.9FLSL
104.6FCSL
94.6FLSL
303.3TFCCapped
245.5FCSL
332.8DSZSLUDGE
101.2FCH
304.8FCSL
345.9FCMODERATE
67.1FLH
201.9FCSL
0MWM—
278.3FCSL
211.2FLSL
293.5FLSLIGHT
345.1FMSLIGHT
151.6FCH
332.7MMCLINER
298.9FCH
245.5FCH
211.2FLH
77.3FCH
263.2TFOpen
258.8FLH
345.1FMSLIGHT
345.1MMC—
208.6FCSL
345.1FMSLIGHT
0AMH4:00AM
158.4FCH
11.8TFCCapped
323.7FCH
221.3FCH
47.7FLH
361.1FCSLIGHT
63.9FCH
109.1TFCCapped
63.9FLH
158.4FCSL
248.7FLSL
327FCSLIGHT
205.6FCH
271.6FLSL
245.5FLSL
7FCHAIRLINE
205.3FCSLIGHT
209.6TFOpen
302.2FCSLIGHT
292FLH
241.8FLH
104.6FCSL
248.7FCH
348.2FMSLIGHT
62TFCCapped
13.6FCH

Properties (4)

custom_field_three
MULTIPLE SLIGHT JOINT TO JOINT-MODERATE CIRCUM
custom_field_two
2
customer
LACSD
datetime
2016-08-05T03:57:19-07:00
