Wastewater/Activity/PacpInspection/1.0Aug 5, 2016, 07:52 AM
29 0482_29 0481_852016_022145.mp4
- Date
- 08/05/2016
- W/O
- 0579988
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00789
- PipeID
- P24528
- Time
- 12:52 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0221
- Sewer Name
- 29 CHERRY AVENUE TRUNK
- City
- SIGNAL HIHH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20160805MDM_CHERRY_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0482
- Downstream MH
- 29 0481
- Dir. of Survey
- Downstream
- Length Surveyed
- 30.4 ft.
- Total Length
- 30.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

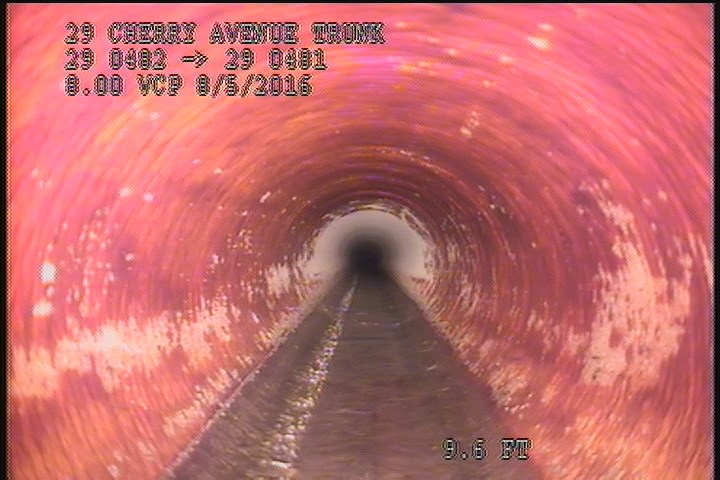

2 ft. - General Observation - PIPE HAS A LINER

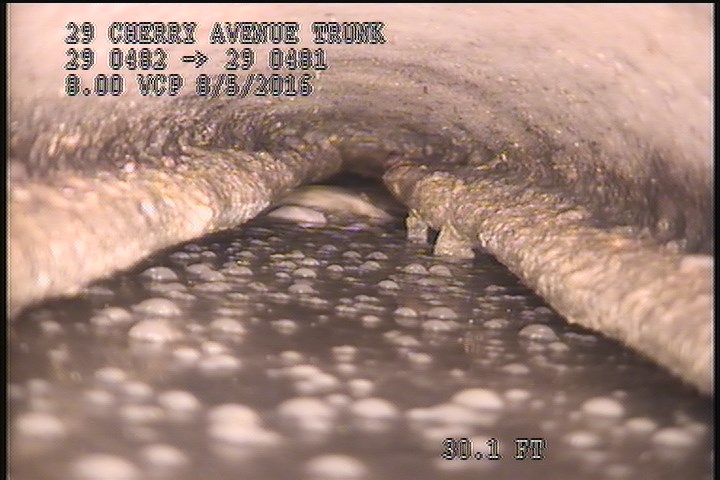

30.1 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES

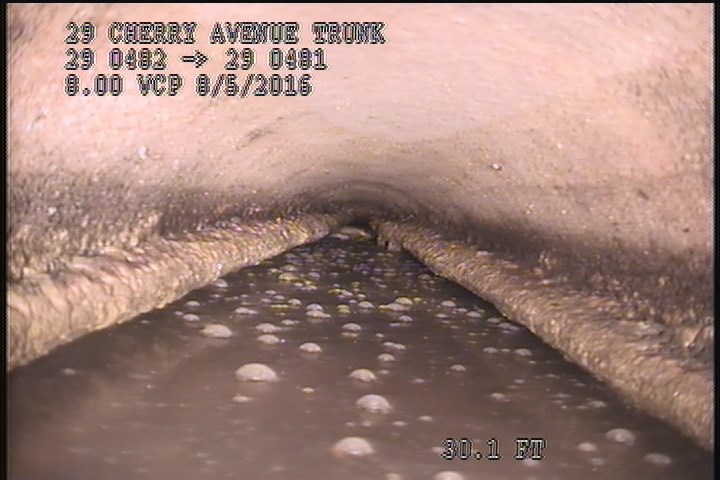

30.4 ft. - Survey Abandoned - SIPHON EFFECT IN LINE
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 2:10AM |
| 0 | MWM | — |
| 30.4 | MSA | SIPHON EFFECT IN LINE |
| 30.1 | DAGS | — |
| 0 | MWL | — |
| 2 | MGO | PIPE HAS A LINER |
Properties (4)
- custom_field_three
- SIPHON EFFECT IN LINE-LINER
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-08-05T00:52:56-07:00
