Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 10:31 AM

  • 18 0929_18 0928_832016_050215.mp4

Date
08/03/2016
W/O
0580150
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00700
PipeID
P14777
Time
3:31 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0218
Sewer Name
18 SCOTT AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Capital Improvement Program Assesment
Project
20160803MDM_SCOTT_AENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
18 0929
Downstream MH
18 0928
Dir. of Survey
Downstream
Length Surveyed
350.7 ft.
Total Length
350.7 ft.
Structural Index
2
Structural Quick
5132
Structural Rating
53
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
53
Pipe schematic from manhole 18 0929 to 18 0928
MH: 18 0929MH: 18 0928downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:45AM0 ft. MGO - General Observation - HAD TO SETUP AT MH#930 TRAFFIC PROBLEMS0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped4.6 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE8.8 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - HAIRLINE8.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT9.3 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL25.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped28 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped32.5 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 6" - Open39.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H39.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL62.9 ft. MGO - General Observation - 10" VCP72.5 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - H73.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open76.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open102.1 ft. FC - Fracture Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES - H124.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 6" - Open126.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open131.6 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SL131.6 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H131.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H175 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open177.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open209.7 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - H226.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open227.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H227.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H228.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open260.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL260.7 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H270 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H270 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT277 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped279.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open324.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open327.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open329.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H335.2 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H340.4 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H341.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT345.2 ft. HSV - Hole Soil Visible, at 10 o'clock, within 8 inches of joint: YES - 1" X1"346.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open347.2 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H350.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped350.7 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (2)

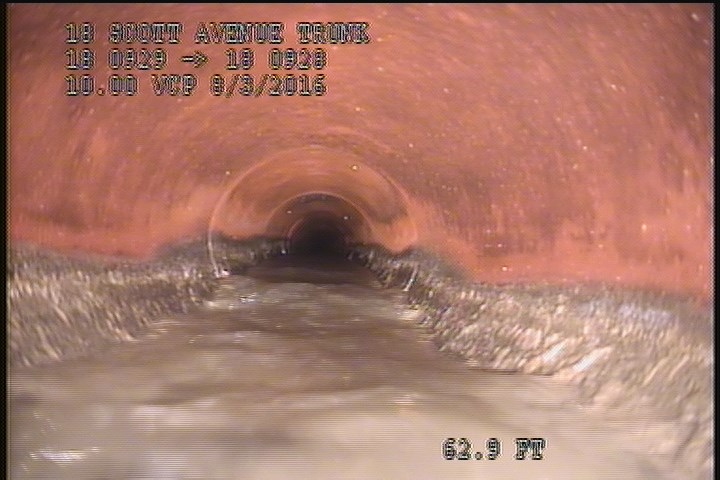

  • General Observation - 10" VCP

    62.9 ft. - General Observation - 10" VCP

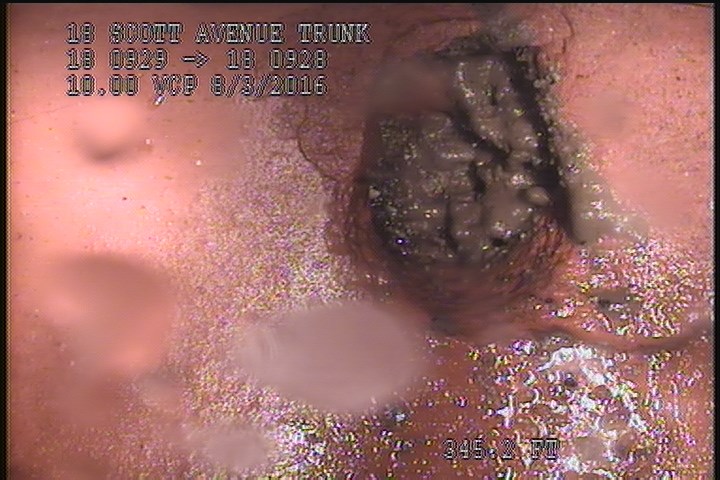

  • Hole Soil Visible, at 10 o'clock, within 8 inches of joint: YES - 1" X1"

    345.2 ft. - Hole Soil Visible, at 10 o'clock, within 8 inches of joint: YES - 1" X1"

All inspections of P14777Work order 0580150

Observations (48)

DistanceCodeObservation
227.9FCH
226.2TFOpen
346.3TBOpen
73.5TFOpen
8.8FLHAIRLINE
8.8FCSLIGHT
340.4FCH
347.2FCH
324.8TFOpen
124.2TFOpen
131.6FCSL
279.7TFOpen
9.3FCSL
345.2HSV1" X1"
270FCH
227.9FLH
39.1FCH
102.1FCH
341.1FCSLIGHT
76.1TFOpen
277TFCCapped
25.7TFCCapped
4.6FCHAIRLINE
39.1FCSL
32.5TFOpen
350.3MGOConn. @ Mh, 9 O' Clock. Capped
131.6FCH
72.5FCH
175TFOpen
329.1FCH
350.7AMH5:40AM
126.8TFOpen
228.7TFOpen
260.7FCSL
327.7TFOpen
0AMH4:45AM
0MGOHAD TO SETUP AT MH#930 TRAFFIC PROBLEMS
177.6TFOpen
260.7FCH
28TFCCapped
209.7FCH
0MWM—
335.2FCH
270FCSLIGHT
62.9MGO10" VCP
0MWL—
131.6FCH
0MGOConn. @ Mh, 9 O' Clock. Capped
