Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 3, 2016, 07:50 AM
Date
08/03/2016
W/O
0579961
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00597
PipeID
P12323
Time
12:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0216
Sewer Name
15 ARROYO DRIVE TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
31
Purpose
Capital Improvement Program Assesment
Project
20160801MDM_ARROYO_DRIVE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
15 0400
Downstream MH
15 0399
Dir. of Survey
Downstream
Length Surveyed
92.4 ft.
Total Length
255.6 ft.
Structural Index
3
Structural Quick
5232
Structural Rating
38
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
40
Pipe schematic from manhole 15 0400 to 15 0399
MH: 15 0400MH: 15 0399downstream163.2 ft. MWM - Water Mark, 20 %of cross sectional area163.2 ft. MGO - General Observation - WATER LEVEL 20%163.2 ft. AMH - Upstream Manhole, Survey Begins(FRIST 163' ON CLIP #1) - 12:50AM(FRIST 163' ON CLIP #1)163.4 ft. MGO - General Observation - LINK PIPE BEGINES164.3 ft. MGO - General Observation - LINK PIPE166.7 ft. MGO - General Observation - LIK PIPE END166.7 ft. RFB - Roots Fine Barrell, from 09 to 12 o'clock, within 8 inches of joint: YES - 4%168.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped170.4 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE170.4 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE173.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H187.3 ft. MGO - General Observation - 10" VCP190.5 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H193.9 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H193.9 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT204.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped214.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped226 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SLIGHT226 ft. FC - Fracture Circumferential, from 11 to 04 o'clock, within 8 inches of joint: YES - H236 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SLIGHT236 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H239.4 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT239.7 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H246.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped248.6 ft. B - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - INDENTD-MODERATE CIRCUM FRACTURE248.6 ft. B - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - INDENTED - MODERATE CIRCUM FRACTURE252.1 ft. FS - Fracture Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE255.6 ft. AMH - Downstream Manhole, Survey Ends - 1:50AM

Observation photos (6)

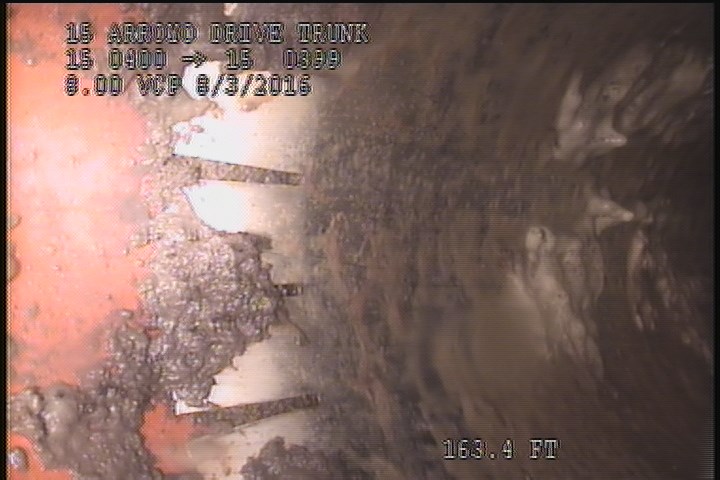

  • General Observation - LINK PIPE BEGINES

    163.4 ft. - General Observation - LINK PIPE BEGINES

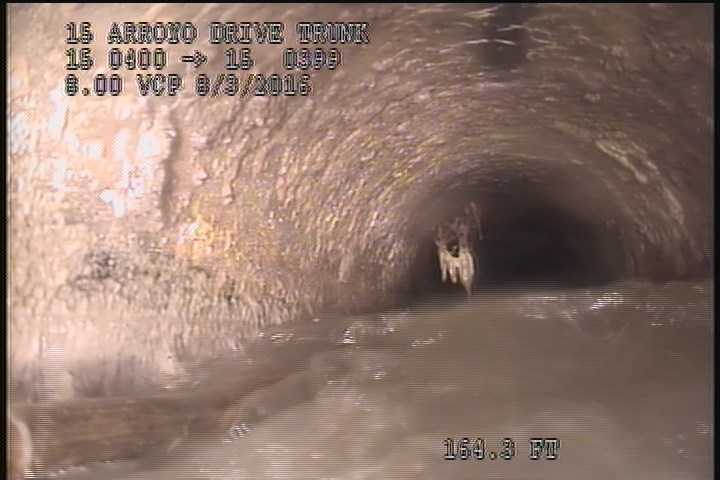

  • General Observation - LINK PIPE

    164.3 ft. - General Observation - LINK PIPE

  • General Observation - LIK PIPE END

    166.7 ft. - General Observation - LIK PIPE END

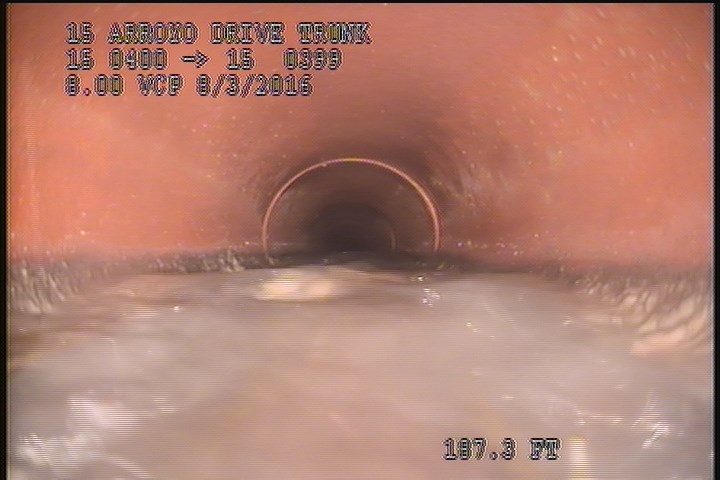

  • General Observation - 10" VCP

    187.3 ft. - General Observation - 10" VCP

  • Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - INDENTD-MODERATE CIRCUM FRACTURE

    248.6 ft. - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - INDENTD-MODERATE CIRCUM FRACTURE

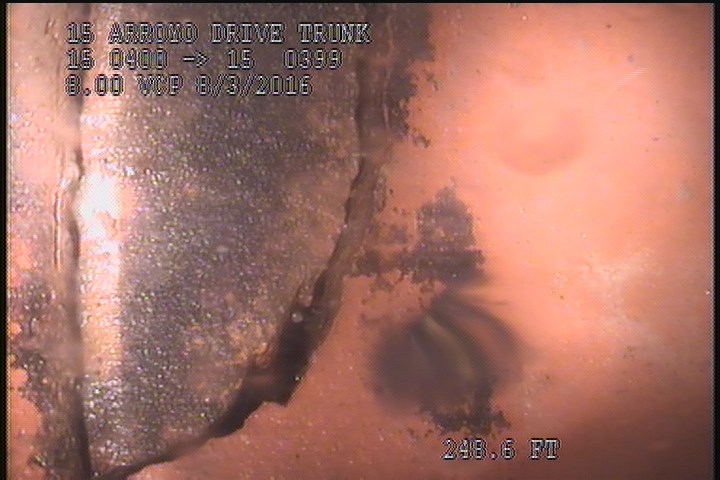

  • Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - INDENTED - MODERATE CIRCUM FRACTURE

    248.6 ft. - Broken, from 08 to 10 o'clock, within 8 inches of joint: YES - INDENTED - MODERATE CIRCUM FRACTURE

All inspections of P12323Work order 0579961

Observations (28)

DistanceCodeObservation
236FCSLIGHT
246.8TFCCapped
190.5FCH
226FCSLIGHT
164.3MGOLINK PIPE
255.6AMH1:50AM
163.2MWM—
166.7MGOLIK PIPE END
163.2MGOWATER LEVEL 20%
163.2AMH12:50AM(FRIST 163' ON CLIP #1)
187.3MGO10" VCP
214.1TFCCapped
239.7FCH
204.8TFCCapped
193.9FCH
239.4FCSLIGHT
170.4FLHAIRLINE
170.4FCHAIRLINE
166.7RFB4%
168.6TFCCapped
248.6BINDENTD-MODERATE CIRCUM FRACTURE
193.9FCSLIGHT
163.4MGOLINK PIPE BEGINES
173.7FCH
248.6BINDENTED - MODERATE CIRCUM FRACTURE
252.1FSHAIRLINE
226FCH
236FCH

Properties (5)

additional_info
BEGINNING OF REACH CLIP#1
custom_field_three
BROKEN PIPE
custom_field_two
2
customer
LACSD
datetime
2016-08-03T00:50:00-07:00
