Wastewater/Activity/PacpInspection/1.0Aug 1, 2016, 09:46 AM
15 0392A_15 0923_812016_053802.mp4
- Date
- 08/01/2016
- W/O
- 0579961
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00597
- PipeID
- P12315
- Time
- 2:46 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0216
- Sewer Name
- 15 ARROYO DRIVE TRUNK
- City
- MONTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 31
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160801MDM_ARROYO_DRIVE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 15 0392A
- Downstream MH
- 15 0923
- Dir. of Survey
- Downstream
- Length Surveyed
- 377.1 ft.
- Total Length
- 377.1 ft.
- Structural Index
- 2
- Structural Quick
- 2311
- Structural Rating
- 7
- O&M Index
- 3
- O&M Quick
- 3221
- O&M Rating
- 8
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (5)

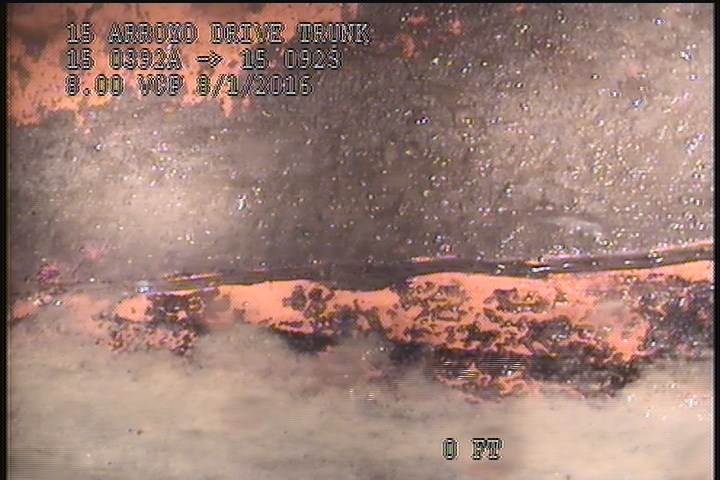

2 ft. - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

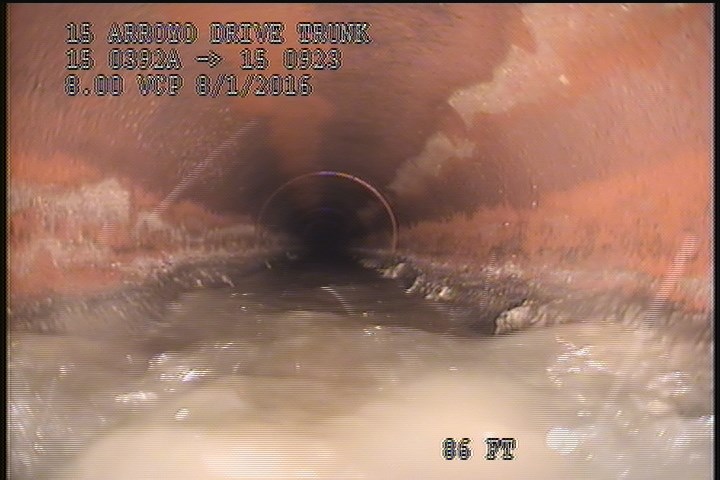

86 ft. - General Observation - 8" VCP

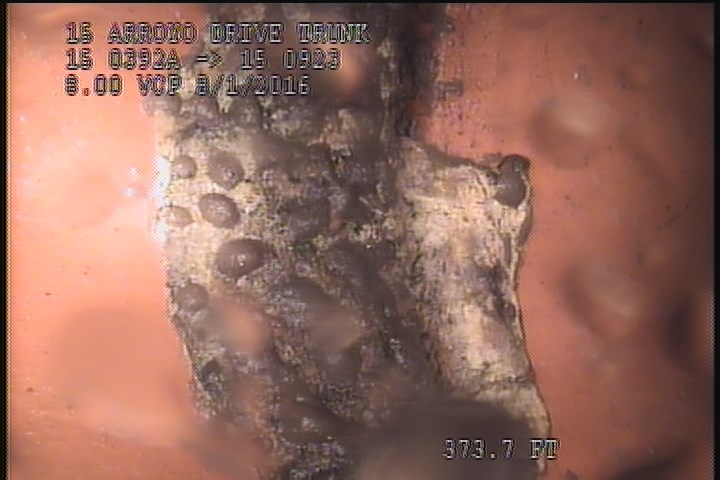

373.7 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES

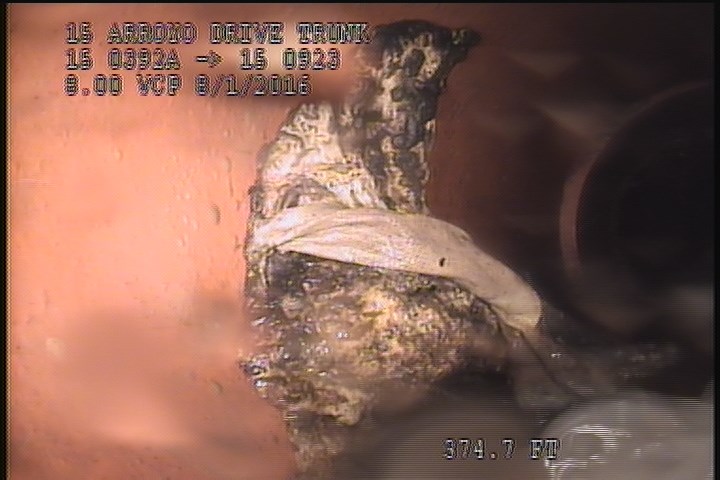

374.7 ft. - Deposits Attached Encrustation, 15 %of cross sectional area, from 08 to 11 o'clock, , within 8 inches of joint: YES

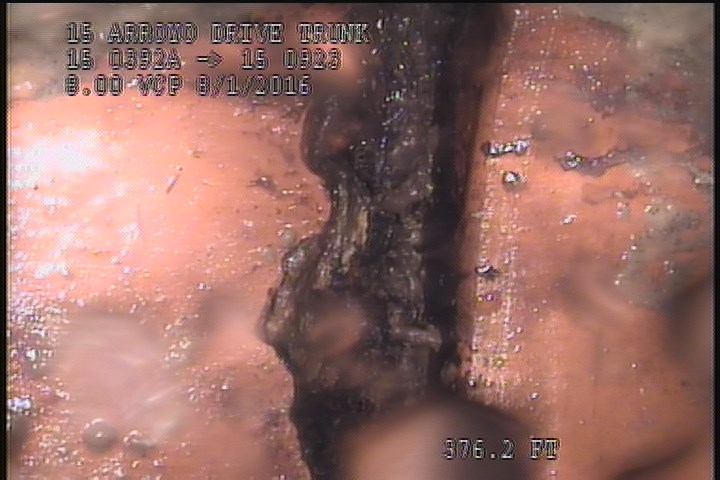

376.2 ft. - Joint Separated Medium
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 376.2 | JSM | — |
| 4 | RMJ | — |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 2.2 | FC | SLIGHT |
| 86 | MGO | 8" VCP |
| 333.8 | FC | SLIGHT |
| 377.1 | AMH | 6:10AM |
| 2 | FC | SLIGHT |
| 0 | MWM | — |
| 373.7 | DAE | — |
| 374.7 | DAE | — |
| 0 | AMH | 5:35AM |
| 0 | MWL | — |
Properties (4)
- custom_field_three
- SLIGHT FRACTURES
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-08-01T02:46:42-07:00
