Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2016, 09:39 AM

  • 15 0400_15 0399_812016_035024.mp4

Date
08/01/2016
W/O
0579961
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00597
PipeID
P12323
Time
2:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0216
Sewer Name
15 ARROYO DRIVE TRUNK
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
31
Purpose
Capital Improvement Program Assesment
Project
20160801MDM_ARROYO_DRIVE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
15 0400
Downstream MH
15 0399
Dir. of Survey
Downstream
Length Surveyed
167.1 ft.
Total Length
167.1 ft.
Structural Index
3
Structural Quick
5233
Structural Rating
41
O&M Index
2
O&M Quick
3121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole 15 0400 to 15 0399
MH: 15 0400MH: 15 0399downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:55AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped12.5 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE39.5 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT47.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped56.5 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped58 ft. FC - Fracture Circumferential, from 01 to 02 o'clock, within 8 inches of joint: YES - H58.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SLIGHT68.2 ft. MGO - General Observation - 8" VCP78.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H78.4 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H88.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H92 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H92 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H95.3 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - H105.6 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - H106.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped108.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - H112.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped121 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - H127.4 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H127.4 ft. RMJ - Roots Medium Joint, from 07 to 02 o'clock, 10 %, within 8 inches of joint: YESR154.7 ft. B - Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-MODERATE CIRCUM FRACTURE154.7 ft. B - Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-MODERATE CIRCUM-POSSIBLE SOIL VISIBLE154.7 ft. RFJ - Roots Fine Joint, from 07 to 11 o'clock, within 8 inches of joint: YESR - 4%159 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped163.2 ft. MGO - General Observation - LINK PIPE START163.7 ft. MGP - General Photograph - LINK PIPE167.1 ft. MSA - Survey Abandoned - CAMERA NOT PASS LINK PIPE

Observation photos (6)

  • General Observation - 8" VCP

    68.2 ft. - General Observation - 8" VCP

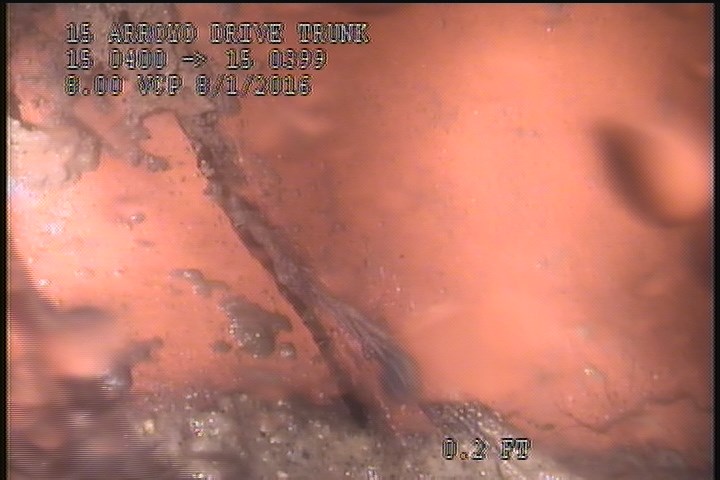

  • Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-MODERATE CIRCUM FRACTURE

    154.7 ft. - Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-MODERATE CIRCUM FRACTURE

  • Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-MODERATE CIRCUM-POSSIBLE SOIL VISIBLE

    154.7 ft. - Broken, from 07 to 11 o'clock, within 8 inches of joint: YES - INDENTED-MODERATE CIRCUM-POSSIBLE SOIL VISIBLE

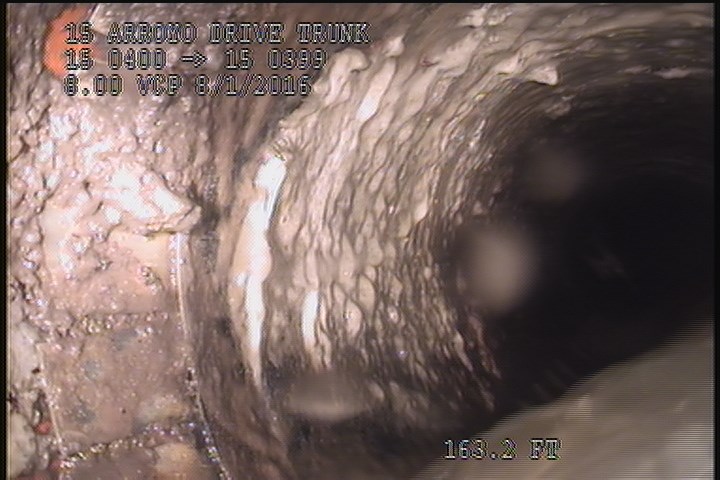

  • General Observation - LINK PIPE START

    163.2 ft. - General Observation - LINK PIPE START

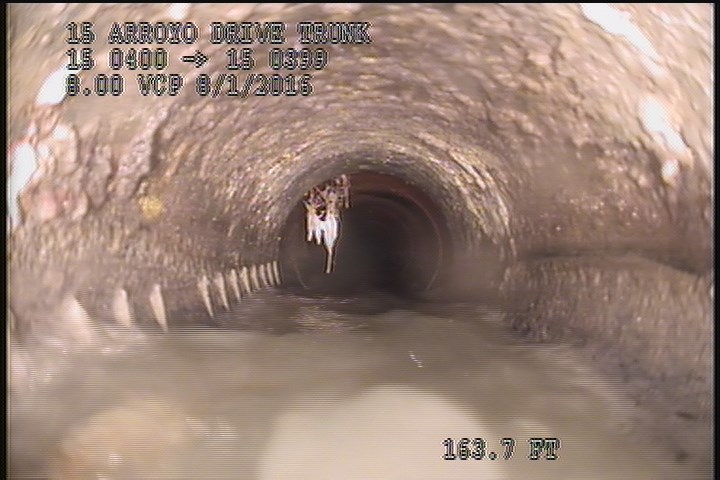

  • General Photograph - LINK PIPE

    163.7 ft. - General Photograph - LINK PIPE

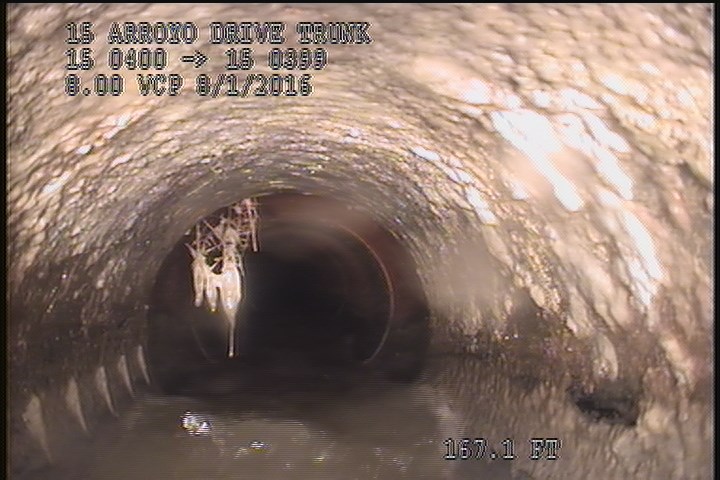

  • Survey Abandoned - CAMERA NOT PASS LINK PIPE

    167.1 ft. - Survey Abandoned - CAMERA NOT PASS LINK PIPE

All inspections of P12323Work order 0579961

Observations (32)

DistanceCodeObservation
106.3TFCCapped
88.6FCH
0MWM—
68.2MGO8" VCP
154.7BINDENTED-MODERATE CIRCUM FRACTURE
39.5FCSLIGHT
95.3FCH
56.5TBCCapped
154.7BINDENTED-MODERATE CIRCUM-POSSIBLE SOIL VISIBLE
78.4FLH
127.4FCH
154.7RFJ4%
0AMH3:55AM
8TFCCapped
121FCH
0MGOConn. @ Mh, 3 O' Clock. Active
159TFCCapped
92FCH
105.6FLH
127.4RMJ—
12.5FCHAIRLINE
0MWL—
167.1MSACAMERA NOT PASS LINK PIPE
108.1FCH
47.1TFCCapped
112.1TFCCapped
58.2FLSLIGHT
163.7MGPLINK PIPE
58FCH
163.2MGOLINK PIPE START
78.4FCH
92FCH

Properties (5)

additional_info
REACH COMPLETED ON SKIDS CLIP #4
custom_field_three
BROKEN PIPE
custom_field_two
2
customer
LACSD
datetime
2016-08-01T02:39:13-07:00
