Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 28, 2016, 09:48 AM

  • 19 0267_19 0266_7282016_033028.mp4

Date
07/28/2016
W/O
0580155
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00733
PipeID
P15237
Time
2:48 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0209
Sewer Name
19 219TH STREET TRUNK
City
HAWAIIAN GARDENS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
06
Purpose
Capital Improvement Program Assesment
Project
20160727MDM_219TH_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
19 0267
Downstream MH
19 0266
Dir. of Survey
Downstream
Length Surveyed
269.8 ft.
Total Length
269.8 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
12
O&M Index
4
O&M Quick
4200
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 19 0267 to 19 0266
MH: 19 0267MH: 19 0266downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 3:30AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active8.4 ft. MGO - General Observation - 12" VCP67.2 ft. MWL - Water Level, 40 %of cross sectional area127.9 ft. MWM - Water Mark, 20 %of cross sectional area146.8 ft. MGO - General Observation - SLIGHT DROP IN GRADE146.8 ft. MWL - Water Level, 5 %of cross sectional area159.8 ft. MWM - Water Mark, 30 %of cross sectional area193.3 ft. B - Broken, from 01 to 05 o'clock, within 8 inches of joint: YES - SLIGHT FRACTURE-INDENTED231.2 ft. MWM - Water Mark, 70 %of cross sectional area - OLD MARK237.7 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT262.3 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT262.7 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - HAIRLINE269.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active269.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active269.8 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (3)

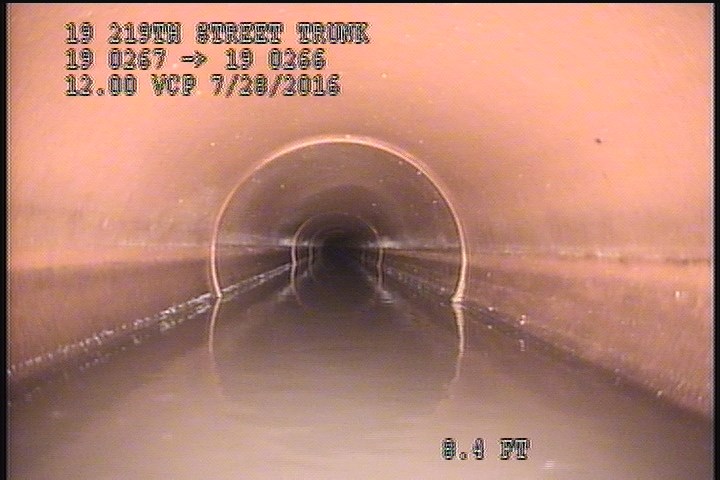

  • General Observation - 12" VCP

    8.4 ft. - General Observation - 12" VCP

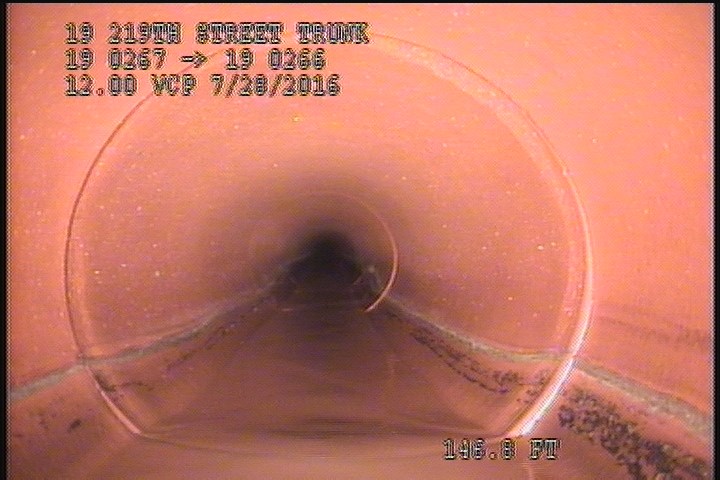

  • Water Mark, 20 %of cross sectional area

    127.9 ft. - Water Mark, 20 %of cross sectional area

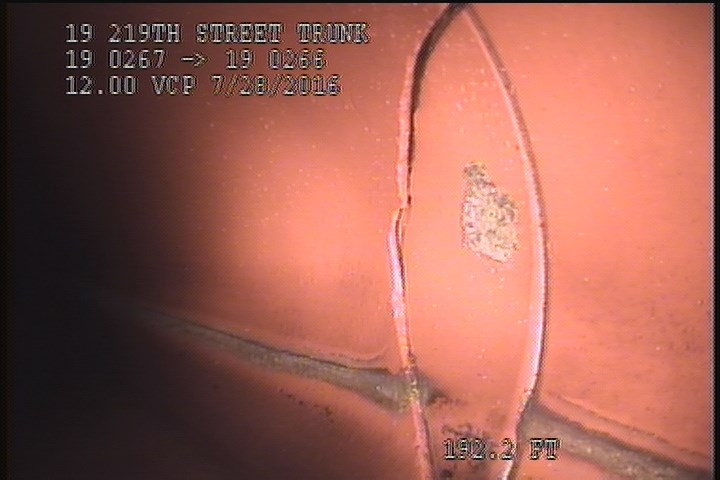

  • Broken, from 01 to 05 o'clock, within 8 inches of joint: YES - SLIGHT FRACTURE-INDENTED

    193.3 ft. - Broken, from 01 to 05 o'clock, within 8 inches of joint: YES - SLIGHT FRACTURE-INDENTED

All inspections of P15237Work order 0580155

Observations (19)

DistanceCodeObservation
0MGOConn. @ Mh, 3 O' Clock. Active
262.7FLHAIRLINE
237.7FCSLIGHT
146.8MGOSLIGHT DROP IN GRADE
0AMH3:30AM
262.3FCSLIGHT
269.3MGOConn. @ Mh, 9 O' Clock. Active
8.4MGO12" VCP
159.8MWM—
0MWM—
146.8MWL—
67.2MWL—
231.2MWMOLD MARK
0MWL—
269.3MGOConn. @ Mh, 3 O' Clock. Active
193.3BSLIGHT FRACTURE-INDENTED
0MGOConn. @ Mh, 9 O' Clock. Active
269.8AMH4:15AM
127.9MWM—

Properties (4)

custom_field_three
BROKEN PIPE =SLIGHT FRACTURE
custom_field_two
2
customer
LACSD
datetime
2016-07-28T02:48:59-07:00
