Wastewater/Activity/PacpInspection/1.0Jul 26, 2016, 07:45 AM
02 2138_02 2137_7262016_010207.mp4
- Date
- 07/26/2016
- W/O
- 0587375
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00284
- PipeID
- P04412
- Time
- 12:45 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0205
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTION 3
- City
- M0NTEBELLO
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 14
- Purpose
- Maintenance Related
- Project
- 20160726MDM_MONTEBELLO_INTERCEPTOR_TRUNK_SECTION_3
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- 02 2138
- Downstream MH
- 02 2137
- Dir. of Survey
- Downstream
- Length Surveyed
- 123.4 ft.
- Total Length
- 123.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (5)

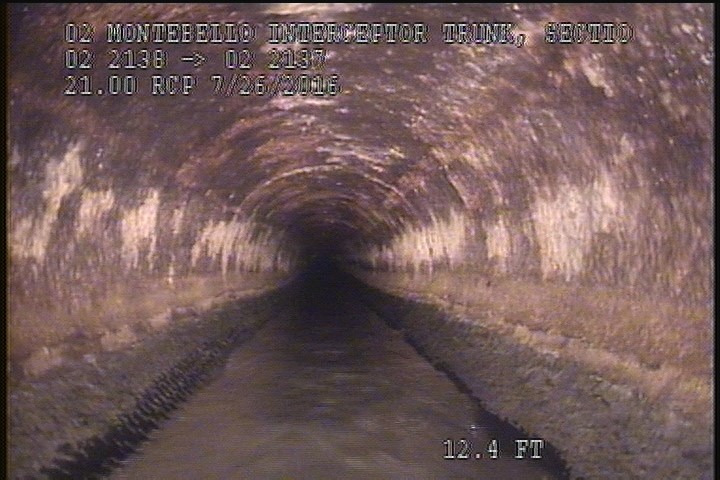

0 ft. - Water Level, 10 %of cross sectional area

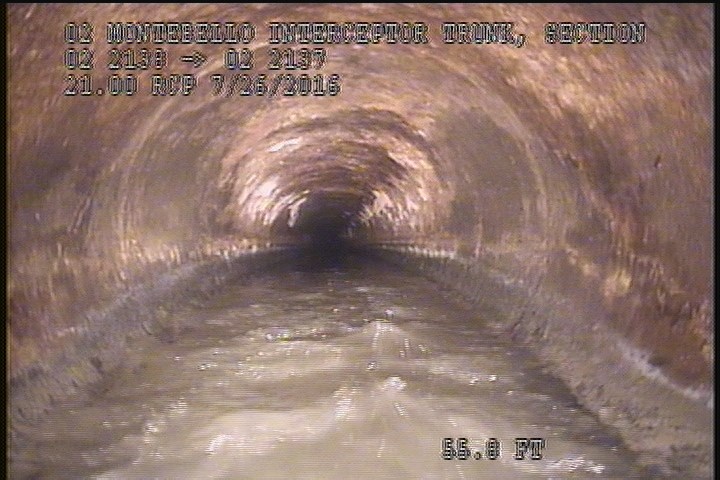

55.7 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Start

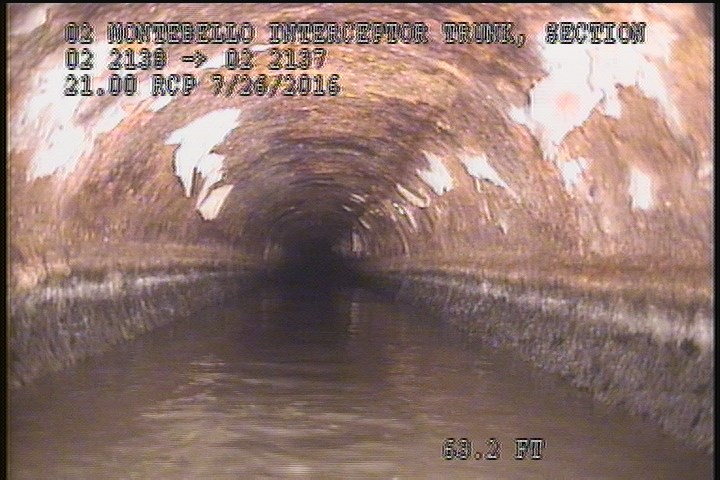

58.6 ft. - Water Mark, 35 %of cross sectional area

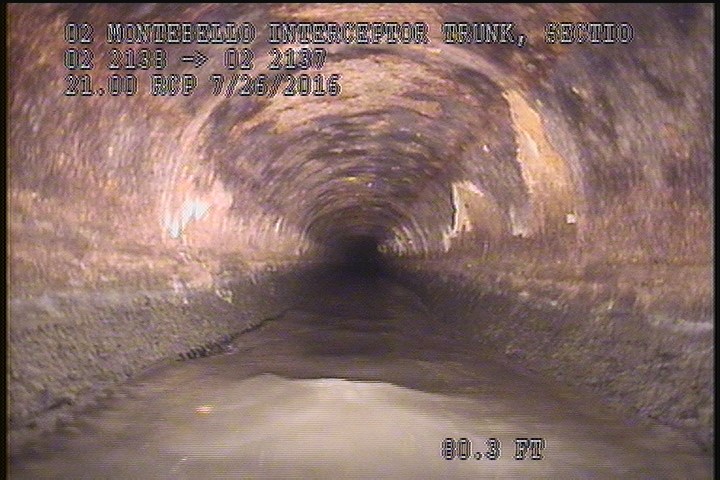

80.3 ft. - General Observation - 21" RCP

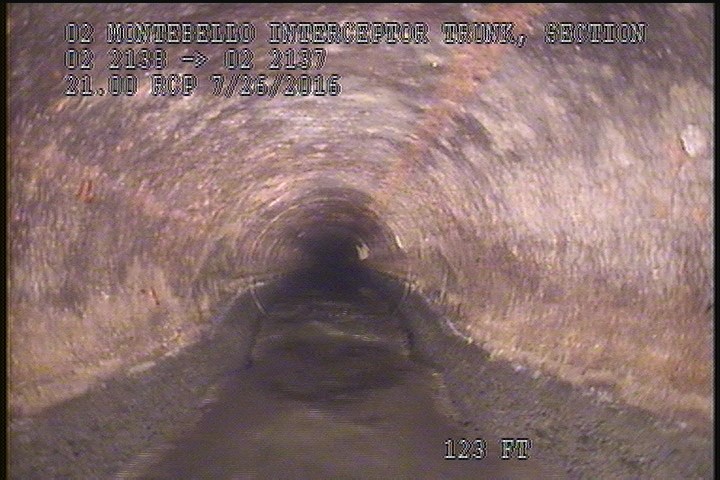

123 ft. - General Observation - DROP IN GRADE
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 80.3 | MGO | 21" RCP |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | SECOND SINKHOLE AREA AT 105' |
| 58.6 | MWL | — |
| 55.7 | MWLS | — |
| 0 | AMH | 12:45AM |
| 123.4 | MSA | 1:10AM END OF SINKHOLE AREA |
| 86.6 | MWL | — |
| 123 | MGO | DROP IN GRADE |
| 80.1 | MWLS | — |
| 0 | MGO | SINKHOLE STARTS AT 50' DOWNSTREAM-20' LONG |
| 86.6 | MWM | — |
| 58.6 | MWM | — |
Properties (3)
- customer
- LACSD
- datetime
- 2016-07-26T00:45:26-07:00
- year_laid
- 19830810
