Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 27, 2016, 08:13 AM

  • 08 0133_08 0660_7272016_011724.mp4

Date
07/27/2016
W/O
0574374
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00006
PipeID
P24647
Time
1:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0207
Sewer Name
08 FIGUEROA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
01
Purpose
Routine Assessment
Project
20160723MDM_FIGUEROA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0133
Downstream MH
08 0660
Dir. of Survey
Downstream
Length Surveyed
36.7 ft.
Total Length
36.7 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 08 0133 to 08 0660
MH: 08 0133MH: 08 0660downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MGO - General Observation - HOT OILY FLOW2 ft. DAGS - Deposits Attached Grease, 3 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - HAIRLINE6 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE11.5 ft. MGO - General Observation - 12" VCP36.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active LARGE OUTGOING36.2 ft. DAGS - Deposits Attached Grease, 3%of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish36.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active LARGE INCOMING36.7 ft. AMH - Downstream Manhole, Survey Ends - 1:25AM

Observation photos (2)

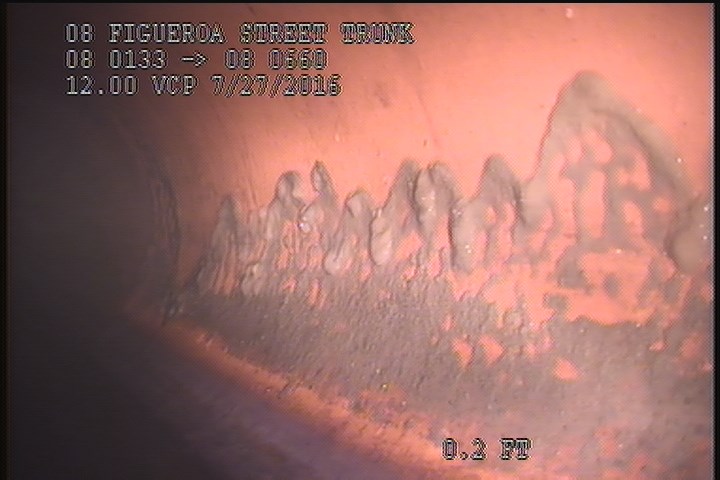

  • Deposits Attached Grease, 3 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 3 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

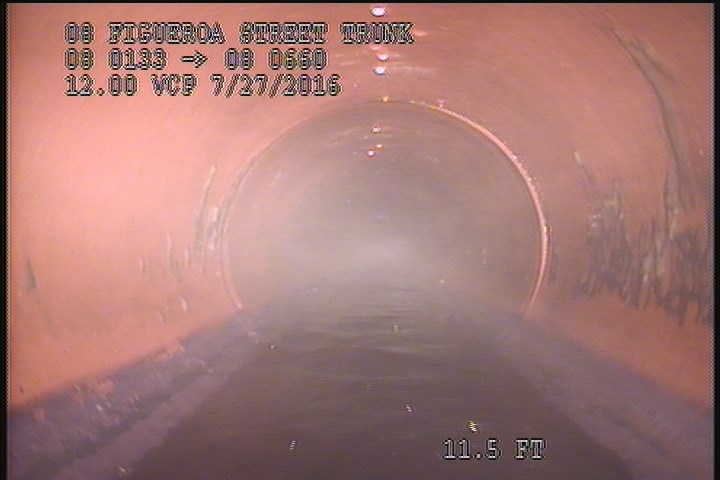

  • General Observation - 12" VCP

    11.5 ft. - General Observation - 12" VCP

All inspections of P24647Work order 0574374

Observations (12)

DistanceCodeObservation
0MWL—
36.7AMH1:25AM
6FLHAIRLINE
6FCHAIRLINE
0MWM—
2DAGS—
36.2MGOConn. @ Mh, 9 O' Clock. Active LARGE OUTGOING
0AMH1:15AM
36.2DAGS—
36.2MGOConn. @ Mh, 3 O' Clock. Active LARGE INCOMING
0MGOHOT OILY FLOW
11.5MGO12" VCP

Properties (4)

custom_field_three
HAIRLINES
custom_field_two
4
customer
LACSD
datetime
2016-07-27T01:13:26-07:00
