Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2016, 09:19 AM

  • 08 0143_08 0142_7252016_035104.mp4

Date
07/25/2016
W/O
0574374
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00006
PipeID
P00199
Time
2:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0203
Sewer Name
08 FIGUEROA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
01
Purpose
Routine Assessment
Project
20160723MDM_FIGUEROA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0143
Downstream MH
08 0142
Dir. of Survey
Downstream
Length Surveyed
301.7 ft.
Total Length
301.7 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 08 0143 to 08 0142
MH: 08 0143MH: 08 0142downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start0 ft. AMH - Upstream Manhole, Survey Begins - 3:50AM2 ft. MGP - General Photograph19.4 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE27.1 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - HAIRLINE42.8 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start42.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H52.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped149.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped161.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish252 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped301.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish301.7 ft. AMH - Downstream Manhole, Survey Ends - 4:35AM

Observation photos (3)

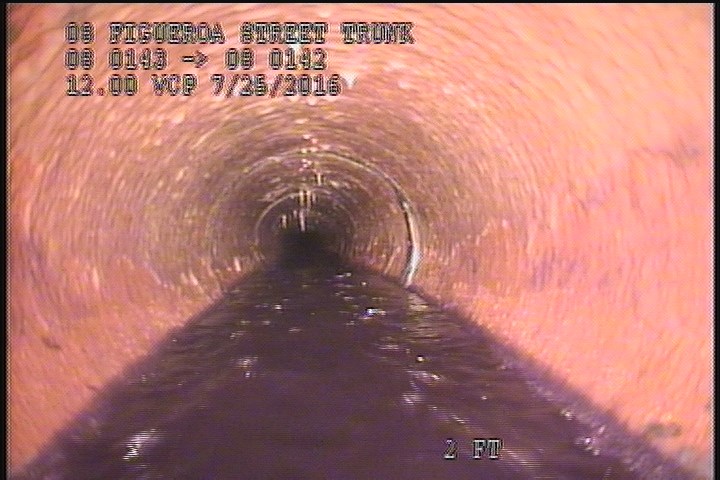

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

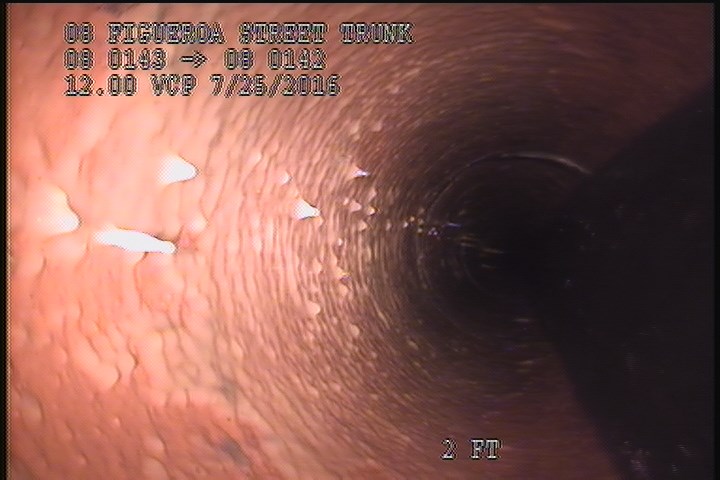

  • General Photograph

    2 ft. - General Photograph

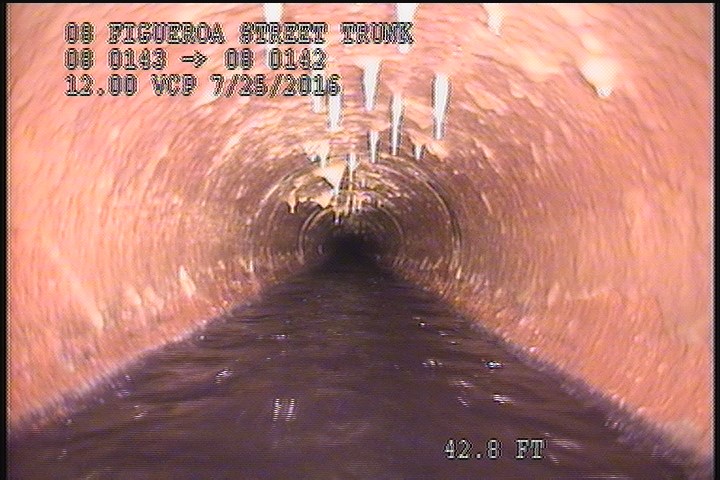

  • Deposits Attached Grease, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    42.8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

All inspections of P00199Work order 0574374

Observations (15)

DistanceCodeObservation
149.7TFCCapped
301.2DAGS—
2MGP—
52.2TFCCapped
161.1DAGS—
252TFCCapped
42.8DAGS—
42.8FLH
0MWM—
0MWL—
19.4FCHAIRLINE
301.7AMH4:35AM
0DAGS—
0AMH3:50AM
27.1FCHAIRLINE

Properties (4)

custom_field_three
FEW HAIRLINES
custom_field_two
4
customer
LACSD
datetime
2016-07-25T02:19:36-07:00
