Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2016, 09:16 AM

  • 08 0144_08 0143_7252016_030247.mp4

Date
07/25/2016
W/O
0574374
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00006
PipeID
P00200
Time
2:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0203
Sewer Name
08 FIGUEROA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
01
Purpose
Routine Assessment
Project
20160723MDM_FIGUEROA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0144
Downstream MH
08 0143
Dir. of Survey
Downstream
Length Surveyed
300.8 ft.
Total Length
300.8 ft.
Structural Index
3
Structural Quick
3222
Structural Rating
10
O&M Index
2
O&M Quick
3122
O&M Rating
7
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 08 0144 to 08 0143
MH: 08 0144MH: 08 0143downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:00AM0 ft. MWM - Water Mark, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start8 ft. MGO - General Observation - 12" VCP97.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE105.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H121.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active121.4 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES127.8 ft. FC - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES - H251.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open253.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES258.5 ft. FL - Fracture Longitudinal, at 07 o'clock, within 8 inches of joint: YES - H300.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish300.8 ft. AMH - Downstream Manhole, Survey Ends - 8:40AM

Observation photos (4)

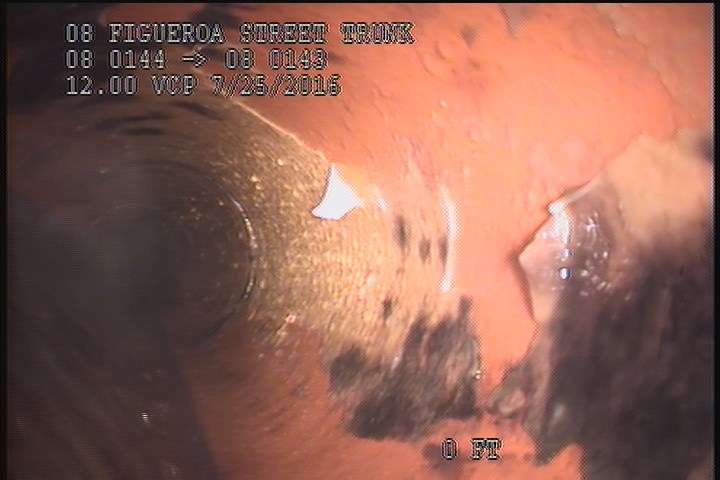

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

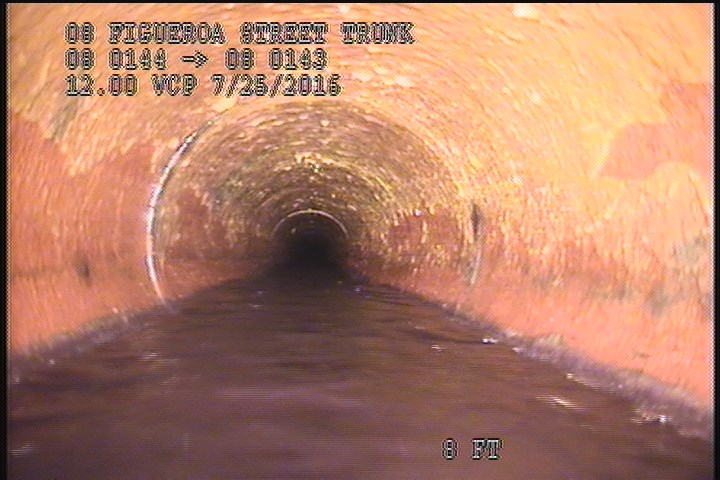

  • General Observation - 12" VCP

    8 ft. - General Observation - 12" VCP

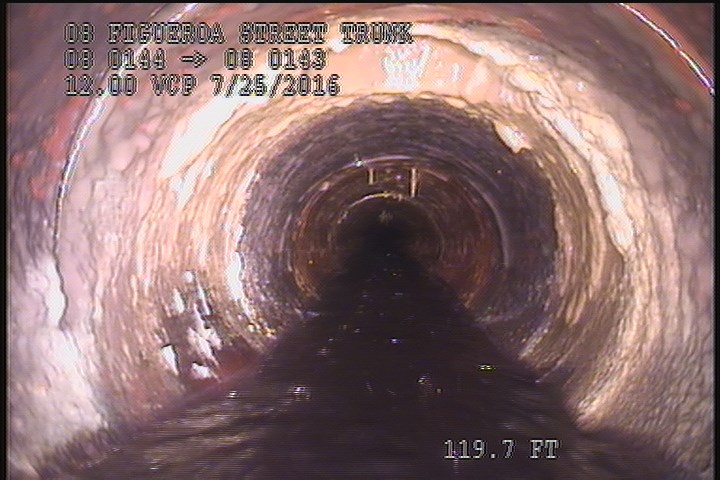

  • Deposits Attached Grease, 20 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

    121.4 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

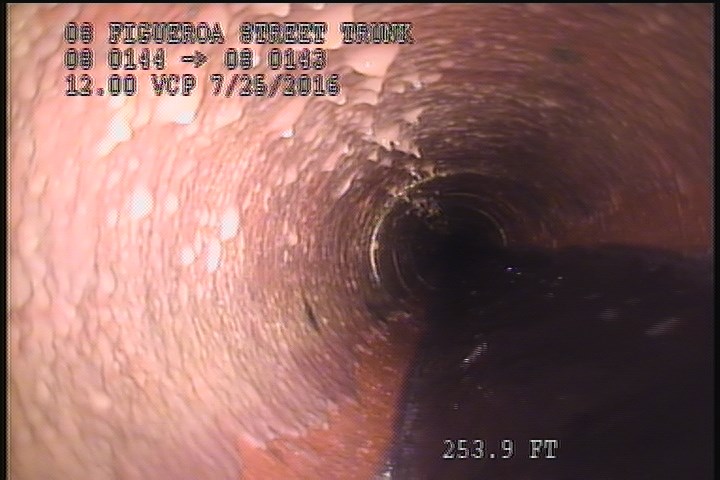

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

    253.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

All inspections of P00200Work order 0574374

Observations (15)

DistanceCodeObservation
300.5DAGS—
2DAGS—
8MGO12" VCP
258.5FLH
0MWL—
105.1FLH
121.4TFActive
0AMH3:00AM
97.4FCHAIRLINE
0MWM—
251.6TFOpen
127.8FCH
121.4DAGS—
253.9DAGS—
300.8AMH8:40AM

Properties (4)

custom_field_three
1 HAIRLINE
custom_field_two
4
customer
LACSD
datetime
2016-07-25T02:16:20-07:00
