Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2016, 07:27 AM

  • 08 0148_08 0147_7252016_003423.mp4

Date
07/25/2016
W/O
0574374
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00006
PipeID
P00204
Time
12:27 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0203
Sewer Name
08 FIGUEROA STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
01
Purpose
Routine Assessment
Project
20160723MDM_FIGUEROA_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
08 0148
Downstream MH
08 0147
Dir. of Survey
Downstream
Length Surveyed
305.8 ft.
Total Length
305.8 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 08 0148 to 08 0147
MH: 08 0148MH: 08 0147downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:30AM0 ft. MWM - Water Mark, 20 %of cross sectional area1 ft. MGO - General Observation - HOT OILY FLOW2 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - THIN CLEAR COATING8 ft. MGO - General Observation - 12" VCP74.6 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT95.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped115.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active118.3 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - HAIRLINE118.3 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES - HAIRLINE126.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H131.3 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SLIGHT223.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish223.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start224.4 ft. MGP - General Photograph273.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped305.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish305.8 ft. AMH - Downstream Manhole, Survey Ends - 1:00AM

Observation photos (4)

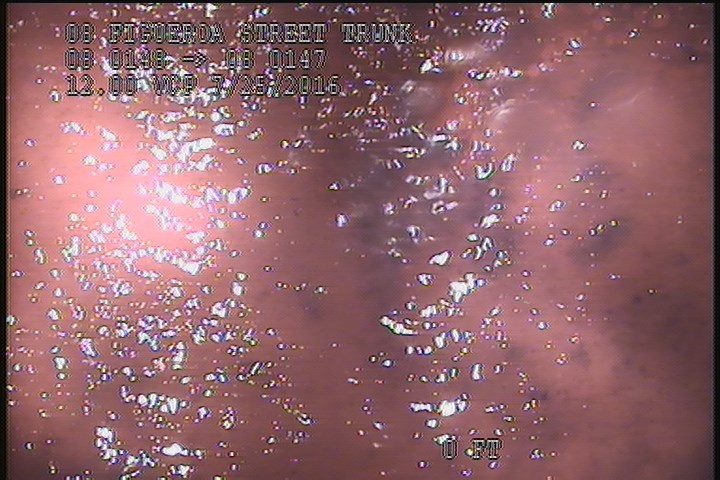

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - THIN CLEAR COATING

    2 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - THIN CLEAR COATING

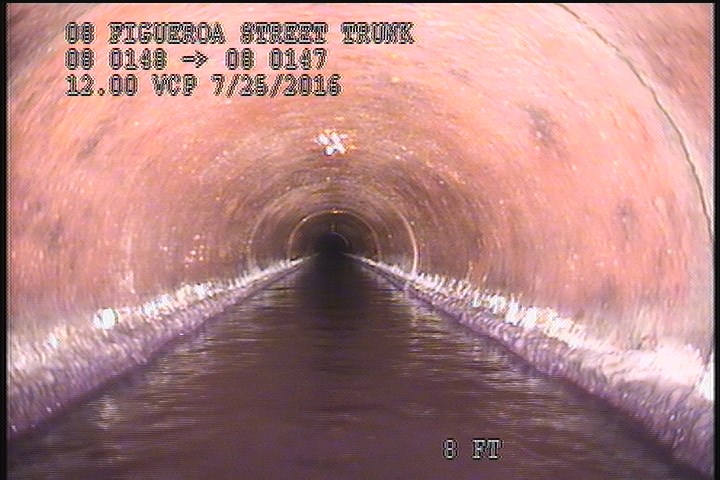

  • General Observation - 12" VCP

    8 ft. - General Observation - 12" VCP

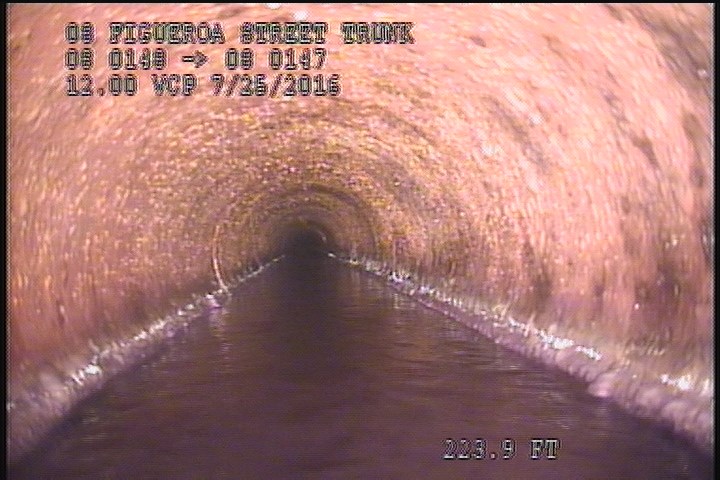

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    223.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

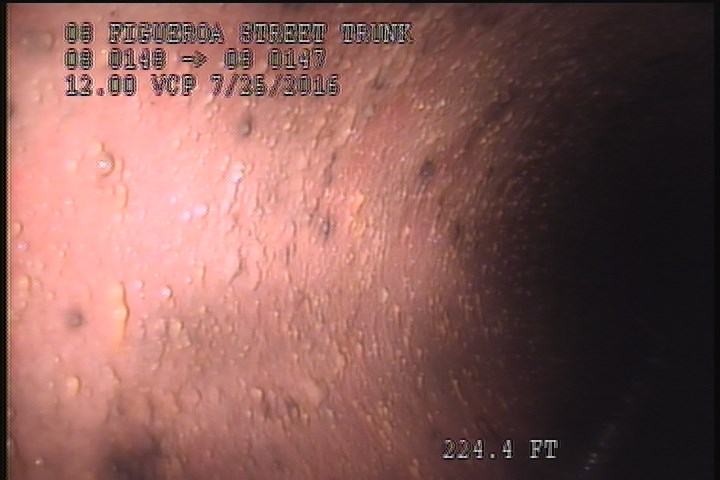

  • General Photograph

    224.4 ft. - General Photograph

All inspections of P00204Work order 0574374

Observations (19)

DistanceCodeObservation
305.3DAGS—
0MWL—
223.9DAGS—
0AMH12:30AM
95.6TFCCapped
131.3FCSLIGHT
223.9DAGS—
2DAGSTHIN CLEAR COATING
305.8AMH1:00AM
115.9TFActive
118.3FLHAIRLINE
126.7FLH
8MGO12" VCP
0MWM—
74.6FCSLIGHT
273.7TFCCapped
224.4MGP—
118.3FLHAIRLINE
1MGOHOT OILY FLOW

Properties (4)

custom_field_three
1 SLIGHT FRACTURE
custom_field_two
4
customer
LACSD
datetime
2016-07-25T00:27:12-07:00
