Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 11:00 AM

  • 16 0168_16 0167_7222016_040836.mp4

Date
07/22/2016
W/O
0580100
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00648
PipeID
P13200
Time
4:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0199
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20160722MDM_ARROYO_SECO_TRUNK_SECTION_5
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
16 0168
Downstream MH
16 0167
Dir. of Survey
Downstream
Length Surveyed
47.7 ft.
Total Length
47.7 ft.
Structural Index
3
Structural Quick
3423
Structural Rating
18
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 16 0168 to 16 0167
MH: 16 0168MH: 16 0167downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area32.3 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - HAIRLINE32.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT34.1 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start38.2 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish38.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Finish40.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT42.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT42.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H42.6 ft. FC - Fracture Circumferential, from 09 to 01 o'clock, within 8 inches of joint: YES - SLIGHT44.6 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H47.7 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (2)

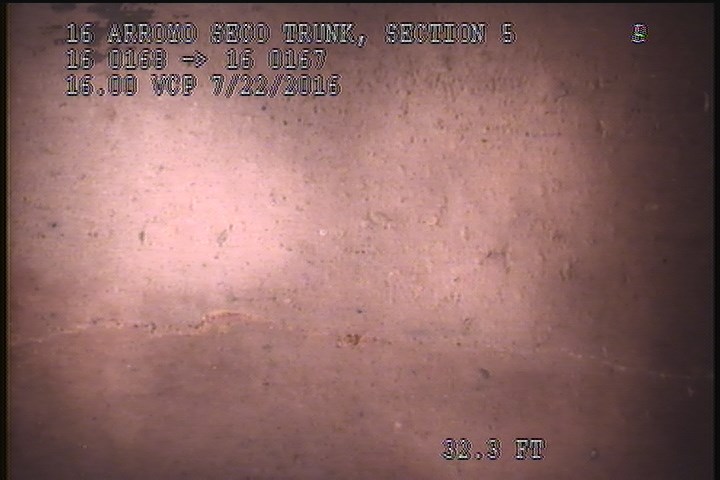

  • Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    32.3 ft. - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

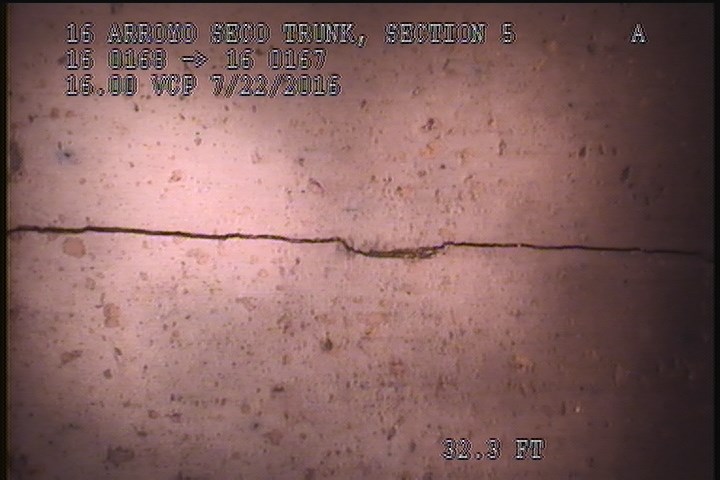

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    32.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

All inspections of P13200Work order 0580100

Observations (14)

DistanceCodeObservation
42.6FLSLIGHT
34.1CL—
0AMH4:00AM
42.6FLH
44.6FCH
32.3FLHAIRLINE
47.7AMH4:15AM
0MWM—
32.3FLSLIGHT
40.8FLSLIGHT
38.2CL—
0MWL—
38.2FL—
42.6FCSLIGHT

Properties (4)

custom_field_three
SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-07-22T04:00:00-07:00
