Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 09:14 AM

  • 16 0181_16 0180_7212016_034725.mp4

Date
07/21/2016
W/O
0580100
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00648
PipeID
P13213
Time
2:14 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0197
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20160721MDM_ARROYO_SECO_TRUNK_SECTION_5
Material
Vitrified Clay Pipe
Shape
Circular
Height
16 in.
Upstream MH
16 0180
Downstream MH
16 0181
Dir. of Survey
Upstream
Length Surveyed
324 ft.
Total Length
324 ft.
Structural Index
3
Structural Quick
3623
Structural Rating
24
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
24
Pipe schematic from manhole 16 0180 to 16 0181
MH: 16 0180MH: 16 0181upstream0 ft. AMH - Upstream Manhole, Survey Ends - 5:05AM3 ft. MGO - General Observation - ZOOM 3'3 ft. MGO - General Observation - POSSINLE MH CONN 3:00 OPEN4.3 ft. MGO - General Observation - ABANDONED MH BESIDE MH#1814.9 ft. MGO - General Observation - BOTTOM OF ABANDONED MH SEVERE CORRISON20.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H43.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SLIGHT57.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped79 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - H108 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped119.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT152 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open175 ft. MGO - General Observation - ABANDONED MH203.5 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT206.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE206.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SLIGHT219 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE229 ft. MGO - General Observation - 16" VCP229 ft. MMC - Material Change, Cast Iron - FINISH-CIP229 ft. SCP - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 20% PIPE LOSS254.2 ft. MGP - General Photograph - CIP254.2 ft. MGO - General Observation - 16" CIP302 ft. SCP - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 20% LOSS OF PIPE302 ft. MMC - Material Change, Cast Iron - START-CIP303.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped324 ft. MWL - Water Level, 2 %of cross sectional area324 ft. AMH - Downstream Manhole, Survey Begins - 3:45AM324 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (10)

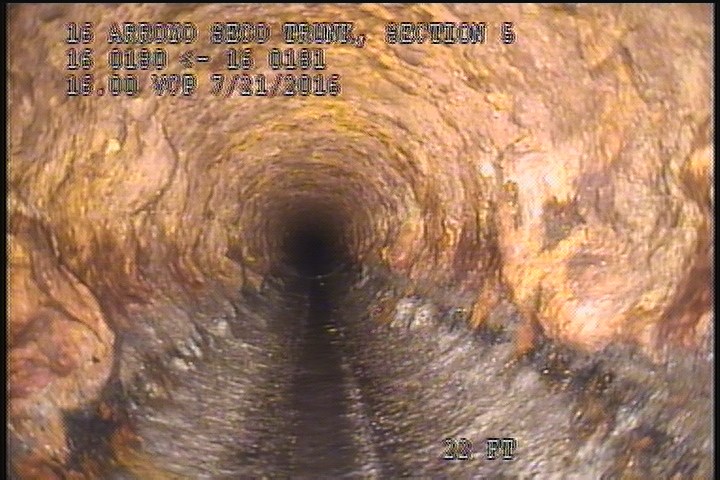

  • Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 20% LOSS OF PIPE

    22 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 20% LOSS OF PIPE

  • Material Change, Cast Iron - START-CIP

    22 ft. - Material Change, Cast Iron - START-CIP

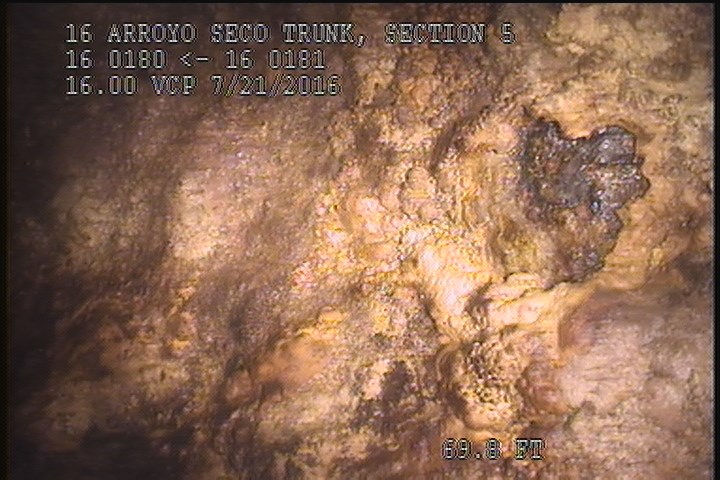

  • General Photograph - CIP

    69.8 ft. - General Photograph - CIP

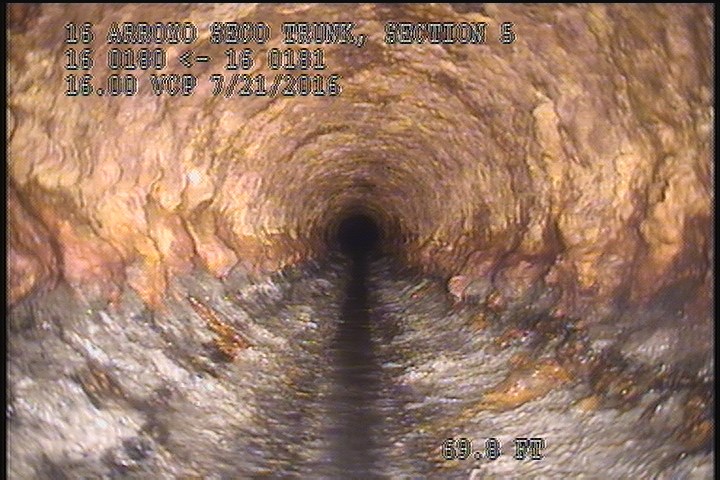

  • General Observation - 16" CIP

    69.8 ft. - General Observation - 16" CIP

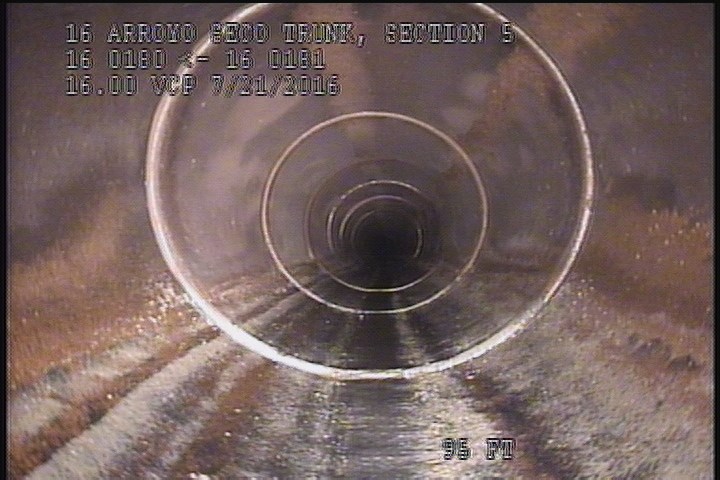

  • General Observation - 16" VCP

    95 ft. - General Observation - 16" VCP

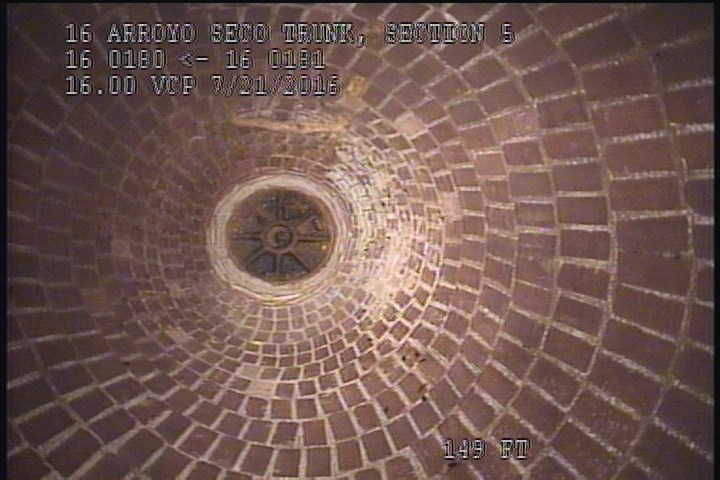

  • General Observation - ABANDONED MH

    149 ft. - General Observation - ABANDONED MH

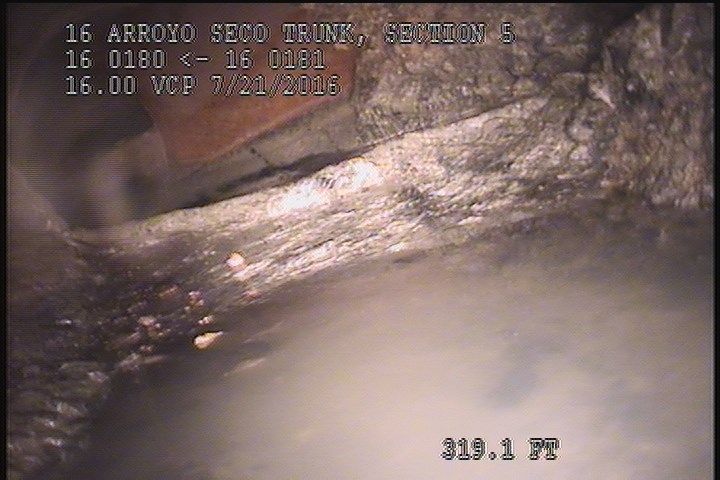

  • General Observation - BOTTOM OF ABANDONED MH SEVERE CORRISON

    319.1 ft. - General Observation - BOTTOM OF ABANDONED MH SEVERE CORRISON

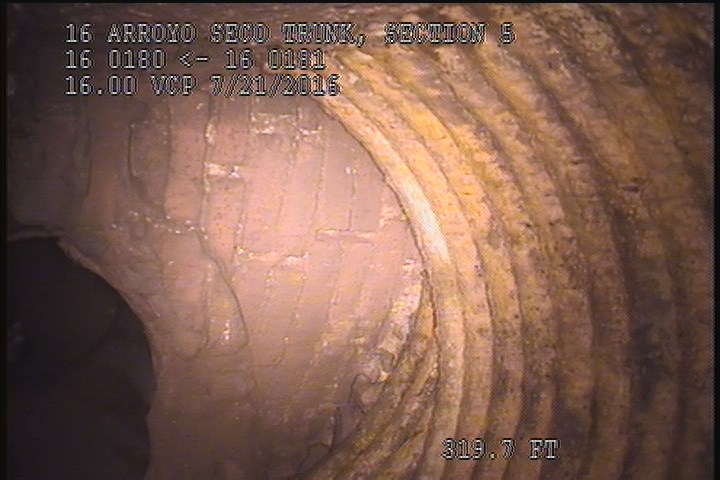

  • General Observation - ABANDONED MH BESIDE MH#181

    319.7 ft. - General Observation - ABANDONED MH BESIDE MH#181

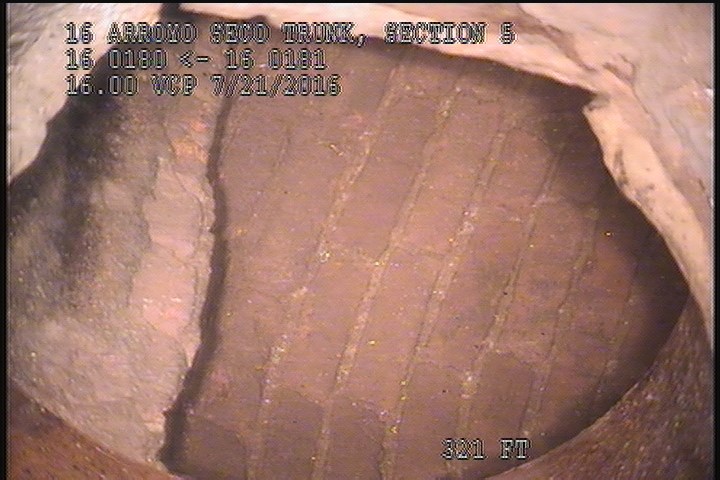

  • General Observation - ZOOM 3'

    321 ft. - General Observation - ZOOM 3'

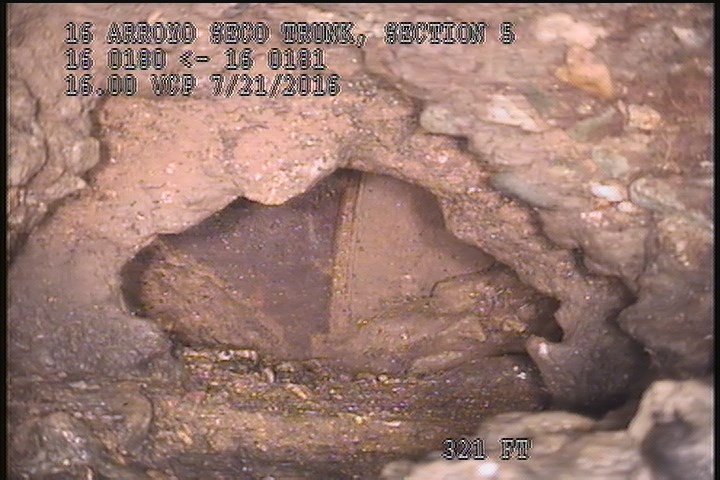

  • General Observation - POSSINLE MH CONN 3:00 OPEN

    321 ft. - General Observation - POSSINLE MH CONN 3:00 OPEN

All inspections of P13213Work order 0580100

Observations (28)

DistanceCodeObservation
20.9TFCCapped
303.7FCH
117.8FLHAIRLINE
0MWL—
280.6FCSLIGHT
149MGOABANDONED MH
204.7FLSLIGHT
95MGO16" VCP
69.8MGPCIP
266.1TFCCapped
216TFCCapped
172TFOpen
324AMH5:05AM
0AMH3:45AM
319.1MGOBOTTOM OF ABANDONED MH SEVERE CORRISON
95MMCFINISH-CIP
22SCP20% LOSS OF PIPE
245FCH
321MGOZOOM 3'
95SCP20% PIPE LOSS
319.7MGOABANDONED MH BESIDE MH#181
0MWM—
321MGOPOSSINLE MH CONN 3:00 OPEN
105FLHAIRLINE
69.8MGO16" CIP
120.5FLSLIGHT
117.8FLSLIGHT
22MMCSTART-CIP

Properties (4)

custom_field_three
20% LOSS CIP PIPE
custom_field_two
3
customer
LACSD
datetime
2016-07-21T02:14:13-07:00
