Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 20, 2016, 08:10 AM

  • H 0329_H 0328_7202016_013626.mp4

Date
07/20/2016
W/O
0580376
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00175
PipeID
P10779
Time
1:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0194
Sewer Name
H JOINT OUTFALL H - UNIT 4
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Capital Improvement Program Assesment
Project
20160716MDM_JOINT_OUTFALL_H_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
57 in.
Upstream MH
H 0329
Downstream MH
H 0328
Dir. of Survey
Downstream
Length Surveyed
567.6 ft.
Total Length
567.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole H 0329 to H 0328
MH: H 0329MH: H 0328downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:10AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COAT 100% START 9:00 TO 3:008 ft. MGP - General Photograph - MAG COAT227.7 ft. MGO - General Observation - MAG COAT 100%367 ft. SAV - Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG567.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish567.2 ft. MGO - General Observation - MAG COAT 100% FINISH567.6 ft. AMH - Downstream Manhole, Survey Ends - 1:50AM

Observation photos (5)

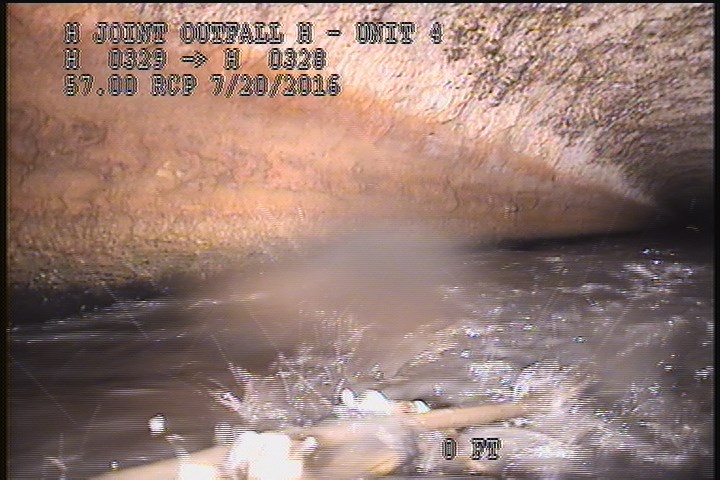

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

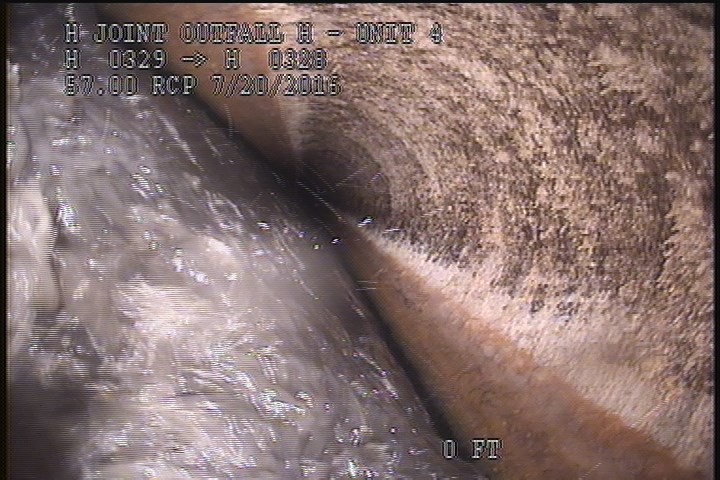

  • General Observation - MAG COAT 100% START 9:00 TO 3:00

    2 ft. - General Observation - MAG COAT 100% START 9:00 TO 3:00

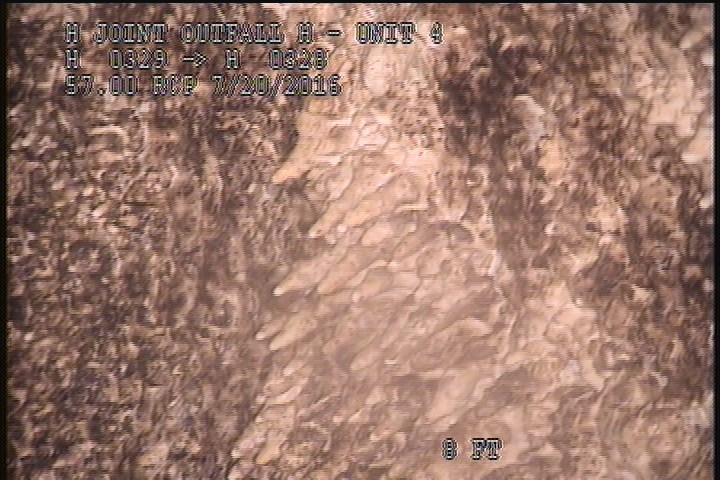

  • General Photograph - MAG COAT

    8 ft. - General Photograph - MAG COAT

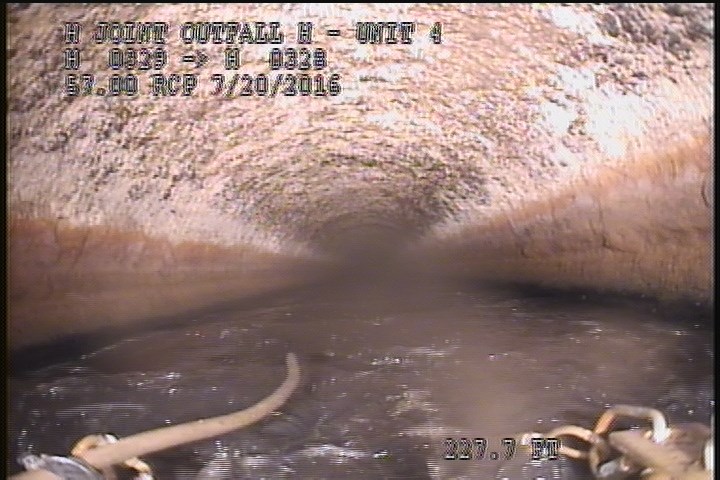

  • General Observation - MAG COAT 100%

    227.7 ft. - General Observation - MAG COAT 100%

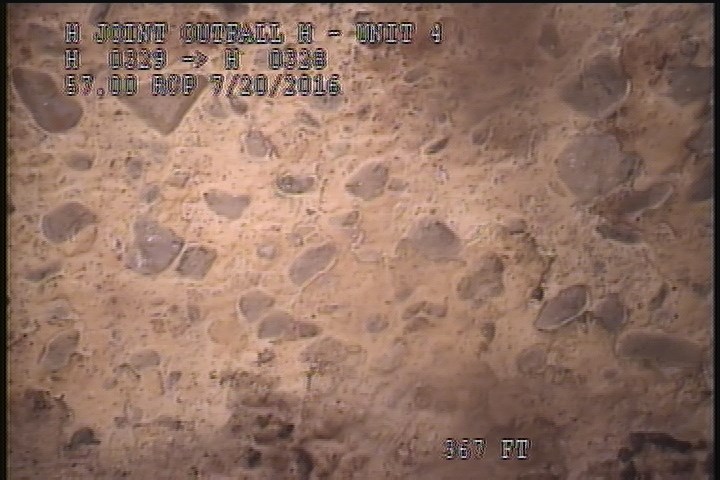

  • Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

    367 ft. - Surface Aggregate Visible, from 09 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P10779Work order 0580376

Observations (11)

DistanceCodeObservation
0AMH1:10AM
567.2DAGS—
567.6AMH1:50AM
0MWL—
567.2MGOMAG COAT 100% FINISH
8MGPMAG COAT
2DAGS—
2MGOMAG COAT 100% START 9:00 TO 3:00
367SAVSEVERE AGG
0MWM—
227.7MGOMAG COAT 100%

Properties (4)

custom_field_three
SEVERE AGG VISIBLE-100% MAG COAT
custom_field_two
3
customer
LACSD
datetime
2016-07-20T01:10:00-07:00
