Wastewater/Activity/PacpInspection/1.0Jul 16, 2016, 07:41 AM
H 0338_H 0337_7162016_014533.mp4
- Date
- 07/16/2016
- W/O
- 0580377
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00175
- PipeID
- P10788
- Time
- 12:41 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0189
- Sewer Name
- H JOINT OUTFALL H - UNIT 4
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 19A
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160716MDM_JOINT_OUTFALL_H_UNIT_4
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- H 0337
- Downstream MH
- H 0338
- Dir. of Survey
- Upstream
- Length Surveyed
- 8 ft.
- Total Length
- 8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

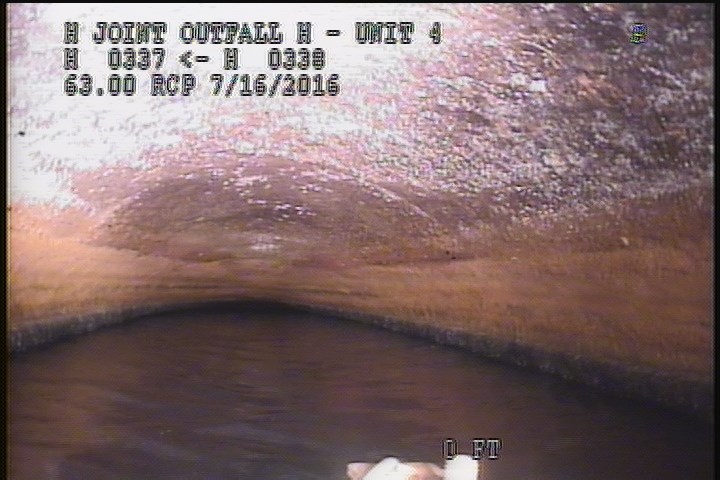

0 ft. - Water Mark, 70 %of cross sectional area

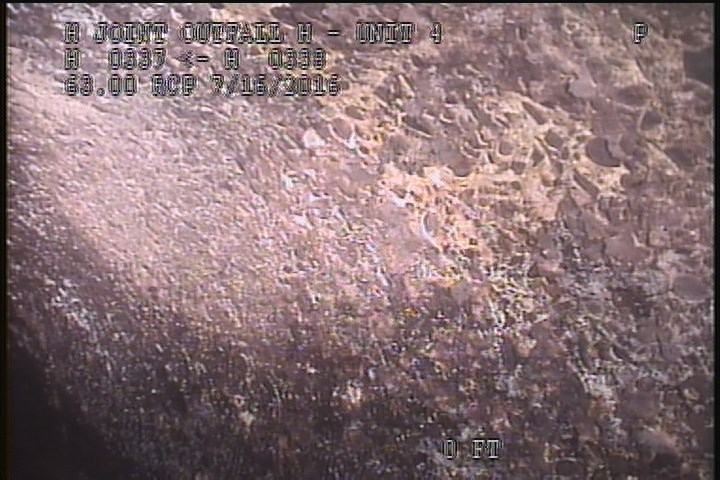

2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

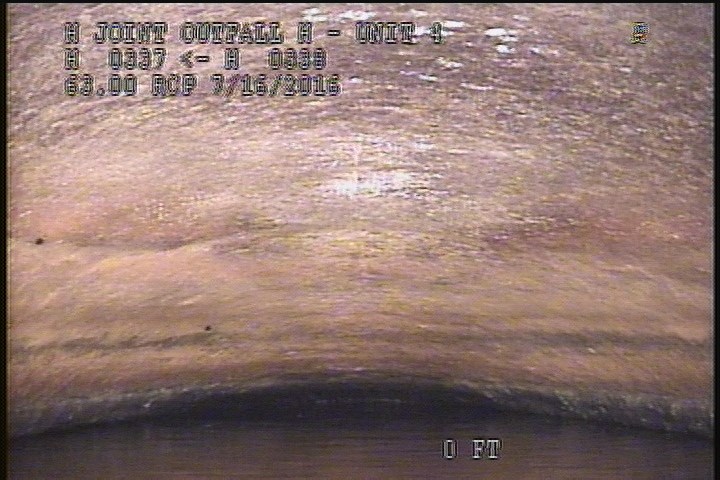

8 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON-1:55AM
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 1:35AM |
| 2 | SAP | SEVERE AGG |
| 0 | MWL | — |
| 8 | MSA | UPLEG DOWNSTREAM SIPHON-1:55AM |
| 7 | SAP | SEVERE AGG |
| 0 | MWM | — |
Properties (5)
- additional_info
- UPLEG DOWNSTREAM SIPHON
- custom_field_three
- SEVERE PROJECTING AGG
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-16T00:41:14-07:00
