Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 11, 2016, 03:21 PM

  • 02 2338_02 2337_7112016_092827.mp4

Date
07/11/2016
W/O
0580042
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00896
PipeID
P20968
Time
8:21 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7176
Sewer Name
02 ARTHUR AVENUE TRUNK
City
PARAMOUNT
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
31
Purpose
Capital Improvement Program Assesment
Project
20160711AM_ARTHUR_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
02 2338
Downstream MH
02 2337
Dir. of Survey
Downstream
Length Surveyed
347.7 ft.
Total Length
347.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 2338 to 02 2337
MH: 02 2338MH: 02 2337downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:30 AM0 ft. MGO - General Observation - ACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.103.2 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6", 6" - OPEN139.9 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"177.9 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN214.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 4"255.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN272.2 ft. MGO - General Observation - CHIPPING272.2 ft. MGO - General Observation - GASKET HANGING OUT290 ft. MWL - Water Level, 45 %of cross sectional area295 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - OPEN302.2 ft. MGO - General Observation - CHIPPING324.7 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"346.3 ft. MGO - General Observation - SLIGHT GREASE/DEBRIS/SCALE THROUGHOUT THE REACH347.7 ft. AMH - Downstream Manhole, Survey Ends - 9:46 AM

Observation photos (3)

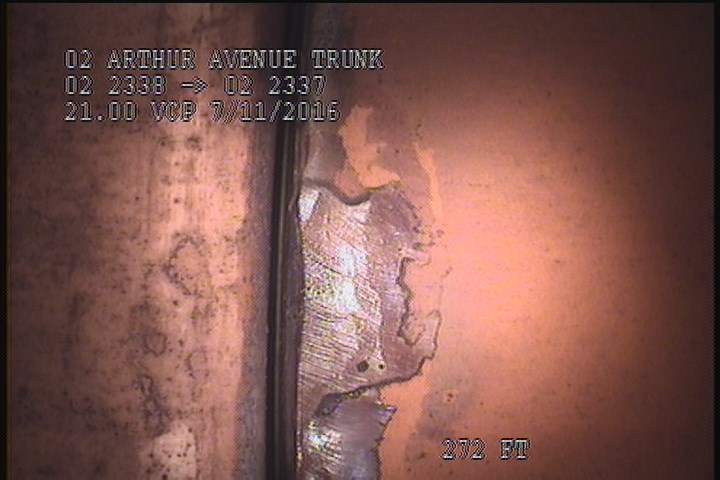

  • General Observation - CHIPPING

    272.2 ft. - General Observation - CHIPPING

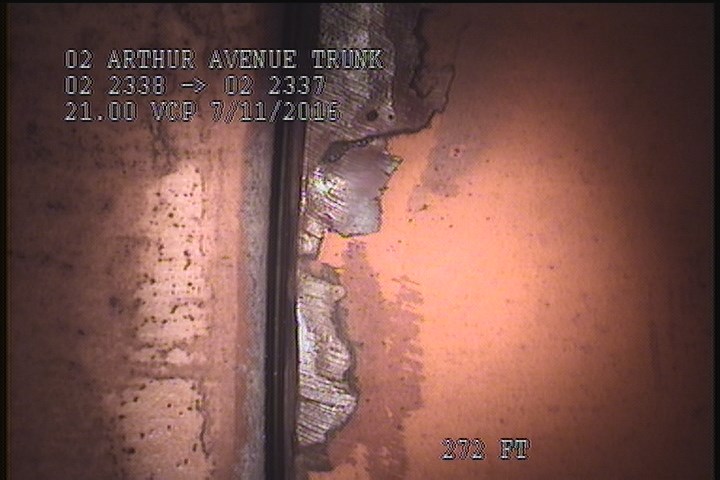

  • General Observation - GASKET HANGING OUT

    272.2 ft. - General Observation - GASKET HANGING OUT

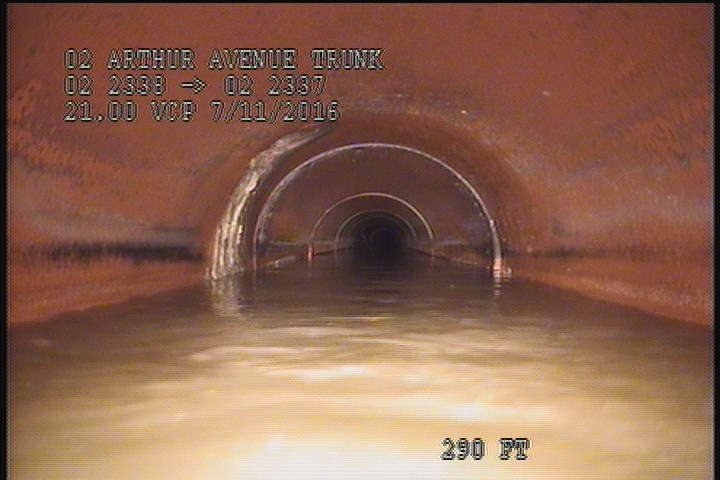

  • Water Level, 45 %of cross sectional area

    290 ft. - Water Level, 45 %of cross sectional area

All inspections of P20968Work order 0580042

Observations (18)

DistanceCodeObservation
324.7TFA—
0MWL—
302.2MGOCHIPPING
103.2TFOPEN
177.9TFOPEN
0AMH9:30 AM
295TFOPEN
290MWL—
272.2MGOCHIPPING
139.9TFA—
214.6TFA—
272.2MGOGASKET HANGING OUT
0MGOACTIVE DROP CONN. INSIDE THE MH. @ 09 O'CLOCK
346.3MGOSLIGHT GREASE/DEBRIS/SCALE THROUGHOUT THE REACH
347.7AMH9:46 AM
255.3TFOPEN
0MWM—
0MGOROACHES INSIDE THE MH.

Properties (4)

additional_info
RFIR INSPECTION
custom_field_two
4
customer
LACSD
datetime
2016-07-11T08:21:30-07:00
