Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 9, 2016, 08:12 AM

  • G 0160_G 0159_792016_071026.mp4

Date
07/09/2016
W/O
0580099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00841
Time
1:12 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
HO180
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20160709MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0160
Downstream MH
G 0159
Dir. of Survey
Downstream
Length Surveyed
392.6 ft.
Total Length
392.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole G 0160 to G 0159
MH: G 0160MH: G 0159downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 7:10AM0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: NO2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:002 ft. MGO - General Observation - TILES 100% IN PLACE78.9 ft. MGO - General Observation - TILES 100% IN PLACE80.8 ft. MGP - General Photograph247 ft. MGO - General Observation - TILES 100%IN PLACE392.2 ft. MGO - General Observation - TILES 100% IN PLACE392.2 ft. MGO - General Observation - MAG COAT 80% FINISH392.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active392.6 ft. AMH - Downstream Manhole, Survey Ends - 7:40AM

Observation photos (5)

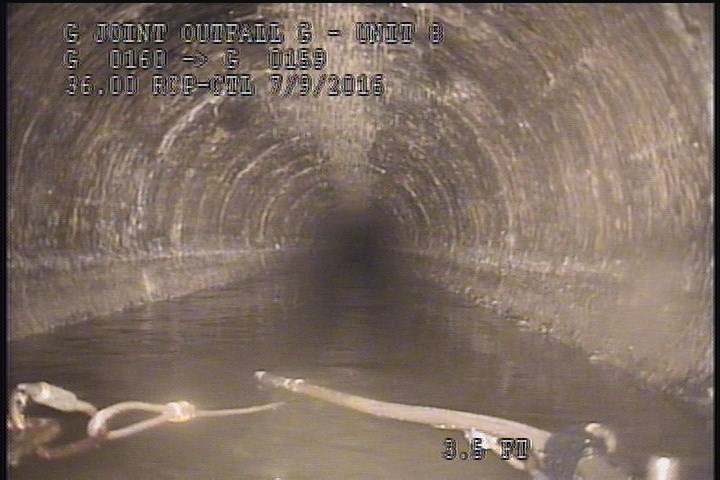

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

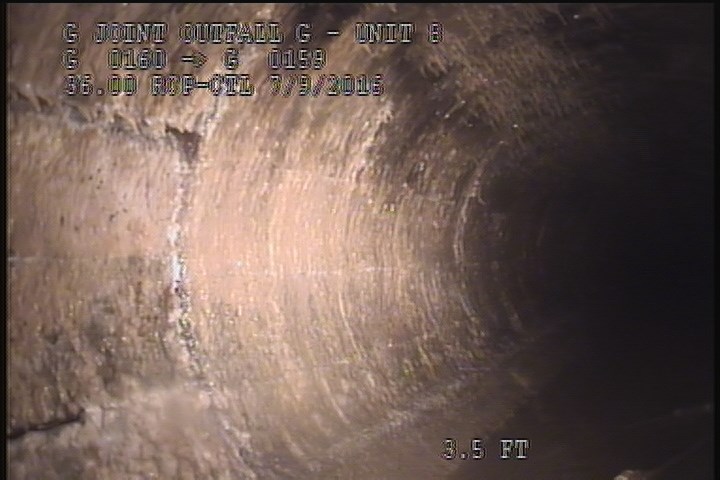

  • General Observation - TILES 100% IN PLACE

    2 ft. - General Observation - TILES 100% IN PLACE

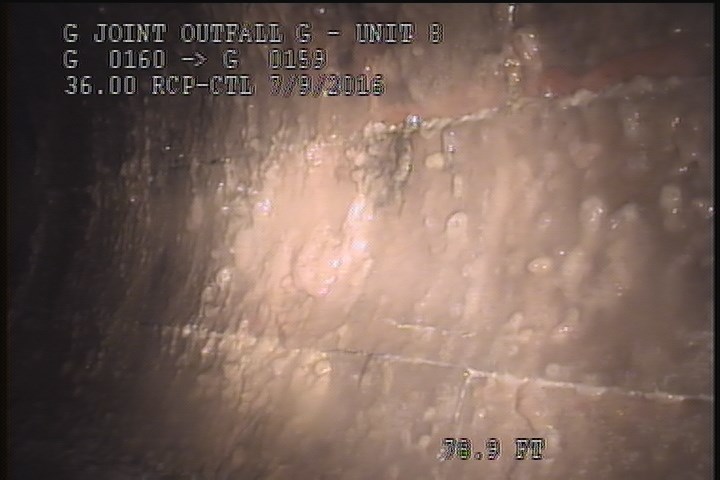

  • General Observation - TILES 100% IN PLACE

    78.9 ft. - General Observation - TILES 100% IN PLACE

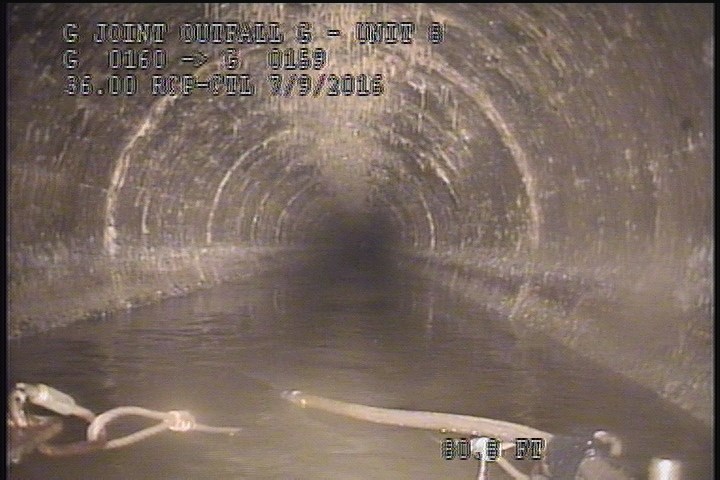

  • General Photograph

    80.8 ft. - General Photograph

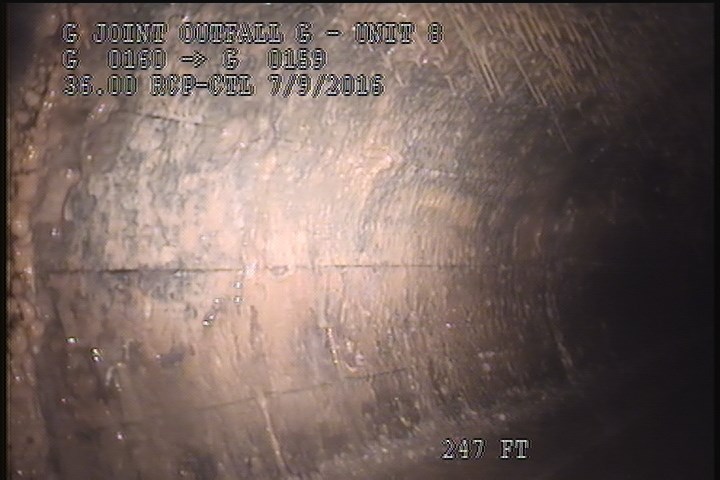

  • General Observation - TILES 100%IN PLACE

    247 ft. - General Observation - TILES 100%IN PLACE

All inspections of P00841Work order 0580099

Observations (14)

DistanceCodeObservation
0MWM—
392.2MGOTILES 100% IN PLACE
2DAGS—
80.8MGP—
2MGOMAG COAT 80% START 8:00 TO 4:00
78.9MGOTILES 100% IN PLACE
392.2MGOMAG COAT 80% FINISH
0MGOConn. @ Mh, 9 O' Clock. Active
247MGOTILES 100%IN PLACE
392.6AMH7:40AM
0AMH7:10AM
392.2MGOConn. @ Mh, 9 O' Clock. Active
2MGOTILES 100% IN PLACE
0MWL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-07-09T01:12:30-07:00
