Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 7, 2016, 03:32 PM

  • F 0071B_F 0071A_772016_091412.mp4

Date
07/07/2016
W/O
0531060
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00035
PipeID
P10158
Time
8:32 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7174
Sewer Name
F JOINT OUTFALL F - UNIT 3A
City
BELLFLOWER
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
20160707AM_JOINT_OUTFALL_F_UNIT_3A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
66 in.
Upstream MH
F 0071A
Downstream MH
F 0071B
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole F 0071A to F 0071B
MH: F 0071AMH: F 0071Bupstream0 ft. MSA - Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON0.1 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO0.1 ft. MGO - General Observation - CORROSION BEYOND REBAR0.1 ft. LU - Alignment Up, 45 %0.1 ft. SAV - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO0.1 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO2.1 ft. MWL - Water Level, 100 %of cross sectional area2.1 ft. MGO - General Observation - ROACHES INSIDE THE MH.2.1 ft. AMH - Downstream Manhole, Survey Begins - 9:13 AM

Observation photos (7)

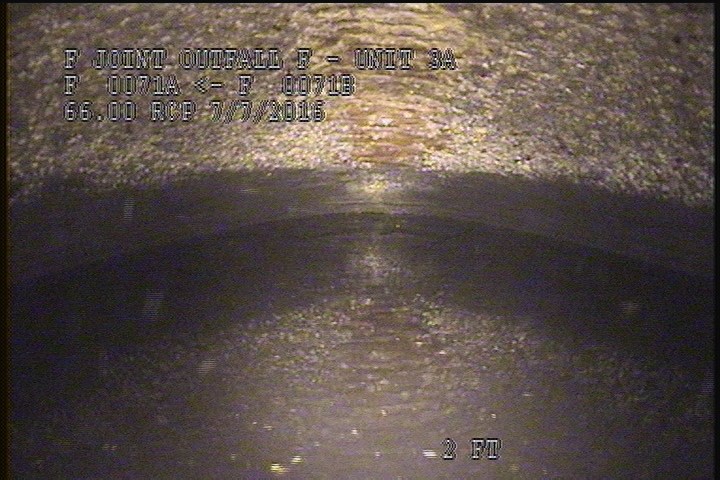

  • General Observation - ROACHES INSIDE THE MH.

    0 ft. - General Observation - ROACHES INSIDE THE MH.

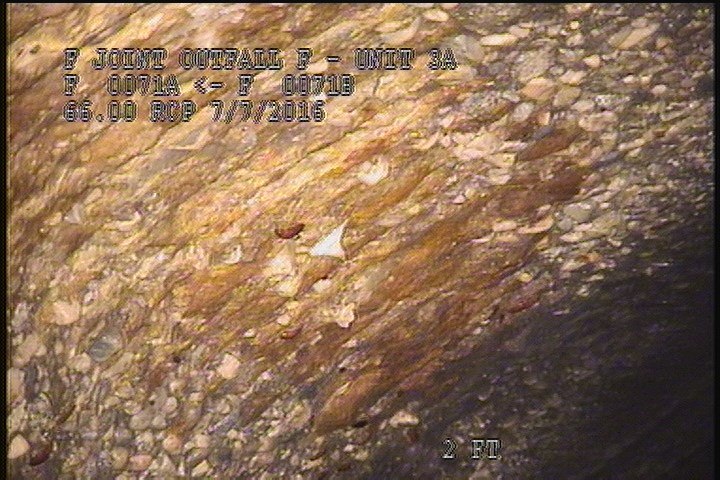

  • Downstream Manhole, Survey Begins - 9:13 AM

    0 ft. - Downstream Manhole, Survey Begins - 9:13 AM

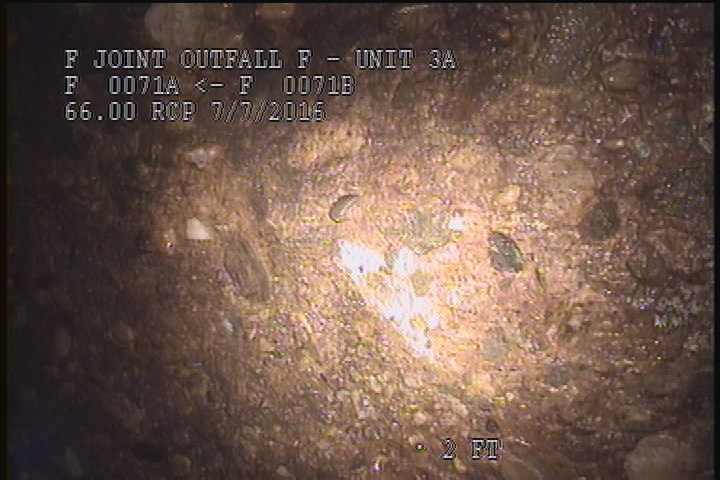

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO

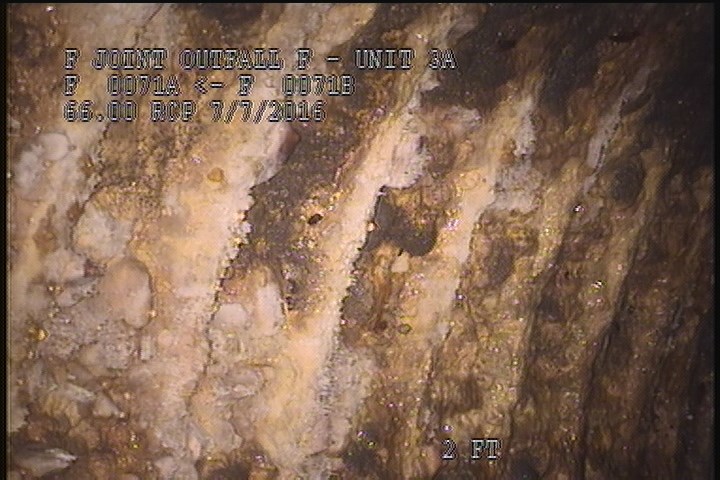

  • General Observation - CORROSION BEYOND REBAR

    2 ft. - General Observation - CORROSION BEYOND REBAR

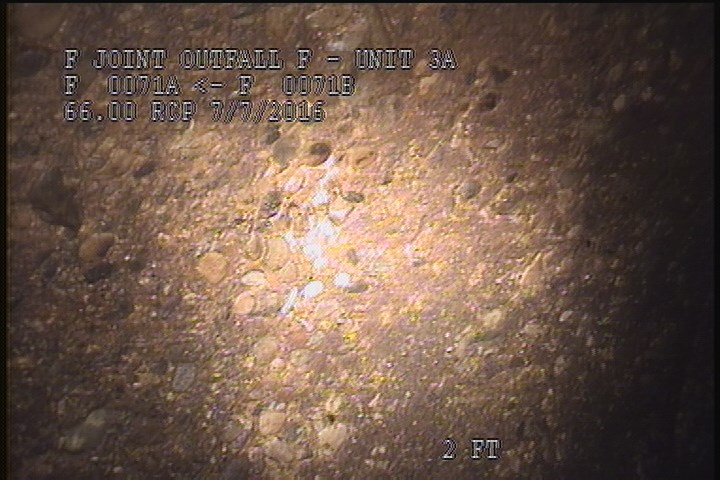

  • Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Aggregate Visible, from 10 to 02 o'clock, within 8 inches of joint: NO

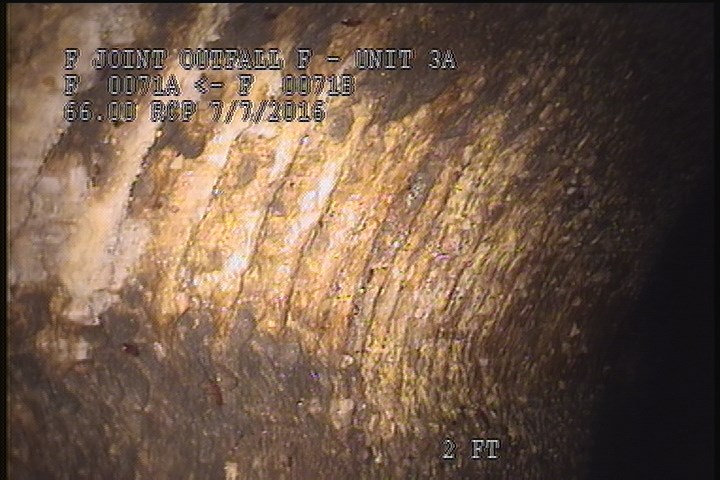

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO

    2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO

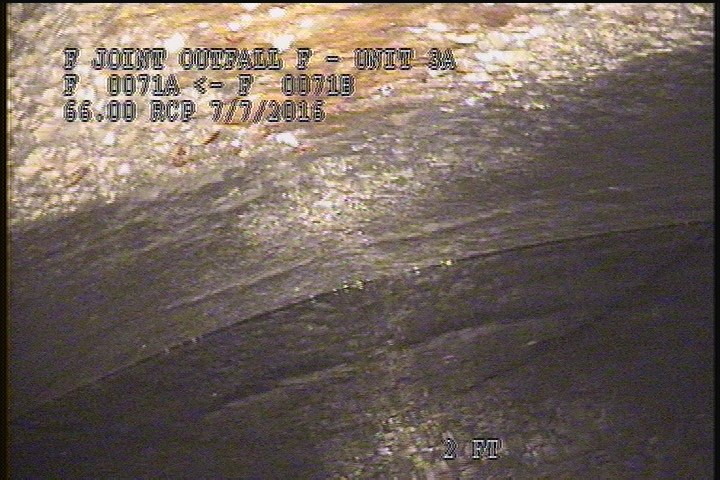

  • Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON

    2.1 ft. - Survey Abandoned - VIEW OF THE UPLEG PIPE OF THE D/S SIPHON

All inspections of P10158Work order 0531060

Observations (9)

DistanceCodeObservation
0MWL—
2SSS—
2MGOCORROSION BEYOND REBAR
2.1MSAVIEW OF THE UPLEG PIPE OF THE D/S SIPHON
2LU—
2SAV—
2SRV—
0MGOROACHES INSIDE THE MH.
0AMH9:13 AM

Properties (5)

additional_info
VIEW OF THE UPLEG PIPE OF THE D/S SIPHON
custom_field_three
REBAR, CORROSION BEYOND REBAR
custom_field_two
1
customer
LACSD
datetime
2016-07-07T08:32:27-07:00
