Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2016, 08:21 AM

  • 18 0616_18 0615_762016_045126.mp4

Date
07/06/2016
W/O
0574366
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00692
PipeID
P14466
Time
1:21 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0175
Sewer Name
18 NORTH PLANT OUTFALL RELIEF TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
20160706MDM_NORTH_PLANT_OUTFALL_RELIEF_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 0616
Downstream MH
18 0615
Dir. of Survey
Downstream
Length Surveyed
27.9 ft.
Total Length
27.9 ft.
Structural Index
2
Structural Quick
4134
Structural Rating
36
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
40
Pipe schematic from manhole 18 0616 to 18 0615
MH: 18 0616MH: 18 0615downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area5 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - HAIRLINE5 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SLIGHT9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT13 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT16.4 ft. FC - Fracture Circumferential, from 07 to 12 o'clock, within 8 inches of joint: YES - SLIGHT16.4 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - SLIGHT19.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SLIGHT19.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE20.3 ft. MGO - General Observation - 8" VCP23.2 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE26.5 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - MODRERATE ALMOST JOINT TO JOINT 1' SECTION26.5 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - MODERATE26.5 ft. FM - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT ALMOST JOINT TO JOINT -1' SECTION26.9 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - SLIGHT27.5 ft. MGO - General Observation - ZOOM 4'27.5 ft. FC - Fracture Circumferential, from 06 to 05 o'clock, within 8 inches of joint: NO - SLIGHT27.5 ft. MGO - General Observation - DROP CONN27.5 ft. FC - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES - SLIGHT27.9 ft. AOC - Drop Connection, Survey Ends - 5:20AM

Observation photos (6)

  • General Observation - 8" VCP

    20.3 ft. - General Observation - 8" VCP

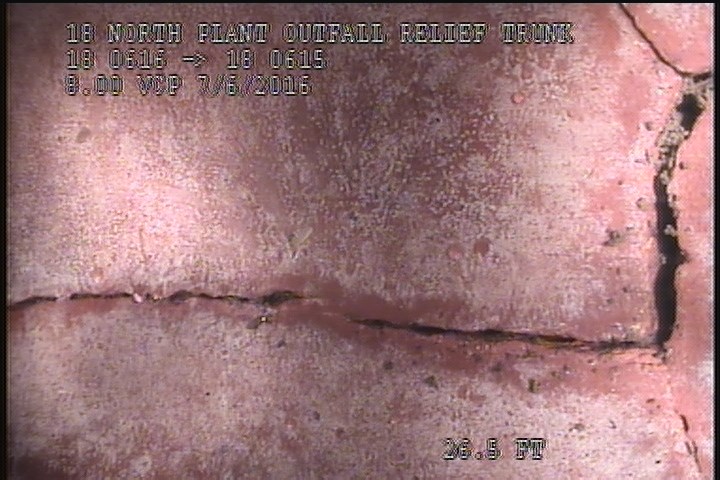

  • Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - MODRERATE ALMOST JOINT TO JOINT 1' SECTION

    26.5 ft. - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES - MODRERATE ALMOST JOINT TO JOINT 1' SECTION

  • Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - MODERATE

    26.5 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - MODERATE

  • Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT ALMOST JOINT TO JOINT -1' SECTION

    26.5 ft. - Fracture Multiple, from 06 to 05 o'clock, within 8 inches of joint: YES - SLIGHT ALMOST JOINT TO JOINT -1' SECTION

  • General Observation - ZOOM 4'

    27.5 ft. - General Observation - ZOOM 4'

  • General Observation - DROP CONN

    27.5 ft. - General Observation - DROP CONN

All inspections of P14466Work order 0574366

Observations (22)

DistanceCodeObservation
9FCSLIGHT
5FLHAIRLINE
0AMH4:50AM
27.5MGOZOOM 4'
27.5FCSLIGHT
16.4FCSLIGHT
26.5FCMODRERATE ALMOST JOINT TO JOINT 1' SECTION
26.5FCMODERATE
27.5MGODROP CONN
0MWL—
26.5FMSLIGHT ALMOST JOINT TO JOINT -1' SECTION
5FLSLIGHT
26.9FCSLIGHT
23.2FCHAIRLINE
27.5FCSLIGHT
16.4FCSLIGHT
20.3MGO8" VCP
19.8FLSLIGHT
27.9AOC5:20AM
19.8FCHAIRLINE
0MWM—
13FLSLIGHT

Properties (4)

custom_field_three
MODERATE CIRCUM FRACTURES
custom_field_two
2
customer
LACSD
datetime
2016-07-06T01:21:53-07:00
