Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2016, 08:16 AM

  • 18 0617_18 0615_762016_022145.mp4

Date
07/06/2016
W/O
0574366
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00692
PipeID
P14467
Time
1:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0173
Sewer Name
18 NORTH PLANT OUTFALL RELIEF TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
20160706MDM_NORTH_PLANT_OUTFALL_RELIEF_TRUNK
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Upstream MH
18 0617
Downstream MH
18 0615
Dir. of Survey
Downstream
Length Surveyed
216.6 ft.
Total Length
216.6 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 18 0617 to 18 0615
MH: 18 0617MH: 18 0615downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:00AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE2 ft. MGO - General Observation - MAG COAT 80% START 8:00 TO 4:0012.8 ft. SSS - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE63 ft. SSS - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE72.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6" - Open168.9 ft. SSS - Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: YES - BLISTERING CONCRETE200.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6" - Capped216.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING PEELING CONCRETE216.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active216.1 ft. MGO - General Observation - MAG COAT 80% FINISH216.6 ft. AMH - Downstream Manhole, Survey Ends - 2:30AM

Observation photos (5)

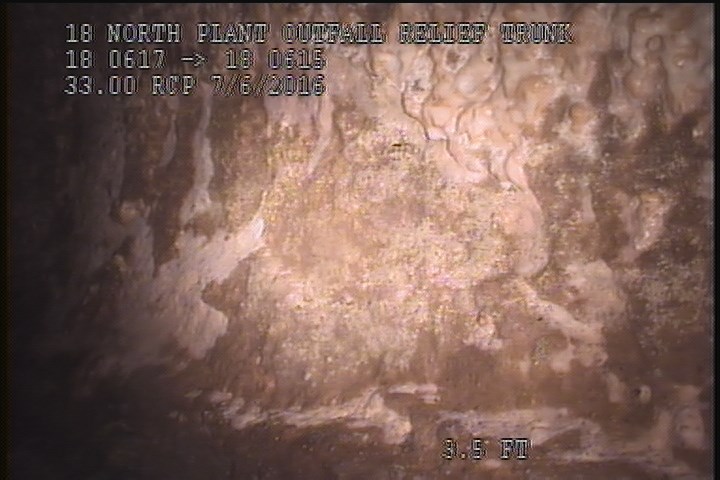

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

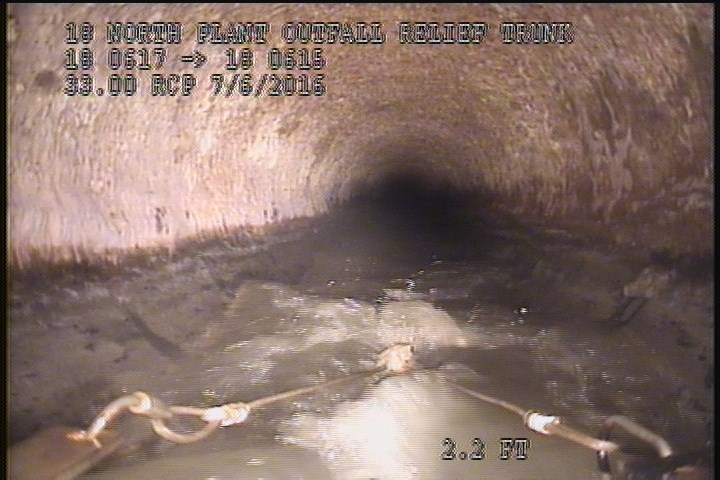

  • General Observation - MAG COAT 80% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 80% START 8:00 TO 4:00

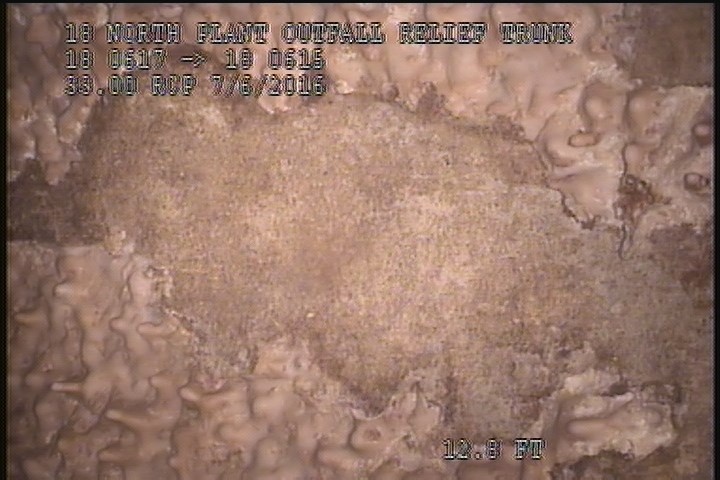

  • Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    12.8 ft. - Surface Spalling, from 11 to 01 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

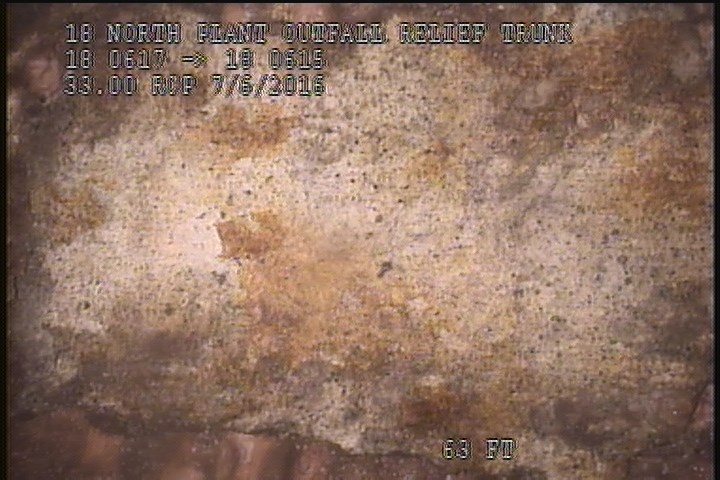

  • Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

    63 ft. - Surface Spalling, from 02 to 04 o'clock, within 8 inches of joint: NO - PEELING CONCRETE

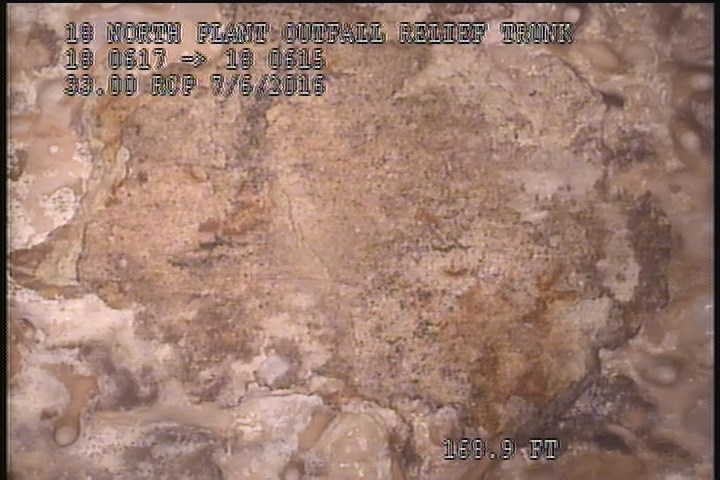

  • Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: YES - BLISTERING CONCRETE

    168.9 ft. - Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: YES - BLISTERING CONCRETE

All inspections of P14467Work order 0574366

Observations (15)

DistanceCodeObservation
2SSSBLISTERING PEELING CONCRETE
168.9SSSBLISTERING CONCRETE
2MGOMAG COAT 80% START 8:00 TO 4:00
63SSSPEELING CONCRETE
72.7TFOpen
0AMH2:00AM
200.6TFCapped
0MGOConn. @ Mh, 9 O' Clock. OPEN
216.1SSSBLISTERING PEELING CONCRETE
0MWM—
216.1MGOConn. @ Mh, 3 O' Clock. Active
216.1MGOMAG COAT 80% FINISH
0MWL—
216.6AMH2:30AM
12.8SSSPEELING CONCRETE

Properties (4)

custom_field_three
BLISTERING PEELING CONCRETE- 80%MAG COAT
custom_field_two
4
customer
LACSD
datetime
2016-07-06T01:16:46-07:00
