Wastewater/Activity/PacpInspection/1.0Jun 29, 2016, 05:32 PM
05 2224_05 1278_6292016_104543.mp4
- Date
- 06/29/2016
- W/O
- PENDING
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00518
- PipeID
- P06492
- Time
- 10:32 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- 06/29/16
- Pre-Cleaning
- Jetting
- Media Label
- G7163R
- Sewer Name
- 05 SO HAWTHORNE-WARFIELD AV EXT TR, SECT 4
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 19
- Purpose
- Maintenance Related
- Project
- 20160629AM_SO_HAWTHORNE_WARFIELD_AV_EXT_TRUNK_SECT_4
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 05 2224
- Downstream MH
- 05 1278
- Dir. of Survey
- Downstream
- Length Surveyed
- 213.5 ft.
- Total Length
- 213.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

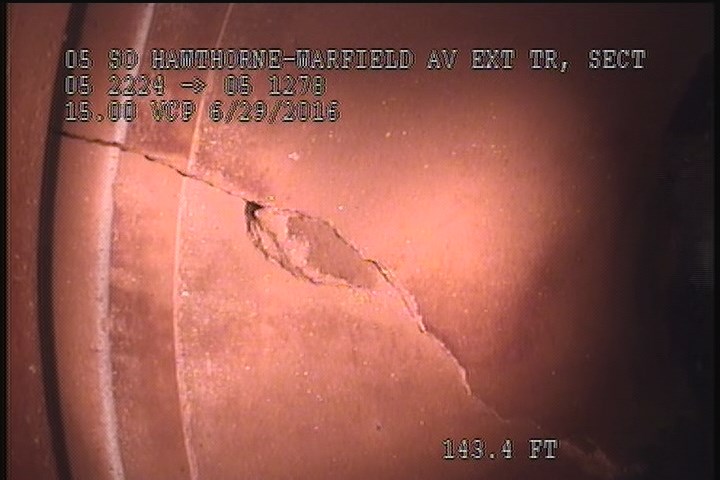

0 ft. - Water Mark, 35 %of cross sectional area

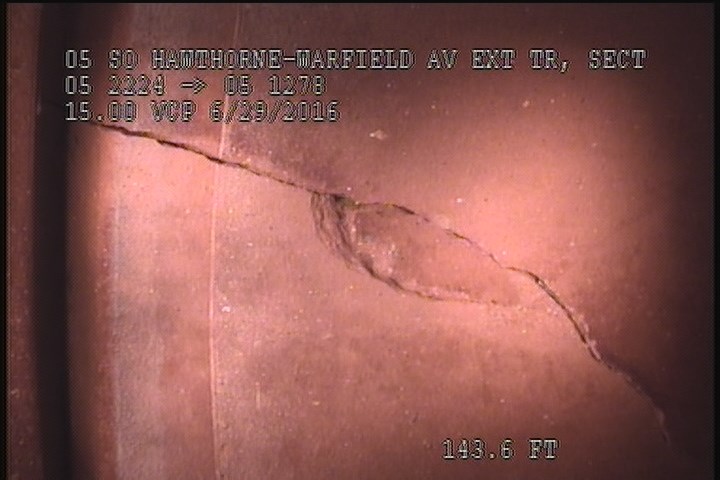

0 ft. - General Observation - POST ROOT EVALUATION

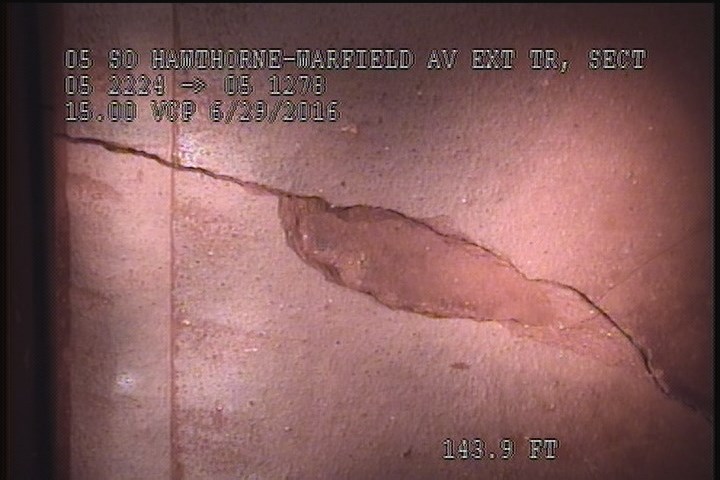

0 ft. - Upstream Manhole, Survey Begins - 10:45 AM

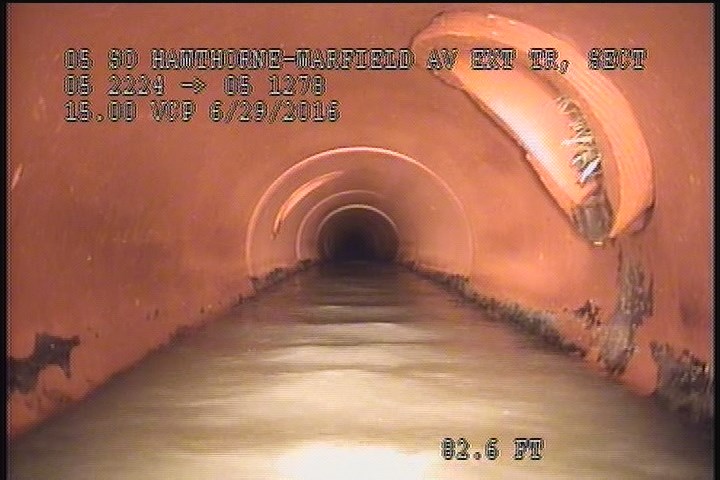

0 ft. - Water Level, 30 %of cross sectional area
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 213.5 | AMH | 10:56 AM |
| 0 | MGO | POST ROOT EVALUATION |
| 0 | AMH | 10:45 AM |
| 0 | MWL | — |
Properties (5)
- additional_info
- POST ROOT EVALUATION ONLY, ALSO CHECKING FOR ANY DAMAGE IN THE PIPE APPROX. 84' D/S
- custom_field_three
- POST ROOT EVALUATION
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-06-29T10:32:45-07:00
