Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 24, 2016, 03:47 PM

  • H 0343_STACK_6242016_090631.mp4

Date
06/24/2016
W/O
0580931
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00175
PipeID
P10793
Time
8:47 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7159
Sewer Name
H JOINT OUTFALL H - UNIT 4
City
PICO RIVERA
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
06
Purpose
Routine Assessment
Project
20160624_JOINT_OUTFALL_H_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
H 0343
Downstream MH
STACK
Dir. of Survey
Downstream
Length Surveyed
8 ft.
Total Length
8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole H 0343 to STACK
MH: H 0343MH: STACKdownstream0 ft. MGP - General Photograph - RISER0 ft. MGO - General Observation - ROOF0 ft. MGO - General Observation - RISER0 ft. AMH - Upstream Manhole, Survey Begins - 8:59 AM0 ft. MGO - General Observation - RIM1 ft. MGO - General Observation - EAST WALL2 ft. MGO - General Observation - NORTH WALL3 ft. MGO - General Observation - WEST WALL4 ft. MGO - General Observation - SOUTH WALL5 ft. MGO - General Observation - LOWER EAST WALL6 ft. MGO - General Observation - LOWER SOUTH WALL7 ft. MGO - General Observation - LOWER WEST WALL8 ft. MGO - General Observation - LOWER NORTH WALL

Observation photos (12)

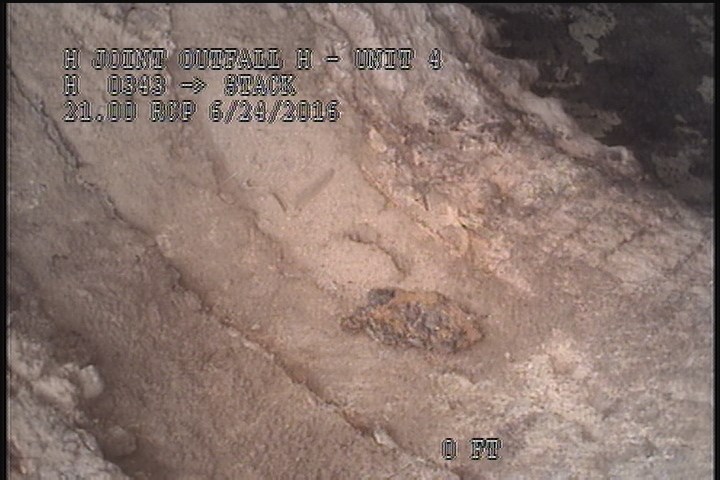

  • General Photograph - RISER

    0 ft. - General Photograph - RISER

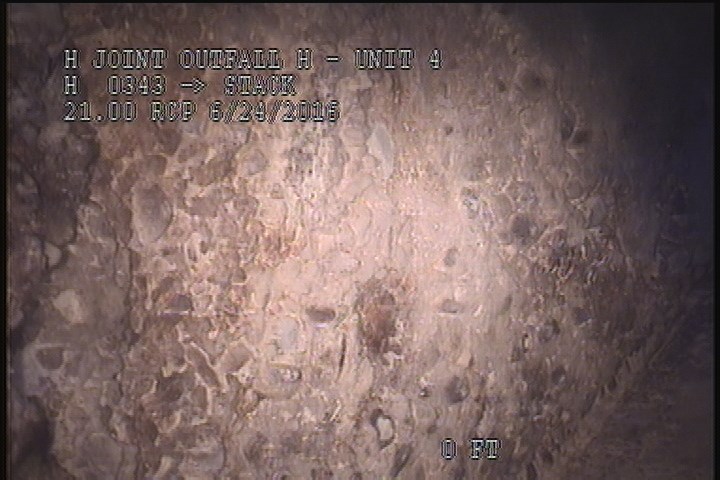

  • General Observation - ROOF

    0 ft. - General Observation - ROOF

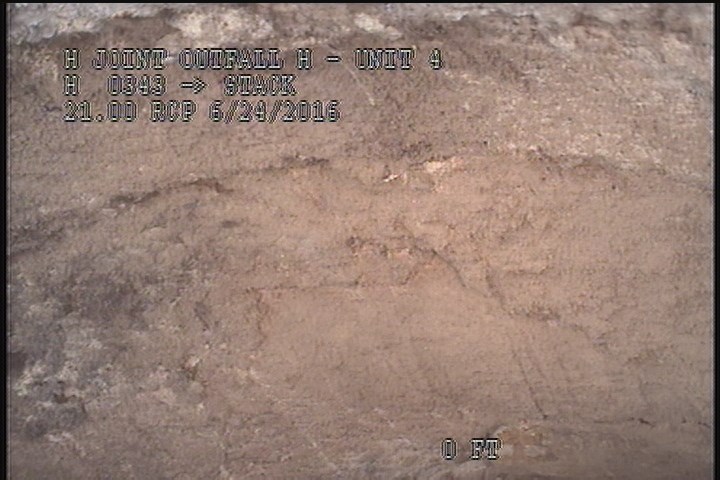

  • General Observation - RISER

    0 ft. - General Observation - RISER

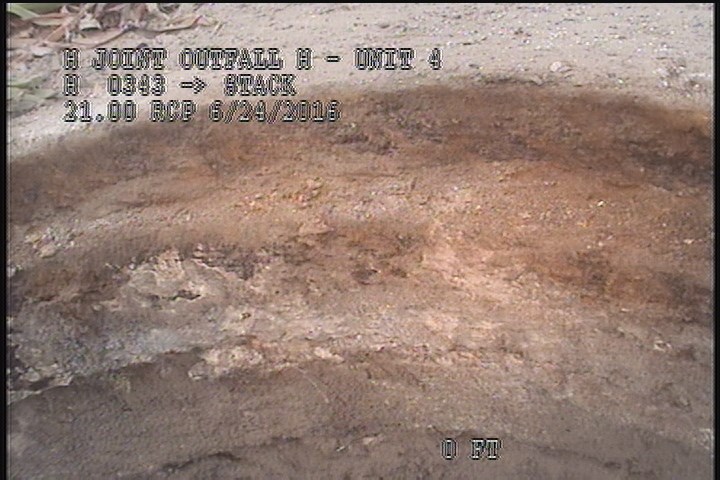

  • General Observation - RIM

    0 ft. - General Observation - RIM

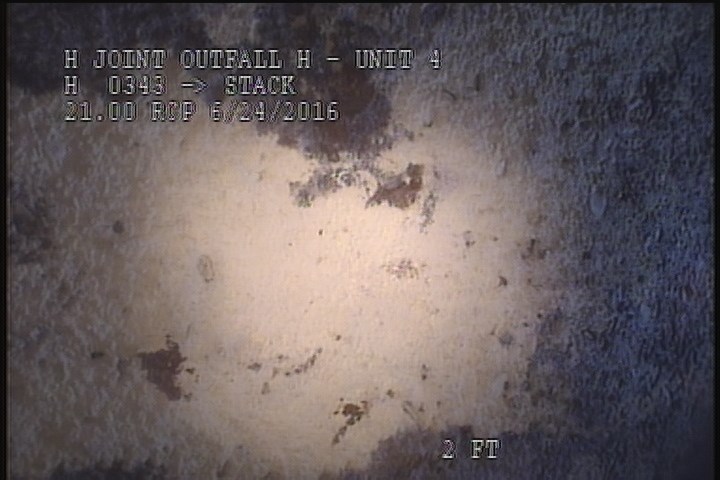

  • General Observation - EAST WALL

    1 ft. - General Observation - EAST WALL

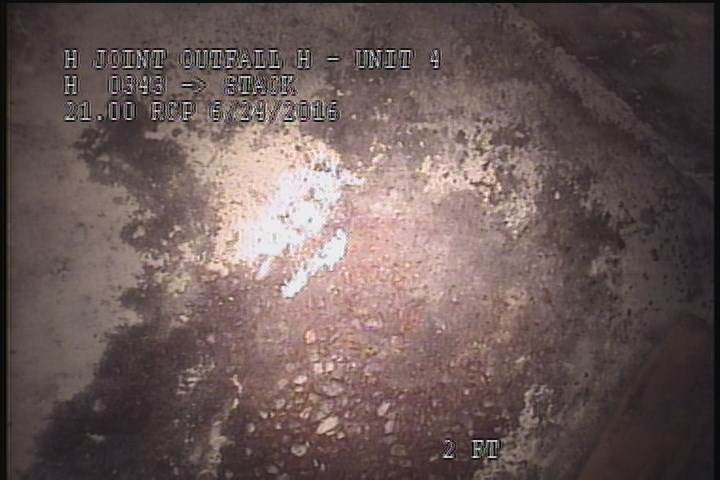

  • General Observation - NORTH WALL

    2 ft. - General Observation - NORTH WALL

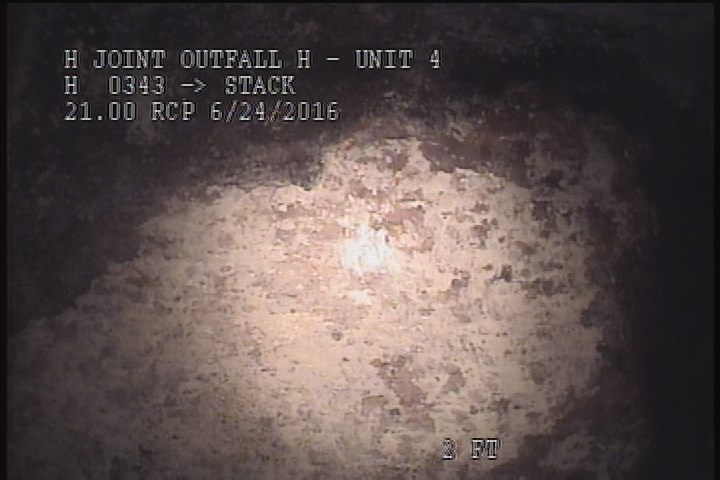

  • General Observation - WEST WALL

    3 ft. - General Observation - WEST WALL

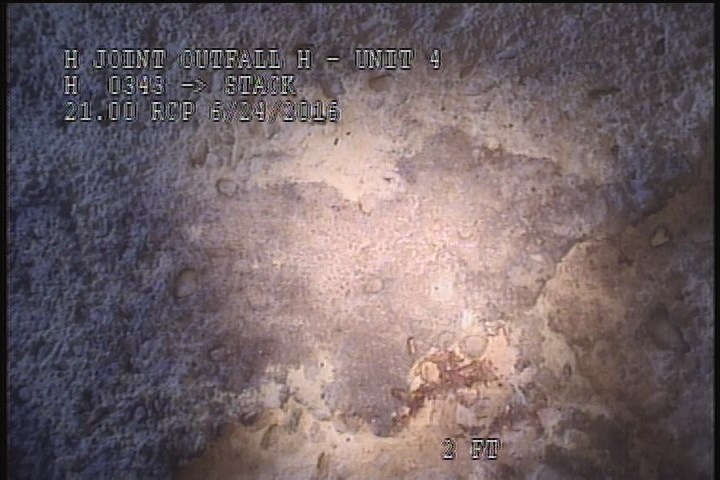

  • General Observation - SOUTH WALL

    4 ft. - General Observation - SOUTH WALL

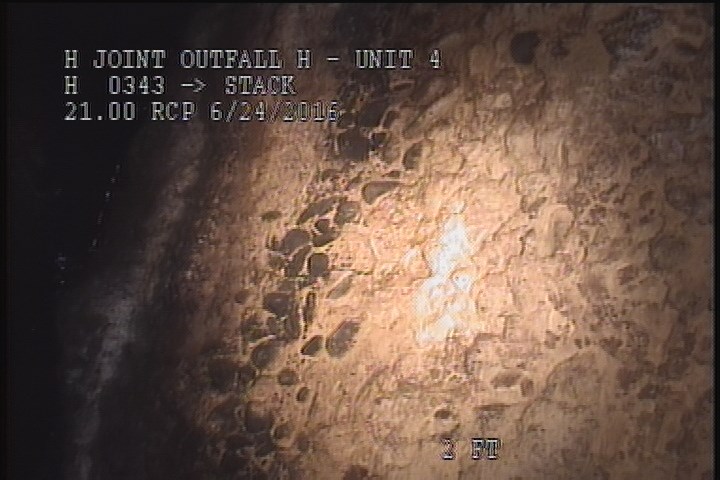

  • General Observation - LOWER EAST WALL

    5 ft. - General Observation - LOWER EAST WALL

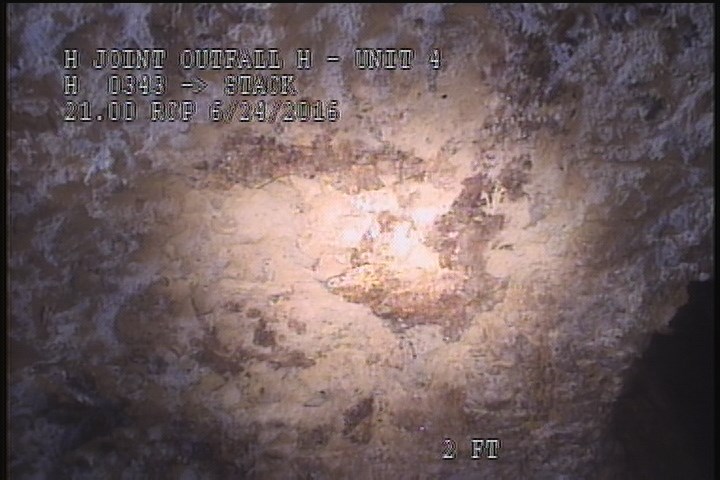

  • General Observation - LOWER SOUTH WALL

    6 ft. - General Observation - LOWER SOUTH WALL

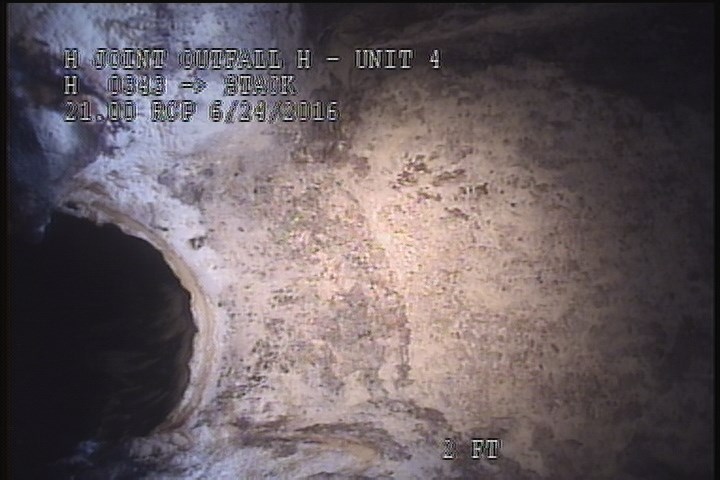

  • General Observation - LOWER WEST WALL

    7 ft. - General Observation - LOWER WEST WALL

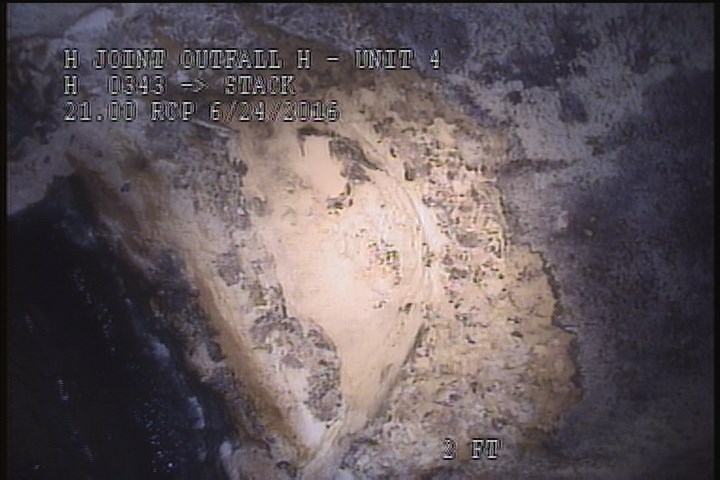

  • General Observation - LOWER NORTH WALL

    8 ft. - General Observation - LOWER NORTH WALL

All inspections of P10793Work order 0580931

Observations (13)

DistanceCodeObservation
0MGPRISER
2MGONORTH WALL
0MGOROOF
0MGORISER
7MGOLOWER WEST WALL
0AMH8:59 AM
4MGOSOUTH WALL
6MGOLOWER SOUTH WALL
3MGOWEST WALL
8MGOLOWER NORTH WALL
5MGOLOWER EAST WALL
1MGOEAST WALL
0MGORIM

Properties (5)

additional_info
MANHOLE INSPECTION ONLY
custom_field_three
CORRODED THROUGHOUT
custom_field_two
2
customer
LACSD
datetime
2016-06-24T08:47:27-07:00
