Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 23, 2016, 07:29 AM

  • 02 1486_02 1485_6232016_012723.mp4

Date
06/23/2016
W/O
0581375
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00309
PipeID
P03931
Time
12:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0167
Sewer Name
02 UNION PACIFIC TRUNK
City
COMMERCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
16
Purpose
Maintenance Related
Project
20160623MDM_UNION_PACIFIC_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
02 1486
Downstream MH
02 1485
Dir. of Survey
Downstream
Length Surveyed
271.1 ft.
Total Length
271.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 1486 to 02 1485
MH: 02 1486MH: 02 1485downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM1 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - CONCRETE PIECES1 ft. MGO - General Observation - MH# 1485 & MH# 1484 HAVE WOOD PLATES SITTING ON SHELVES COVERING PIPE185.8 ft. DSZ - Deposits Settled Other, 2 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - CONCRETE PIECE269.5 ft. MGO - General Observation - WOOD PLATE COVERING MH ON SHELVES271.1 ft. AMH - Downstream Manhole, Survey Ends - 1:45AM

Observation photos (3)

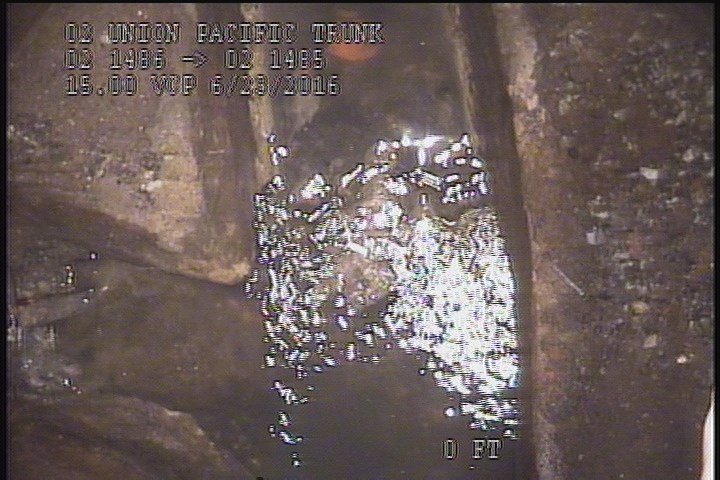

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - CONCRETE PIECES

    1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - CONCRETE PIECES

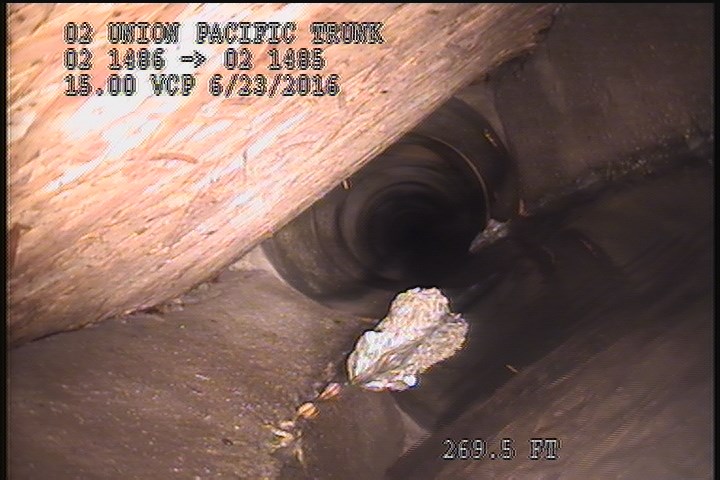

  • General Observation - WOOD PLATE COVERING MH ON SHELVES

    269.5 ft. - General Observation - WOOD PLATE COVERING MH ON SHELVES

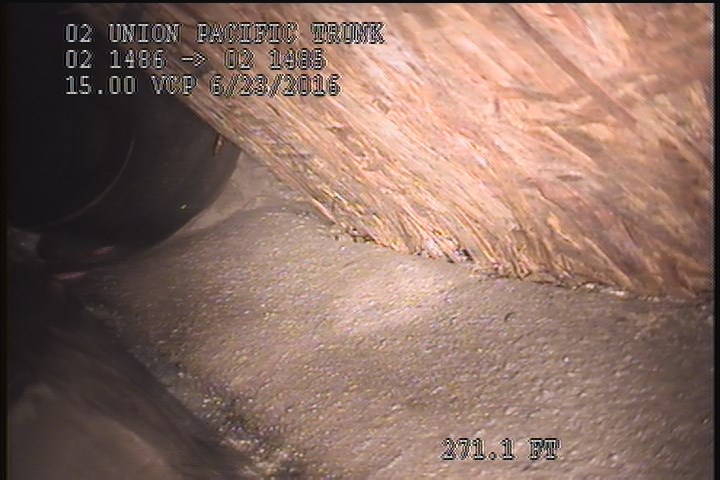

  • Downstream Manhole, Survey Ends - 1:45AM

    271.1 ft. - Downstream Manhole, Survey Ends - 1:45AM

All inspections of P03931Work order 0581375

Observations (9)

DistanceCodeObservation
0MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
1DSZCONCRETE PIECES
269.5MGOWOOD PLATE COVERING MH ON SHELVES
1MGOMH# 1485 & MH# 1484 HAVE WOOD PLATES SITTING ON SHELVES COVERING PIPE
185.8DSZCONCRETE PIECE
271.1AMH1:45AM
0MWL—
0AMH12:35AM

Properties (2)

customer
LACSD
datetime
2016-06-23T00:29:02-07:00
