Wastewater/Activity/PacpInspection/1.0Jun 20, 2016, 04:34 PM
30 0350_30 0349_6202016_095433.mp4
- Date
- 06/20/2016
- W/O
- 0568757
- Weather
- Very Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00878
- PipeID
- P17778
- Time
- 9:34 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7155
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- HERMOSA BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160620AM_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 30 0349
- Downstream MH
- 30 0350
- Dir. of Survey
- Upstream
- Length Surveyed
- 106.4 ft.
- Total Length
- 106.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (5)

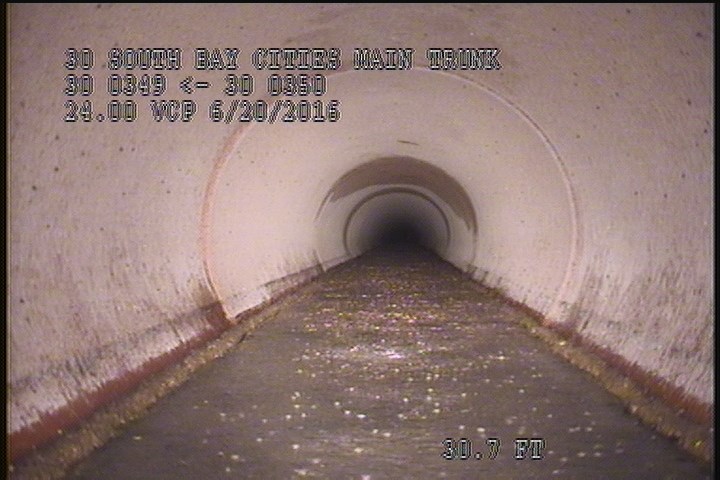

30.7 ft. - Deposits Attached Other, 15 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE/GREASE
30.7 ft. - Water Level, 20 %of cross sectional area - CHANGE, STAGNANT WATER
47.3 ft. - Water Level, 25 %of cross sectional area - CHANGE, STAGNANT WATER
52.5 ft. - Water Level, 25 %of cross sectional area - CHANGE, STAGNANT WATER
71.8 ft. - Water Level, 45 %of cross sectional area - CHANGE, STAGNANT WATER
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 104.9 | DAZ | SLUDGE/GREASE |
| 0 | MWM | — |
| 71.8 | MWL | CHANGE, STAGNANT WATER |
| 0 | AMH | 9:54 AM |
| 30.7 | DAZ | SLUDGE/GREASE |
| 0 | MWL | — |
| 30.7 | MWL | CHANGE, STAGNANT WATER |
| 106.4 | AMH | 10:06 AM |
| 52.5 | MWL | CHANGE, STAGNANT WATER |
| 47.3 | MWL | CHANGE, STAGNANT WATER |
Properties (4)
- additional_info
- STAGNANT WATER, SLUDGE/GREASE THROUGHOUT THE REACH
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-20T09:34:49-07:00
