Wastewater/Activity/PacpInspection/1.0Jun 18, 2016, 10:18 AM
- Date
- 06/18/2016
- W/O
- 0574862
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00325
- PipeID
- P08217
- Time
- 3:18 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6721
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- 20160618MDM_JOA_1A_SAN_JOSE_CREEK_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 63 in.
- Upstream MH
- A 0306
- Downstream MH
- A 0307
- Dir. of Survey
- Upstream
- Length Surveyed
- 8.1 ft.
- Total Length
- 8.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (4)

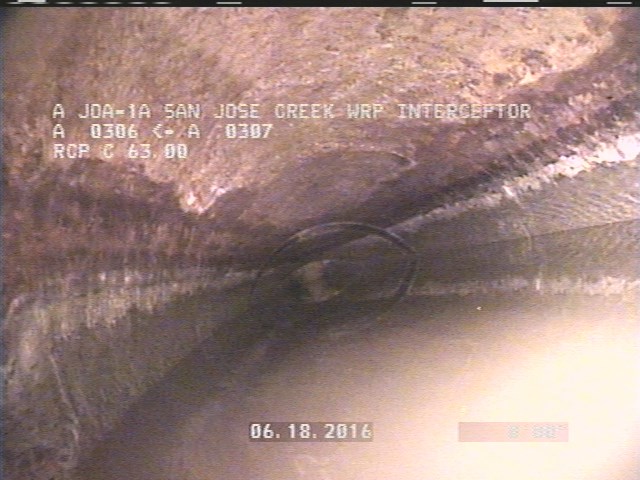

0 ft. - Water Mark, 80 %of cross sectional area

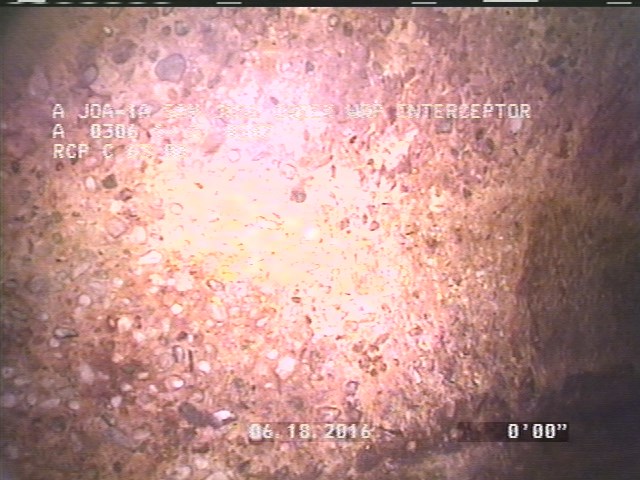

2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

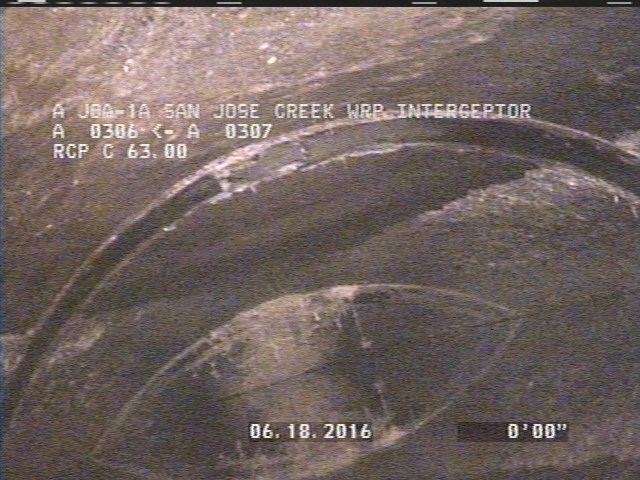

6 ft. - General Observation - GASKETS IN PLACE

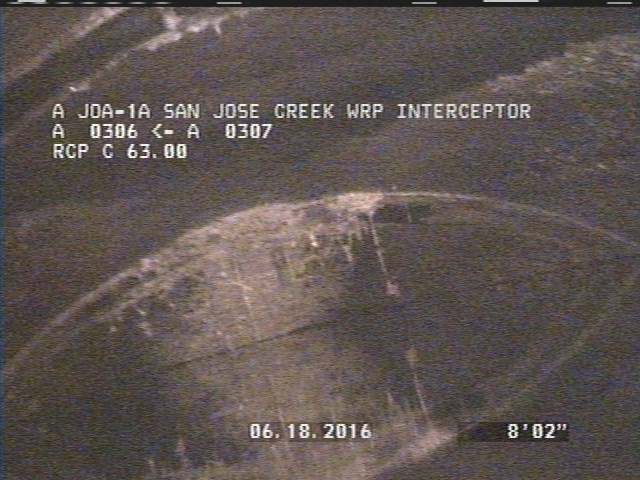

8.1 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 8.1 | MSA | UPLEG DOWNSTREAM SIPHON |
| 7.9 | SAP | SEVERE AGG |
| 2 | SAP | SEVERE AGG |
| 0 | MWL | — |
| 6 | MGO | GASKETS IN PLACE |
| 0 | MWM | — |
| 0 | AMH | 3:55AM |
Properties (5)
- additional_info
- UPLEG DOWNSTREAM SIPHON
- custom_field_three
- SEVERE AGG PROJECTING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-18T03:18:00-07:00
