Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 10, 2016, 07:26 AM

  • 02 1644_02 1643_6102016_010627.mp4

Date
06/10/2016
W/O
0578486
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00235
PipeID
P04078
Time
12:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0155R
Sewer Name
02 ATLANTIC AVENUE TRUNK
City
LOS ANGLES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Maintenance Related
Project
20160610MDM_ATLANTIC_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
02 1644
Downstream MH
02 1643
Dir. of Survey
Downstream
Length Surveyed
299.2 ft.
Total Length
299.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
2112
O&M Rating
4
Overall Index
1
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 1644 to 02 1643
MH: 02 1644MH: 02 1643downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:45AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area76.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped79.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open116.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped159 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped201.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped215.4 ft. RFJ - Roots Fine Joint, from 11 to 01 o'clock, within 8 inches of joint: YESR - 1%244.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped260.7 ft. RFJ - Roots Fine Joint, at 01 o'clock, within 8 inches of joint: YESR - 1%283.7 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open 80% BLOCKED ROOTS299.2 ft. AMH - Downstream Manhole, Survey Ends - 1:05AM

Observation photos (1)

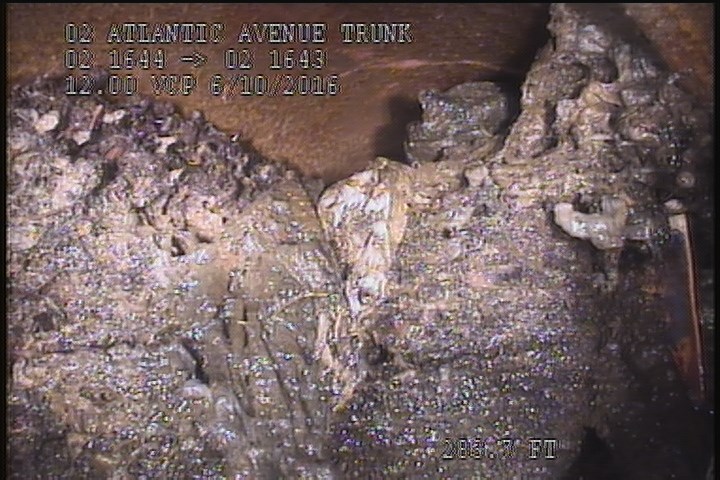

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open 80% BLOCKED ROOTS

    283.7 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open 80% BLOCKED ROOTS

All inspections of P04078Work order 0578486

Observations (13)

DistanceCodeObservation
244.1TFCCapped
0AMH12:45AM
116.1TFCCapped
0MWM—
260.7RFJ1%
299.2AMH1:05AM
283.7TFDOpen 80% BLOCKED ROOTS
0MWL—
79.6TBOpen
159TFCCapped
76.9TFCCapped
201.5TFCapped
215.4RFJ1%

Properties (3)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2016-06-10T00:26:40-07:00
