Wastewater/Activity/PacpInspection/1.0Jun 7, 2016, 03:51 PM
C 0177_C 0176_672016_085448.mp4
- Date
- 06/07/2016
- W/O
- 0568717
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00130
- PipeID
- P09701
- Time
- 8:51 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- G7145
- Sewer Name
- C JOINT OUTFALL C - UNIT 5C
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20160607AM_JOINT_OUTFALL_C_UNIT_5C
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- C 0177
- Downstream MH
- C 0176
- Dir. of Survey
- Downstream
- Length Surveyed
- 373.1 ft.
- Total Length
- 373.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (3)

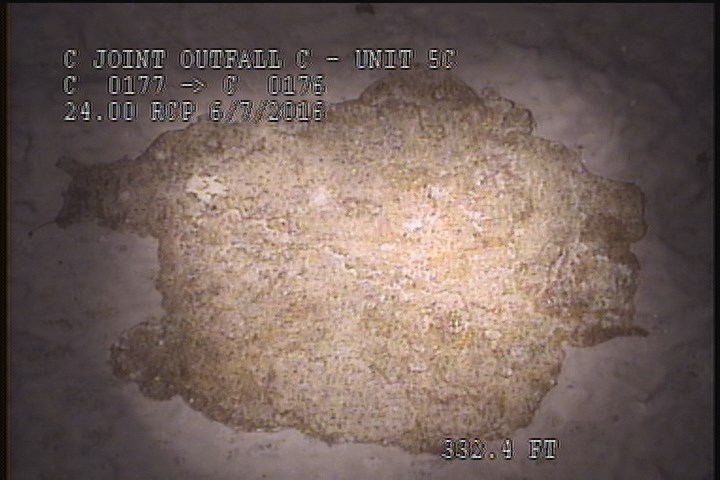

0 ft. - Water Level, 0 %of cross sectional area - DRY LINE

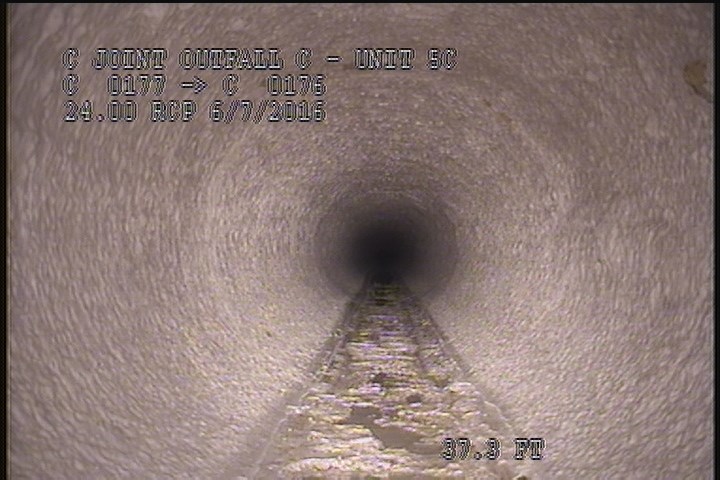

0 ft. - Upstream Manhole, Survey Begins - 8:53 AM

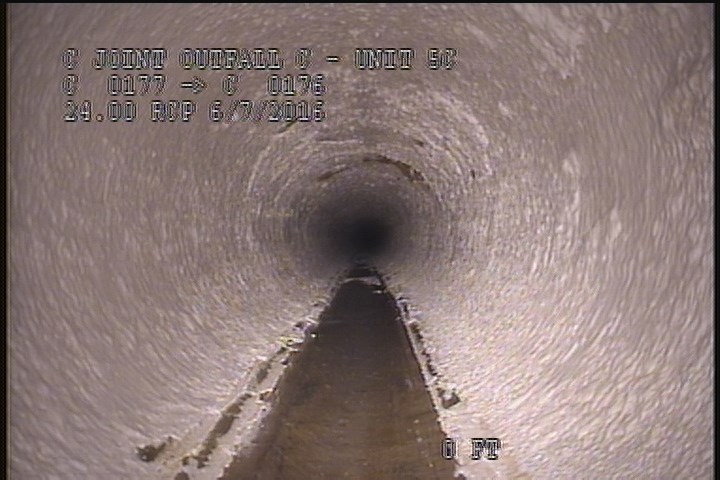

2 ft. - General Observation - 95% - 100% MAG COAT FROM 07 TO 05 O'CLOCK, START
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | DRY LINE |
| 371.9 | MGO | SPALLING & EXP. AGG. SPORADICALLY THROUGHOUT THE REACH |
| 371.9 | MGO | 95% - 100% MAG COAT FROM 07 TO 05 O'CLOCK, FINISH |
| 373.1 | AMH | 9:13 AM |
| 2 | MGO | 95% - 100% MAG COAT FROM 07 TO 05 O'CLOCK, START |
| 0 | AMH | 8:53 AM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-07T08:51:00-07:00
