Wastewater/Activity/PacpInspection/1.0Jun 7, 2016, 08:16 AM
15 0123_15 0924_672016_032150.mp4
- Date
- 06/07/2016
- W/O
- 0568722
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00635
- PipeID
- P12063
- Time
- 1:16 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0152
- Sewer Name
- 15 TYLER AVENUE RELIEF TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20160606MDM_TYLER_AVENUE_RELIEF_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0924
- Downstream MH
- 15 0123
- Dir. of Survey
- Upstream
- Length Surveyed
- 3 ft.
- Total Length
- 3 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

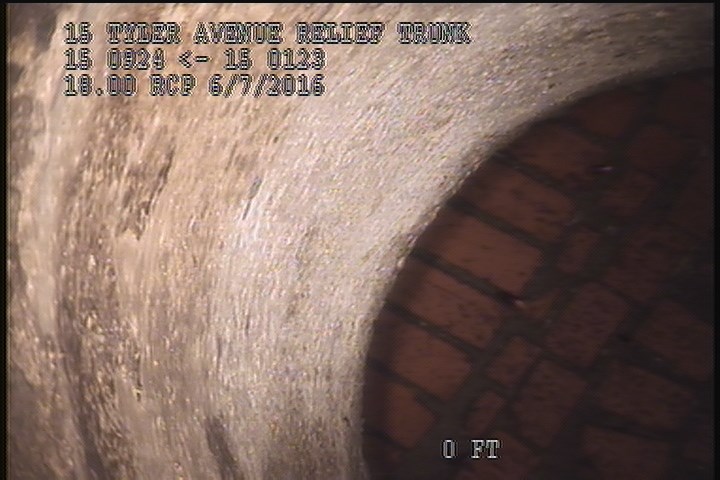

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING LAITANCE COAT

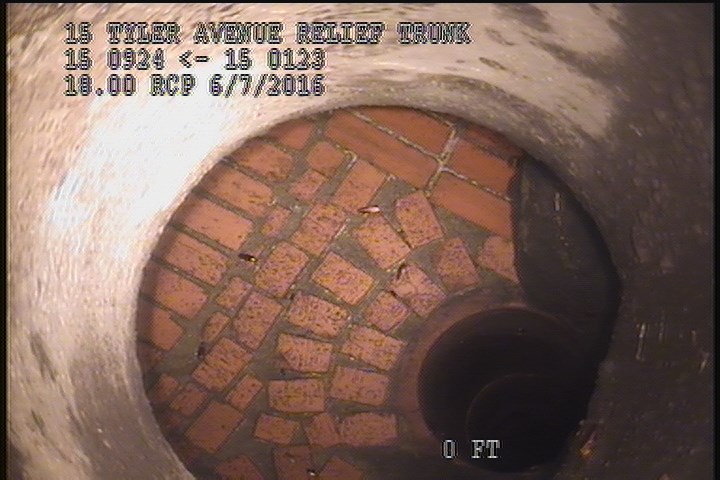

3 ft. - Upstream Manhole, Survey Ends - 3:00AM
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | DRY LINE |
| 0 | MWM | — |
| 3 | AMH | 3:00AM |
| 2 | SSS | BLISTERING LAITANCE COAT |
| 0 | AMH | 2:45AM |
Properties (5)
- custom_field_three
- BLISTERING LAITANCE COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-07T01:16:14-07:00
- year_laid
- 19801010
