Wastewater/Activity/PacpInspection/1.0Jun 4, 2016, 12:48 PM
15 0371_15 0370_642016_064502.mp4
- Date
- 06/04/2016
- W/O
- 0563341
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00598
- PipeID
- P12297
- Time
- 5:48 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0150
- Sewer Name
- 15 BALDWIN PARK TRUNK
- City
- BALDWIN PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- 20160604MDM_BALDWIN_PARK_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 15 0371
- Downstream MH
- 15 0370
- Dir. of Survey
- Downstream
- Length Surveyed
- 315.9 ft.
- Total Length
- 315.9 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

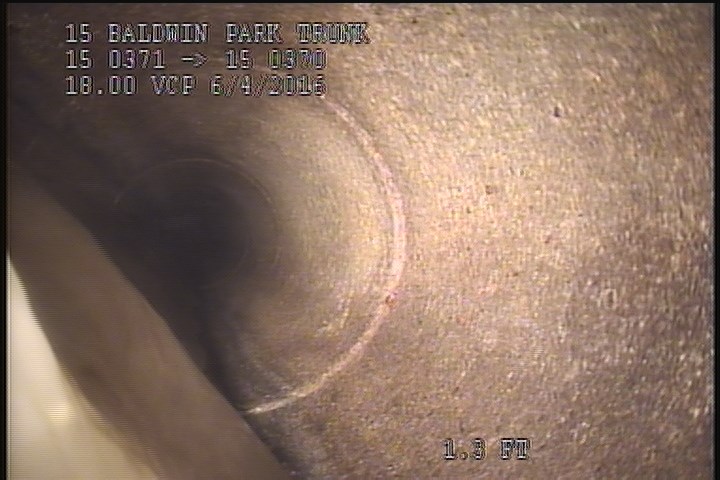

1 ft. - Material Change, Concrete pipe (non-reinfored) - PIPE IS NOT VCP
2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

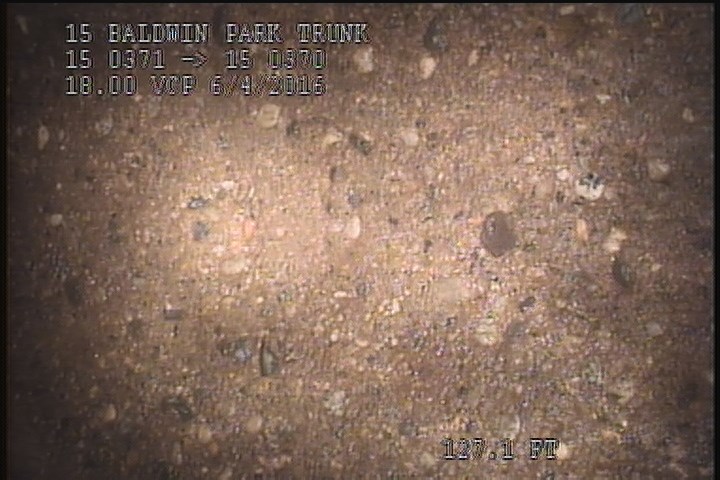

127.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 1 | MMC | PIPE IS NOT VCP |
| 315.5 | SAV | SEVERE AGG |
| 315.5 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 127.1 | SAV | SEVERE AGG |
| 315.9 | AMH | 7:05AM |
| 2 | SAV | SEVERE AGG |
| 0 | MWL | — |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 0 | AMH | 6:45AM |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SEVERE AGG VISIBLE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-04T05:48:24-07:00
