Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 2, 2016, 08:00 AM

  • 01 0955_01 0954_622016_035546.mp4

Date
06/02/2016
W/O
0568745
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01792
Time
1:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0146
Sewer Name
01 WRIGHT ROAD TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20160602MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0955
Downstream MH
01 0954
Dir. of Survey
Downstream
Length Surveyed
276.4 ft.
Total Length
276.4 ft.
Structural Index
3
Structural Quick
3721
Structural Rating
23
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole 01 0955 to 01 0954
MH: 01 0955MH: 01 0954downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:35AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active45.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE49.8 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE51.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE61.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT70.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT92.1 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H130.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H133.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish163.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT241.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT246.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT261.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT276.4 ft. AMH - Downstream Manhole, Survey Ends - 4:10AM

Observation photos (4)

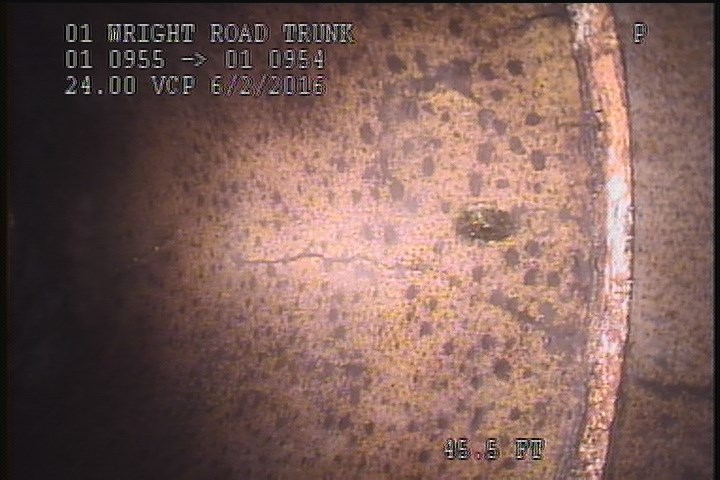

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    45.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

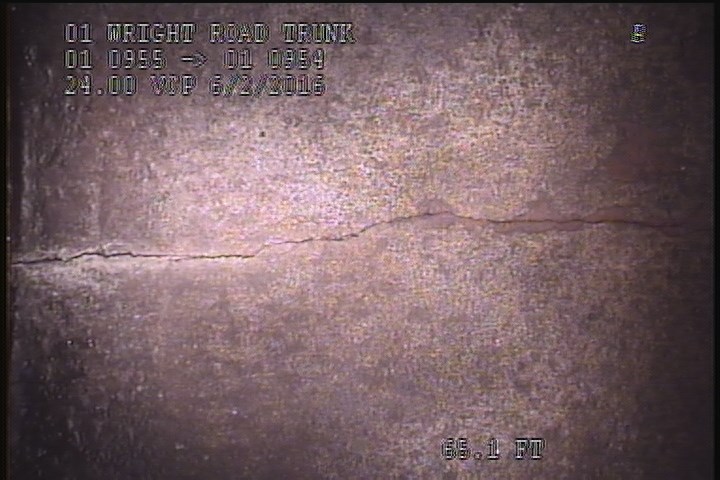

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    61.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

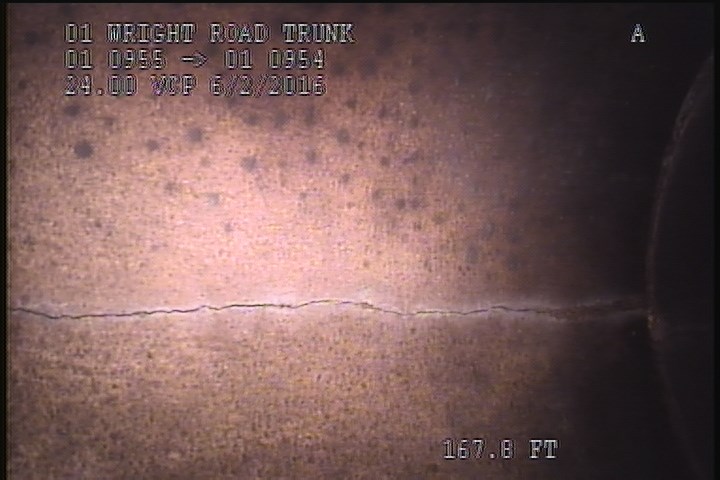

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    163.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

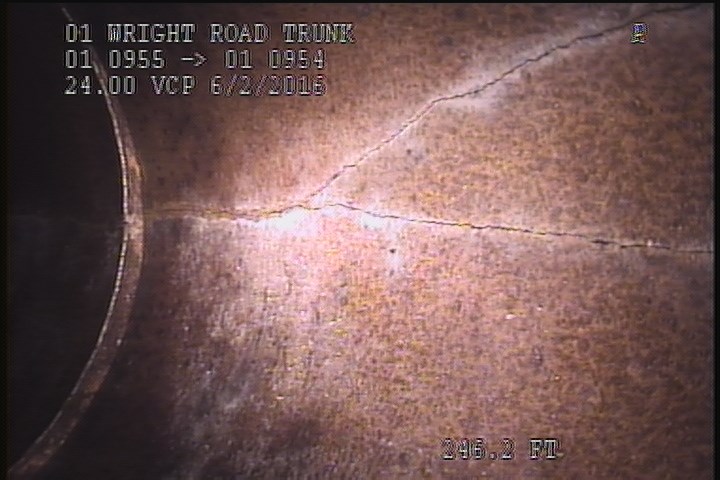

  • Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

    246.2 ft. - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SLIGHT

All inspections of P01792Work order 0568745

Observations (17)

DistanceCodeObservation
61.2FLSLIGHT
276.4AMH4:10AM
0AMH3:35AM
0MWL—
133.5FL—
51.1FLHAIRLINE
246.2FCSLIGHT
0MWM—
261.8FLSLIGHT
92.1FLH
130.2FLH
163.2FLSLIGHT
241.8FLSLIGHT
49.8FLHAIRLINE
70.6FLSLIGHT
0MGOConn. @ Mh, 3 O' Clock. Active
45.5FLHAIRLINE

Properties (5)

custom_field_three
SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-06-02T01:00:00-07:00
year_laid
19280228
