Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 31, 2016, 09:55 AM

  • 21 0661_21 0660_5312016_042645.mp4

Date
05/31/2016
W/O
0563434
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00766
PipeID
P15811
Time
2:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0144
Sewer Name
21 FIRST STREET TRUNK, SECTS 1&2
City
POMONA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
14
Purpose
Capital Improvement Program Assesment
Project
20160531MDM_FRIST_STREET_TRUNK_SECTS_1_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
14 in.
Upstream MH
21 0661
Downstream MH
21 0660
Dir. of Survey
Downstream
Length Surveyed
157.8 ft.
Total Length
157.8 ft.
Structural Index
2
Structural Quick
382E
Structural Rating
84
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 21 0661 to 21 0660
MH: 21 0661MH: 21 0660downstream0 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW STOPLOG IN PLACE0 ft. AMH - Upstream Manhole, Survey Begins - 3::55AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN8 ft. MGO - General Observation - 14" VCP22.5 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SLIGHT30.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT30.3 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT43 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - HAIRLINE53.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H55.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H68.6 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES - H76.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H79.1 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H86.5 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - H89 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT94.4 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES - H97.6 ft. FC - Fracture Circumferential, from 10 to 04 o'clock, within 8 inches of joint: YES - H101.8 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H109.8 ft. FC - Fracture Circumferential, from 10 to 03 o'clock, within 8 inches of joint: YES - H112.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H114.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT114.6 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT117.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT117.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H117.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish - SLIGHT119.6 ft. FC - Fracture Circumferential, from 08 to 01 o'clock, within 8 inches of joint: YES - SLIGHT122.1 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT127.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT132.5 ft. FS - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT135.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SLIGHT135.1 ft. FS - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES, Start - MODERATE135.7 ft. FS - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES - MODERATE135.7 ft. FS - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES, Finish - SLIGHT137.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT140.3 ft. FS - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES - MODERATE142.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE143.1 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT145.4 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT145.4 ft. FS - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES, Finish - MODERATE147.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H150.5 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT152.9 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SLIGHT155.3 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - HAIRLINE155.3 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - SLIGHT155.3 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - SLIGHT157.8 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM

Observation photos (6)

  • General Observation - 14" VCP

    8 ft. - General Observation - 14" VCP

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    114.6 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start - SLIGHT

  • Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    132.5 ft. - Fracture Spiral, from 07 to 10 o'clock, within 8 inches of joint: YES, Start - SLIGHT

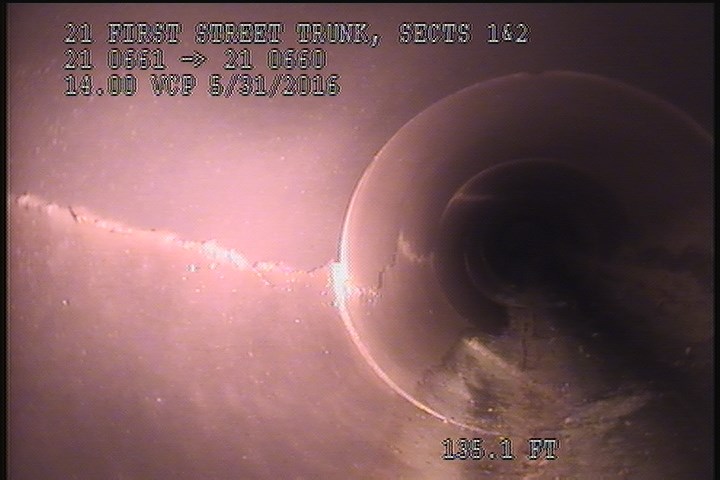

  • Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES, Start - MODERATE

    135.1 ft. - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES, Start - MODERATE

  • Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES - MODERATE

    135.7 ft. - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES - MODERATE

  • Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES - MODERATE

    140.3 ft. - Fracture Spiral, from 10 to 01 o'clock, within 8 inches of joint: YES - MODERATE

All inspections of P15811Work order 0563434

Observations (47)

DistanceCodeObservation
117.4FCSLIGHT
30.3FCSLIGHT
155.3FCHAIRLINE
53.3FLH
122.1FCSLIGHT
101.8FCH
114.6FLSLIGHT
55.8FCH
94.4FCH
145.4FCSLIGHT
145.4FSMODERATE
117.4FCH
8MGO14" VCP
150.5FCSLIGHT
132.5FSSLIGHT
0MWLNO FLOW STOPLOG IN PLACE
117.7FLSLIGHT
112.4FCH
135.1FCSLIGHT
140.3FSMODERATE
43FLHAIRLINE
22.5FCSLIGHT
152.9FCSLIGHT
157.8AMH4:55AM
143.1FCSLIGHT
135.7FSMODERATE
127.3FCSLIGHT
142.9FCHAIRLINE
79.1FCH
137.8FCSLIGHT
89FCSLIGHT
109.8FCH
76.5FCH
0AMH3::55AM
147.6FCH
119.6FCSLIGHT
97.6FCH
30.3FCSLIGHT
0MWM—
86.5FCH
135.1FSMODERATE
135.7FSSLIGHT
114.6FCSLIGHT
0MGOConn. @ Mh, 3 O' Clock. OPEN
155.3FCSLIGHT
155.3FLSLIGHT
68.6FCH

Properties (4)

custom_field_three
MODRATE SPRIAL FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2016-05-31T02:55:00-07:00
