Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 28, 2016, 10:28 AM

  • 05 2356_05 2355_5282016_045649.mp4

Date
05/28/2016
W/O
0563309
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00506
PipeID
P07469
Time
3:28 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0142
Sewer Name
05 PALOS VERDES NORTH SLOPE RELIEF TRUNK, SECT 1 RPLCMNT
City
PALO VERDES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Routine Assessment
Project
20160528MDM_PALOS_VERDES_NORTH_SLOPE_RELIEF_TRUNK_SECT_1_RPLCMNT
Material
PEP
Shape
Circular
Height
18 in.
Upstream MH
05 2356
Downstream MH
05 2355
Dir. of Survey
Downstream
Length Surveyed
468.8 ft.
Total Length
468.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 05 2356 to 05 2355
MH: 05 2356MH: 05 2355downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:40AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active PIPE IN MH STACK3.4 ft. MGO - General Observation - 18" PEP116.5 ft. MGO - General Observation - 18" PEP116.5 ft. MGP - General Photograph - PEP278.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - Open292.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open300.6 ft. MGO - General Observation - 18" PEP416.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active428.6 ft. MGO - General Observation - 18" PEP468.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN STOPLOG IN PLACE468.8 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (6)

  • General Observation - 18" PEP

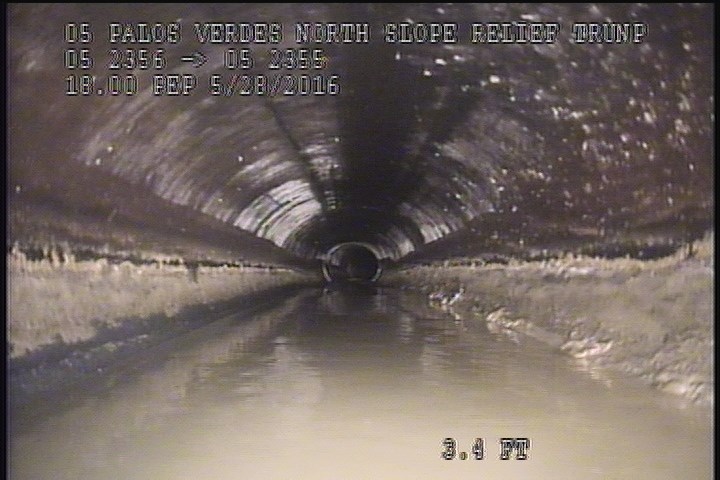

    3.4 ft. - General Observation - 18" PEP

  • General Observation - 18" PEP

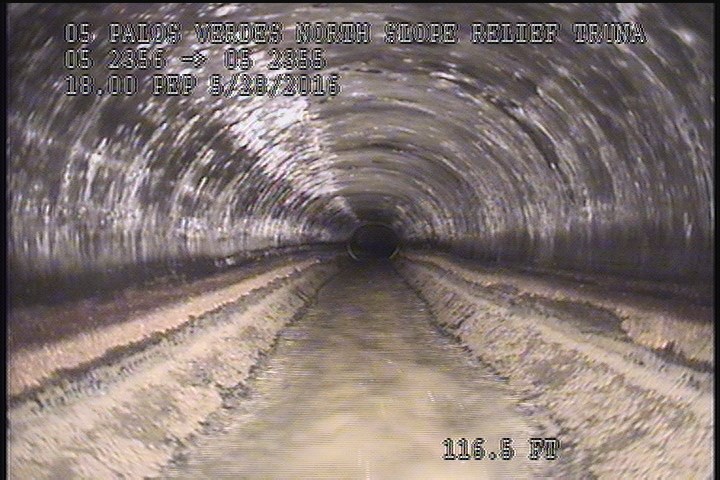

    116.5 ft. - General Observation - 18" PEP

  • General Photograph - PEP

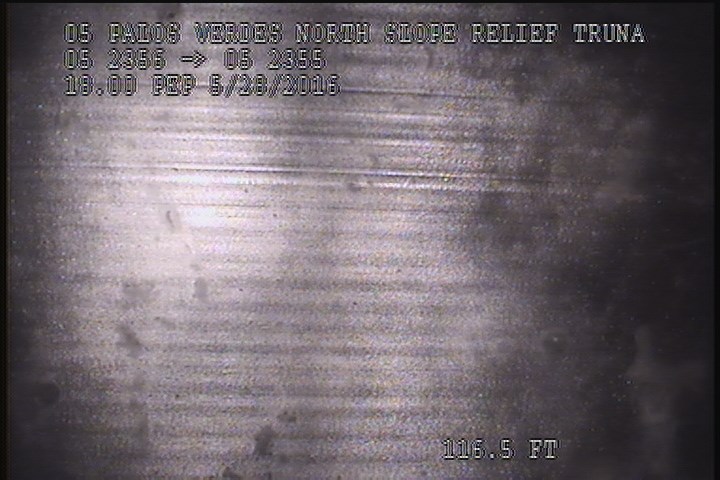

    116.5 ft. - General Photograph - PEP

  • General Observation - 18" PEP

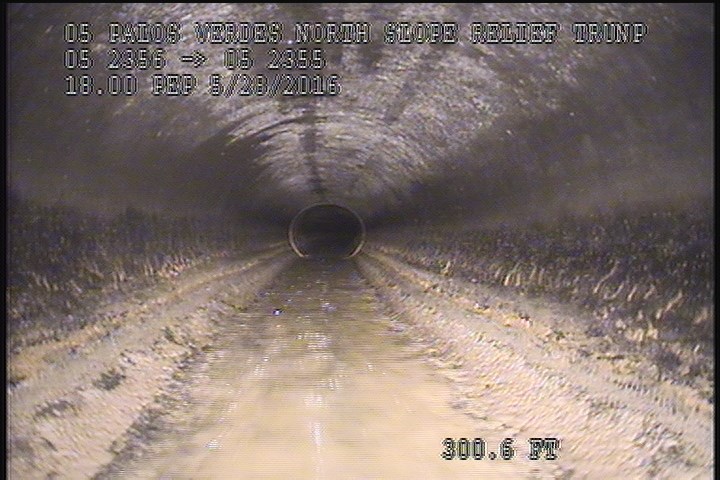

    300.6 ft. - General Observation - 18" PEP

  • General Observation - 18" PEP

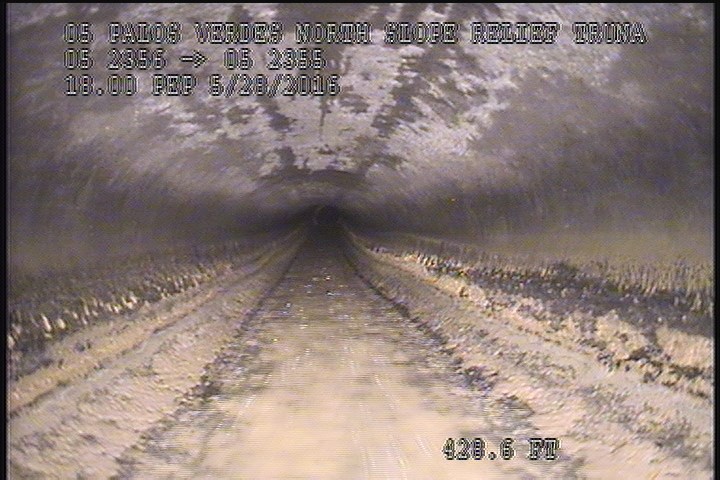

    428.6 ft. - General Observation - 18" PEP

  • General Observation - Conn. @ Mh, 3 O' Clock. OPEN STOPLOG IN PLACE

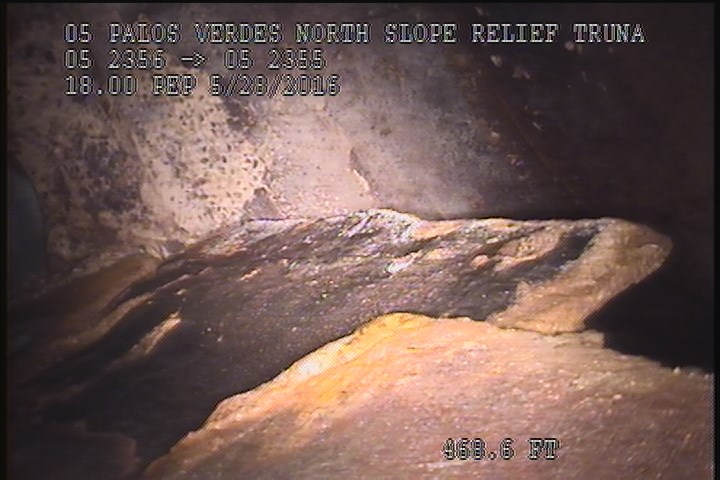

    468.4 ft. - General Observation - Conn. @ Mh, 3 O' Clock. OPEN STOPLOG IN PLACE

All inspections of P07469Work order 0563309

Observations (14)

DistanceCodeObservation
468.4MGOConn. @ Mh, 3 O' Clock. OPEN STOPLOG IN PLACE
300.6MGO18" PEP
0MWM—
428.6MGO18" PEP
0AMH4:40AM
116.5MGO18" PEP
116.5MGPPEP
0MWL—
278.8TBOpen
0MGOConn. @ Mh, 3 O' Clock. Active PIPE IN MH STACK
416.7TBActive
292.3TFOpen
3.4MGO18" PEP
468.8AMH5:25AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2016-05-28T03:28:18-07:00
