Wastewater/Activity/PacpInspection/1.0May 28, 2016, 10:25 AM
05 2357_05 2356_5282016_044002.mp4
- Date
- 05/28/2016
- W/O
- 0563309
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00506
- PipeID
- P07470
- Time
- 3:25 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0142
- Sewer Name
- 05 PALOS VERDES NORTH SLOPE RELIEF TRUNK, SECT 1 RPLCMNT
- City
- PALO VERDES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- 20160528MDM_PALOS_VERDES_NORTH_SLOPE_RELIEF_TRUNK_SECT_1_RPLCMNT
- Material
- PEP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 05 2357
- Downstream MH
- 05 2356
- Dir. of Survey
- Downstream
- Length Surveyed
- 33.8 ft.
- Total Length
- 33.8 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 4
- O&M Quick
- 5222
- O&M Rating
- 14
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (3)

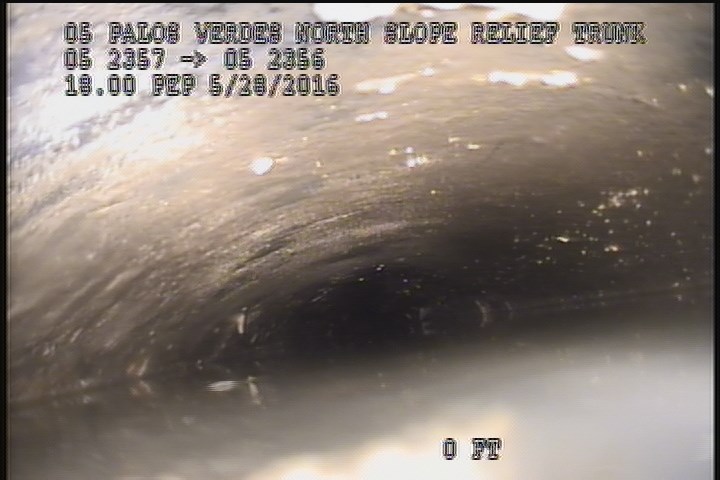

4 ft. - General Observation - 18" PEP

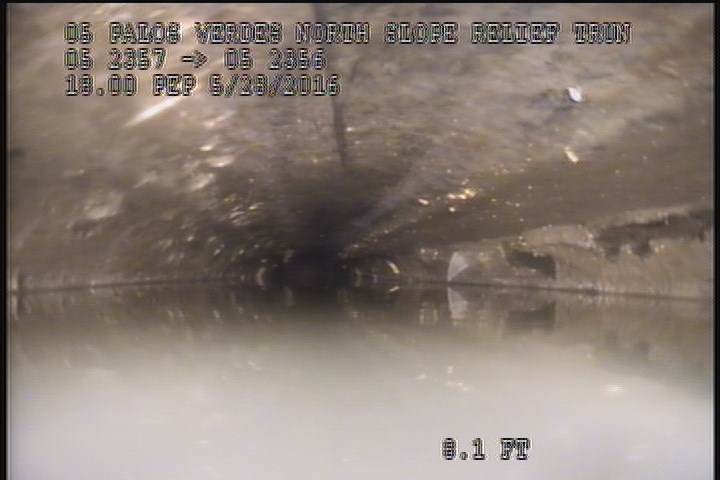

8 ft. - Water Level, 70 %of cross sectional area

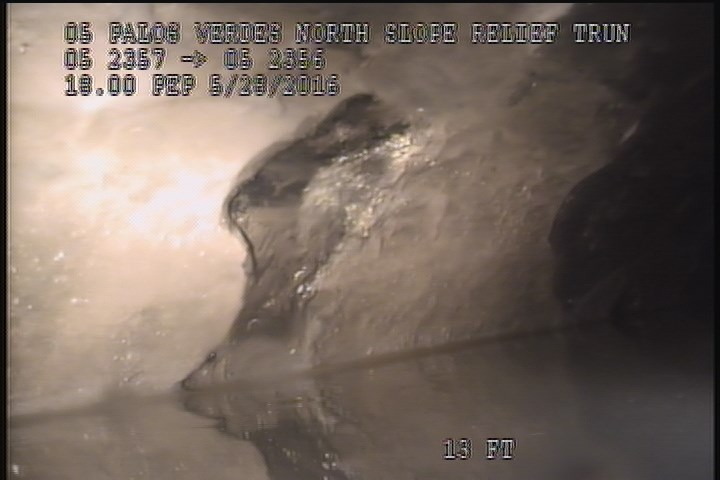

13 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: NO, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | DSZ | SLUDGE |
| 0 | MWL | — |
| 29.2 | MWL | — |
| 8 | MWL | — |
| 33.2 | DAGS | — |
| 4 | MGO | 18" PEP |
| 13 | DAGS | — |
| 2 | MWLS | — |
| 33.2 | MGO | Conn. @ Mh, 3 O' Clock. Active PIPE IN STACK |
| 33.8 | AMH | 4:30AM |
| 0 | MWM | — |
| 29.2 | MWM | — |
| 0 | AMH | 4:15AM |
Properties (4)
- custom_field_three
- POSIBLE SAG IN MH
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-28T03:25:38-07:00
