Wastewater/Activity/PacpInspection/1.0May 28, 2016, 03:14 PM
30 0086_18 0085_5282016_081648.mp4
- Date
- 05/28/2016
- W/O
- 0568757
- Weather
- Dry
- Operator/Surveyor
- MIRANDA
- Sewer ID
- Z00878
- PipeID
- P17794
- Time
- 8:14 AM
- Certificate
- U-1014-06022542
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7134
- Sewer Name
- 30 SOUTH BAY CITIES MAIN TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- 20160528AM_SOUTH_BAY_CITIES_MAIN_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 18 0085
- Downstream MH
- 30 0086
- Dir. of Survey
- Upstream
- Length Surveyed
- 26.5 ft.
- Total Length
- 26.5 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

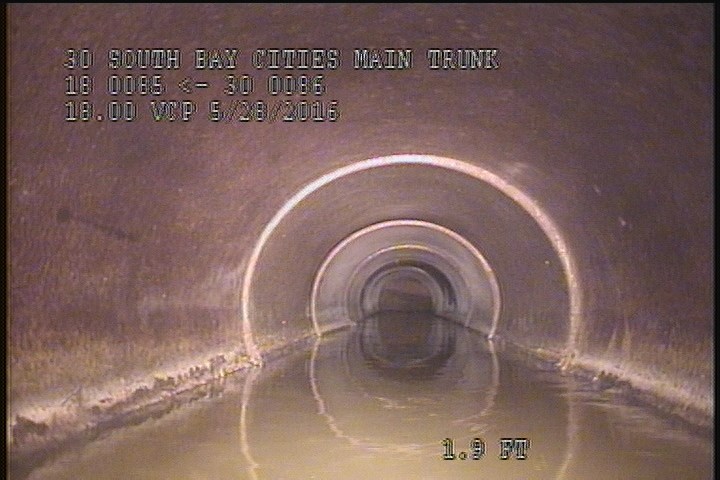

0 ft. - Downstream Manhole, Survey Begins - 8:16 AM

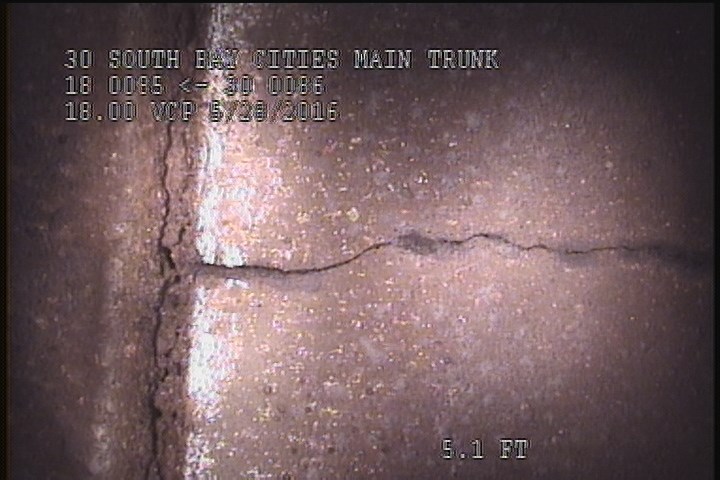

5.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

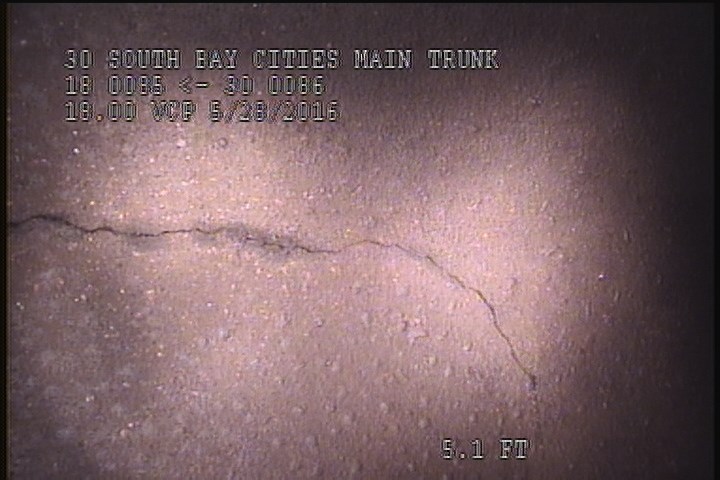

5.1 ft. - Crack Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 25 | MGO | SLIGHT GREASE THROUGHOUT THE REACH |
| 0 | MWM | — |
| 0 | AMH | 8:16 AM |
| 5.1 | CL | — |
| 5.1 | CC | — |
| 26.5 | AMH | 8:22 AM, PRESSURE PLATE |
Properties (3)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-28T08:14:52-07:00
