Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2016, 04:54 PM

  • 18 0273_18 0705_5252016_095941.mp4

Date
05/25/2016
W/O
0568850
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00702
PipeID
P14101
Time
9:54 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7131
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
20160523AM_SHOEMAKER_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
18 0273
Downstream MH
18 0705
Dir. of Survey
Downstream
Length Surveyed
51.3 ft.
Total Length
51.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0273 to 18 0705
MH: 18 0273MH: 18 0705downstream0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 9:57 AM0 ft. MWM - Water Mark, 55 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MGO - General Observation - ROACHES INSIDE THE MH.2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO, Start50.4 ft. MGO - General Observation - ROACHES INSIDE THE MH.50.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish50.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish51.2 ft. MGO - General Observation - ACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK51.3 ft. AMH - Downstream Manhole, Survey Ends - 10:07 AM

Observation photos (2)

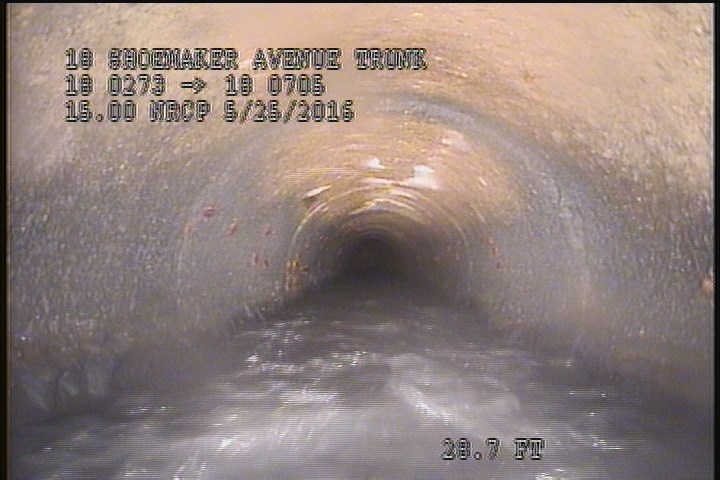

  • Upstream Manhole, Survey Begins - 9:57 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:57 AM

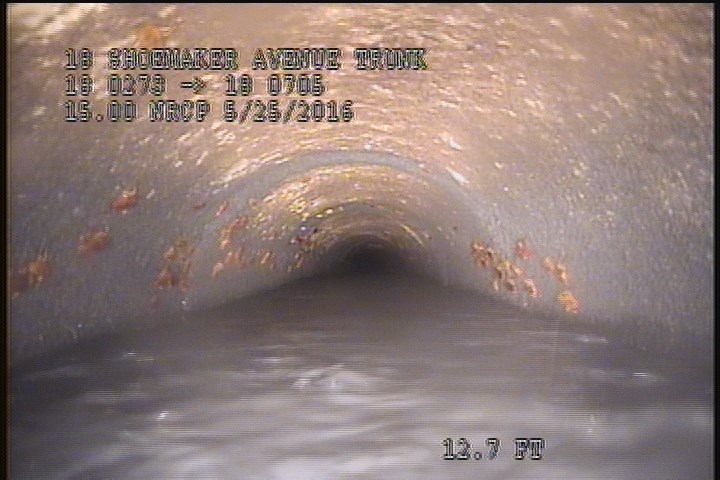

  • Water Mark, 55 %of cross sectional area

    0 ft. - Water Mark, 55 %of cross sectional area

All inspections of P14101Work order 0568850

Observations (13)

DistanceCodeObservation
0MGOACTIVE CONN. INSIDE THE MH. @ 03 O'CLOCK
0AMH9:57 AM
51.2MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
50.4MGOROACHES INSIDE THE MH.
50.4SAV—
0MWM—
2SAV—
0MGOACTIVE CONN. INSIDE THE MH. @ 09 O'CLOCK
0MWL—
50.4SSS—
0MGOROACHES INSIDE THE MH.
51.3AMH10:07 AM
2SSS—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2016-05-25T09:54:43-07:00
