Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 23, 2016, 04:16 PM

  • 18 0283_18 0282_5232016_092015.mp4

Date
05/23/2016
W/O
0568850
Weather
Dry
Operator/Surveyor
MIRANDA
Sewer ID
Z00702
PipeID
P14111
Time
9:16 AM
Certificate
U-1014-06022542
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7128
Sewer Name
18 SHOEMAKER AVENUE TRUNK
City
NORWALK
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
20160523AM_SHOEMAKER_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
18 0283
Downstream MH
18 0282
Dir. of Survey
Downstream
Length Surveyed
356.9 ft.
Total Length
356.9 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 18 0283 to 18 0282
MH: 18 0283MH: 18 0282downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:18 AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start2 ft. MGO - General Observation - 70% MAG COAT FROM 09 TO 03 O'CLOCK, START2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO, Start53.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"56.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"101.7 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6" - UNKNOWN104.8 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"122.8 ft. MGO - General Observation - 50% MAG COAT FROM 09 TO 03 O'CLOCK, CHANGE153.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"156.2 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"204.8 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"208.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"253.3 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"256.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"304.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"308.1 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"355 ft. MGO - General Observation - SAGS THROUGHOUT THE REACH355.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish355.4 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish355.4 ft. MGO - General Observation - 50% MAG COAT FROM 09 TO 03 O'CLOCK, FINISH356 ft. MGO - General Observation - ROACHES INSIDE THE MH.356.9 ft. AMH - Downstream Manhole, Survey Ends - 9:51 AM

Observation photos (6)

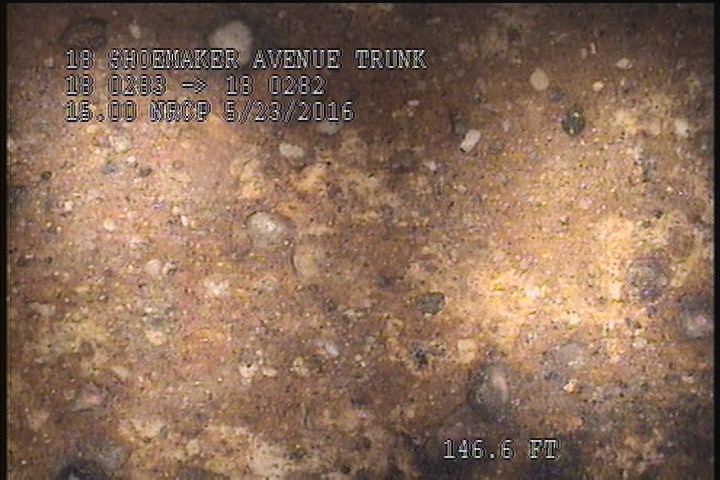

  • Upstream Manhole, Survey Begins - 9:18 AM

    0 ft. - Upstream Manhole, Survey Begins - 9:18 AM

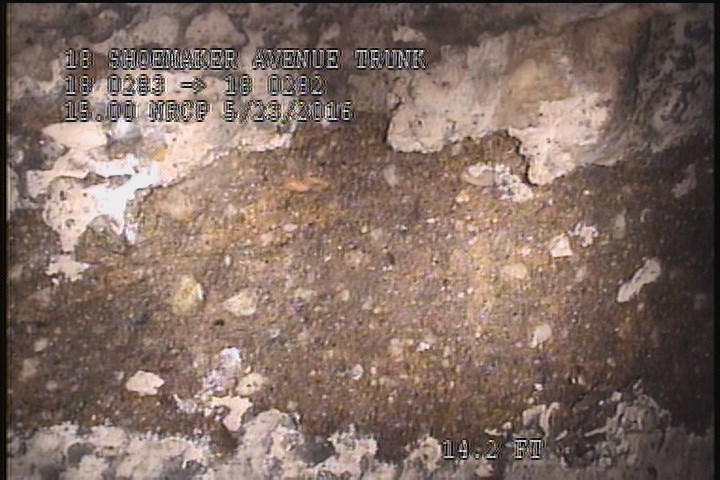

  • Water Mark, 50 %of cross sectional area

    0 ft. - Water Mark, 50 %of cross sectional area

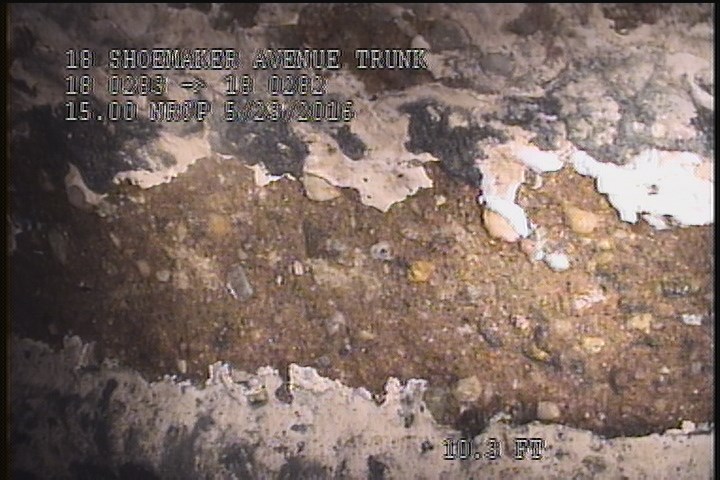

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

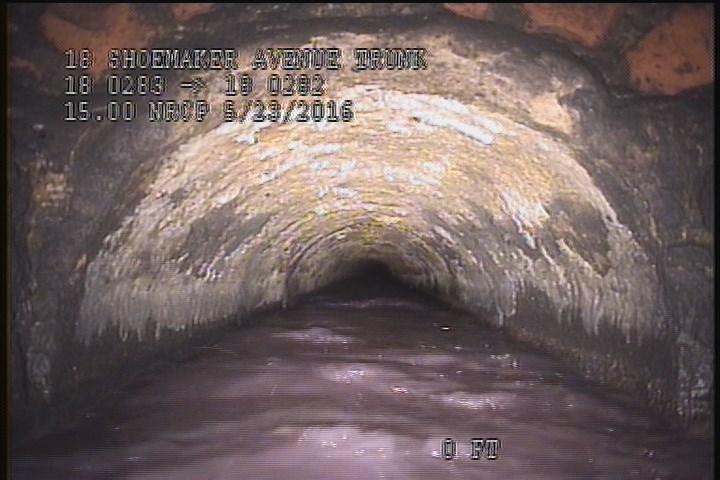

  • General Observation - 70% MAG COAT FROM 09 TO 03 O'CLOCK, START

    2 ft. - General Observation - 70% MAG COAT FROM 09 TO 03 O'CLOCK, START

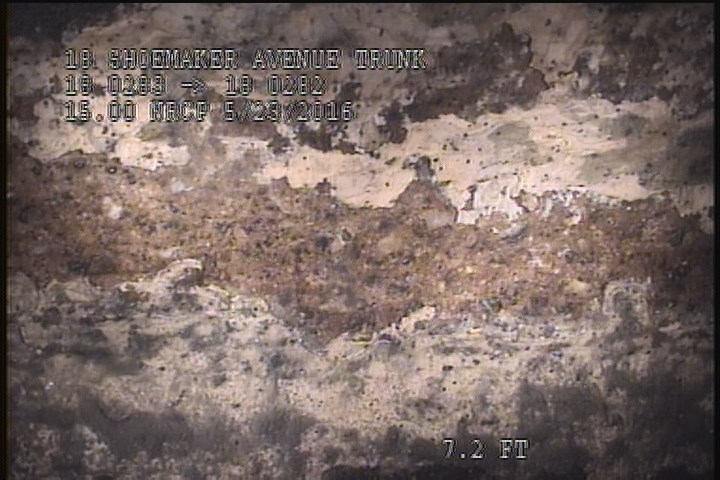

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

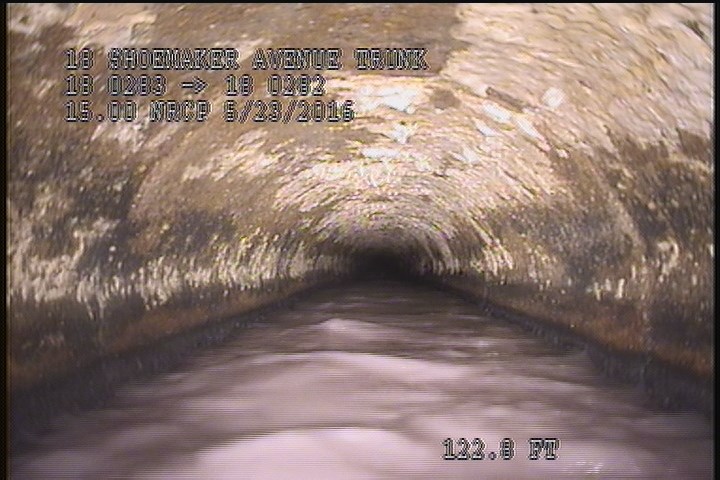

  • General Observation - 50% MAG COAT FROM 09 TO 03 O'CLOCK, CHANGE

    122.8 ft. - General Observation - 50% MAG COAT FROM 09 TO 03 O'CLOCK, CHANGE

All inspections of P14111Work order 0568850

Observations (25)

DistanceCodeObservation
208.1TFC—
2SAV—
0AMH9:18 AM
256.3TFC—
104.8TFC—
2MGO70% MAG COAT FROM 09 TO 03 O'CLOCK, START
253.3TFC—
0MWM—
204.8TFC—
356MGOROACHES INSIDE THE MH.
356.9AMH9:51 AM
122.8MGO50% MAG COAT FROM 09 TO 03 O'CLOCK, CHANGE
156.2TFC—
304.9TFC—
56.3TFC—
308.1TFA—
355.4SSS—
2SSS—
355MGOSAGS THROUGHOUT THE REACH
355.4SAV—
0MWL—
53.3TFC—
153.2TFC—
101.7TFUNKNOWN
355.4MGO50% MAG COAT FROM 09 TO 03 O'CLOCK, FINISH

Properties (3)

custom_field_two
3
customer
LACSD
datetime
