Wastewater/Activity/PacpInspection/1.0May 18, 2016, 09:13 AM
- Date
- 05/18/2016
- W/O
- 0557626
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00191
- PipeID
- P11033
- Time
- 2:13 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6704
- Sewer Name
- H JOINT OUTFALL H - UNIT 8H
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 24
- Purpose
- Capital Improvement Program Assesment
- Project
- 20160518MDM_JOINT_OUTFALL_H_UNIT_8H
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- H 0615
- Downstream MH
- H 0614
- Dir. of Survey
- Downstream
- Length Surveyed
- 6.5 ft.
- Total Length
- 6.5 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

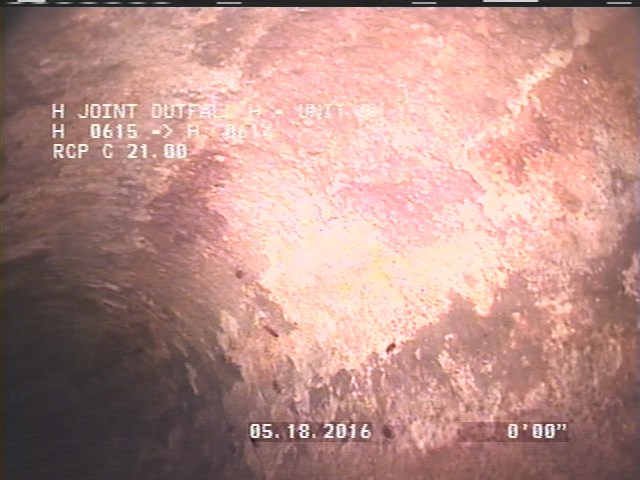

1.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING BLISTERING LAITANCE COAT

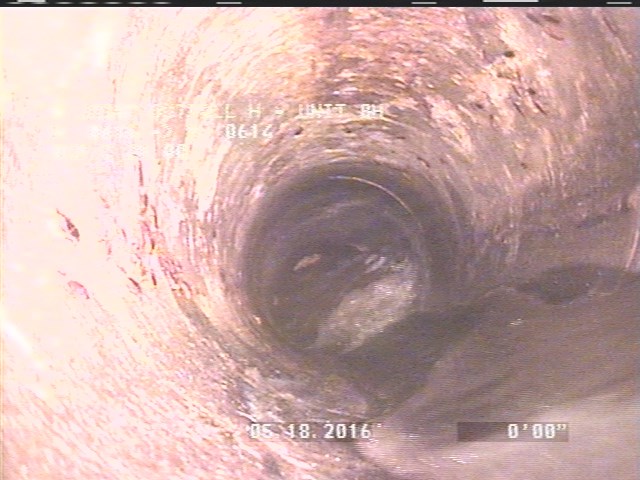

6 ft. - General Observation - VEIW DOWNLEG UPSTREAM SIPHON WEST

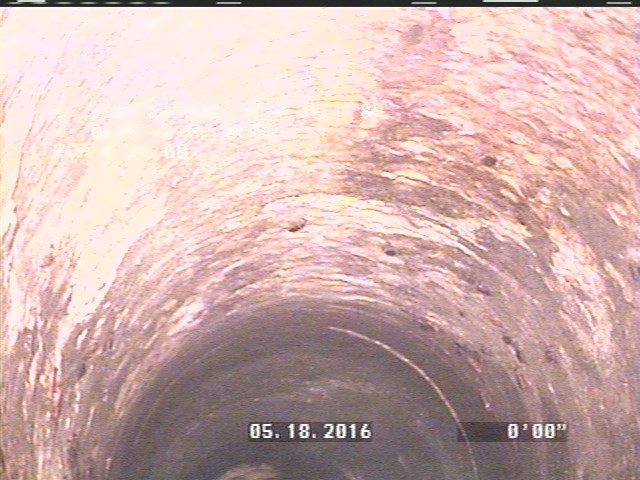

6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

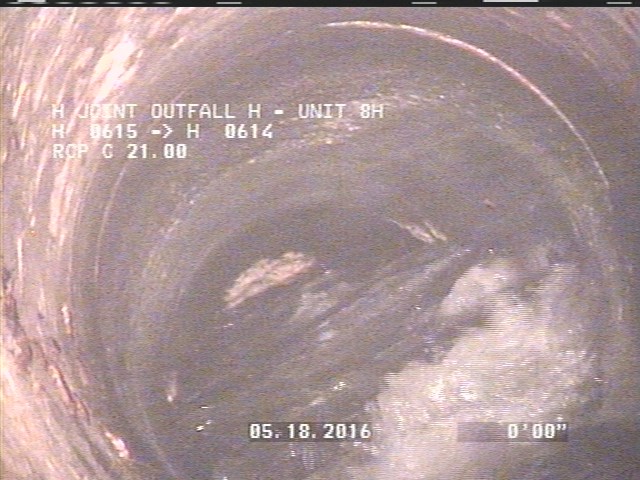

6.5 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON WEST
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 6 | MGO | VEIW DOWNLEG UPSTREAM SIPHON WEST |
| 1.2 | SSS | PEELING BLISTERING LAITANCE COAT |
| 0 | MWL | — |
| 6.5 | MSA | DOWNLEG UPSTREAM SIPHON WEST |
| 0 | AMH | 3:10AM |
| 6 | SSS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- DOWNLEG UPSTREAM SIPHON WEST
- custom_field_three
- PEELING LAITANCE COAT
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-18T02:13:07-07:00
