Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2016, 09:04 AM
Date
05/18/2016
W/O
0557626
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00191
PipeID
P20468
Time
2:04 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6704
Sewer Name
H JOINT OUTFALL H - UNIT 8H
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20160518MDM_JOINT_OUTFALL_H_UNIT_8H
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
H 0615
Downstream MH
H 0614
Dir. of Survey
Downstream
Length Surveyed
6.5 ft.
Total Length
6.5 ft.
Structural Index
4
Structural Quick
5232
Structural Rating
16
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole H 0615 to H 0614
MH: H 0615MH: H 0614downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - STOPLOG IN PLACE NO FLOW0 ft. MWL - Water Level, 0 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM2 ft. SAP - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG2 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - CIRCUM LONG REBAR5 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish - CIRCUM LONG REBAR5 ft. MGP - General Photograph5 ft. SAP - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish6 ft. MGO - General Observation - VEIW DOWNLEG UPSTREAM SIPHON EAST6.5 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON EAST

Observation photos (6)

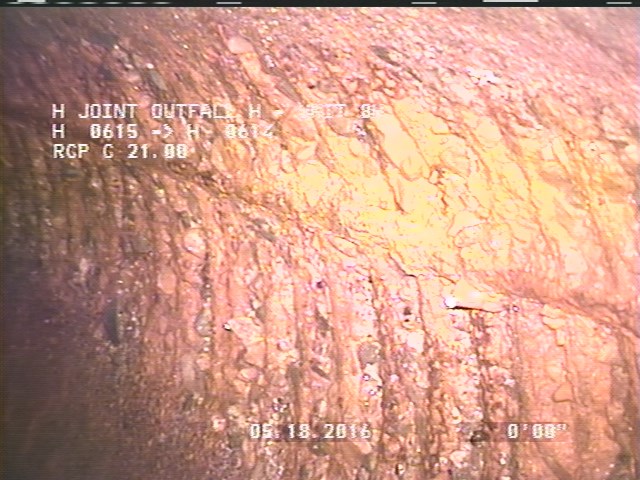

  • Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG

    2 ft. - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG

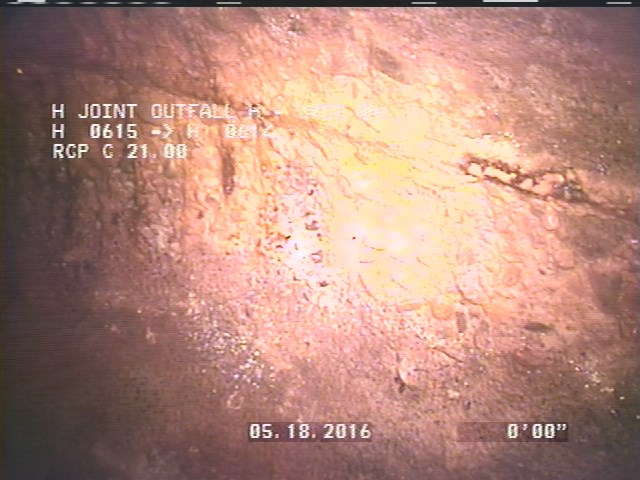

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - CIRCUM LONG REBAR

    2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Start - CIRCUM LONG REBAR

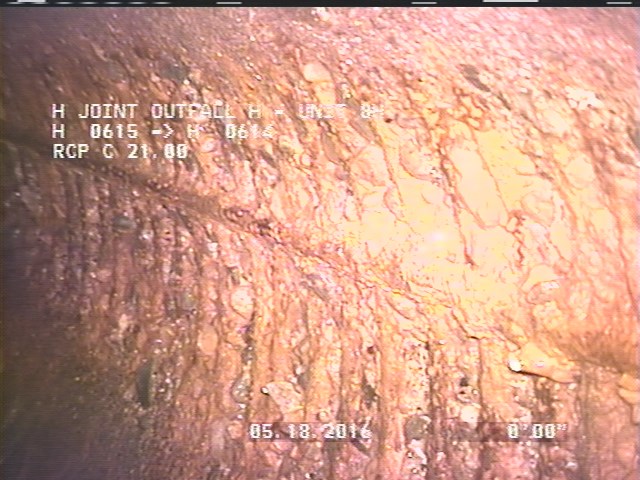

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish - CIRCUM LONG REBAR

    5 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: NO, Finish - CIRCUM LONG REBAR

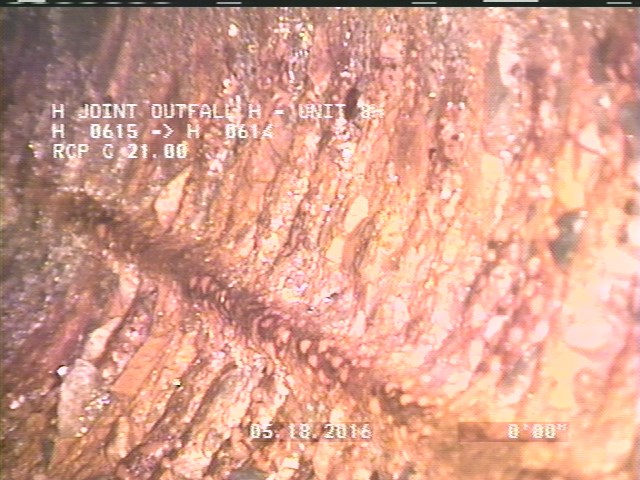

  • General Photograph

    5 ft. - General Photograph

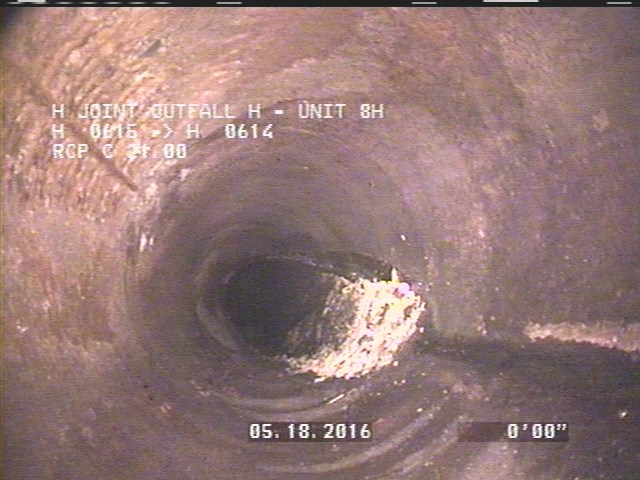

  • General Observation - VEIW DOWNLEG UPSTREAM SIPHON EAST

    6 ft. - General Observation - VEIW DOWNLEG UPSTREAM SIPHON EAST

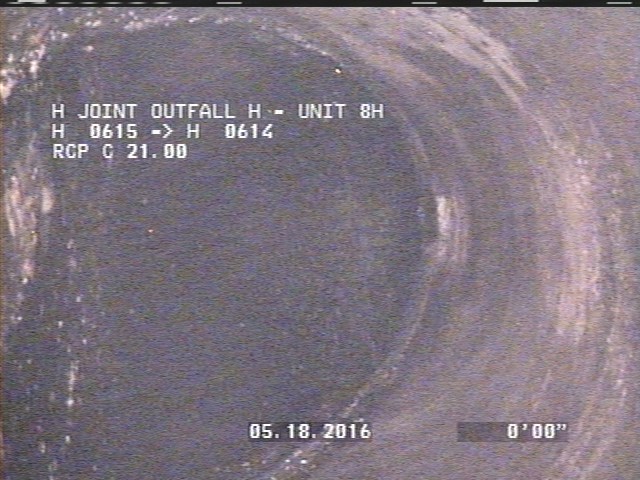

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON EAST

    6.5 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON EAST

All inspections of P20468Work order 0557626

Observations (11)

DistanceCodeObservation
0MWM—
0MGOSTOPLOG IN PLACE NO FLOW
5SRVCIRCUM LONG REBAR
5MGP—
6MGOVEIW DOWNLEG UPSTREAM SIPHON EAST
2SAPSEVERE AGG
2SRVCIRCUM LONG REBAR
5SAP—
6.5MSADOWNLEG UPSTREAM SIPHON EAST
0MWL—
0AMH2:55AM

Properties (5)

additional_info
DOWNLEG UPSTREAM SIPHON EAST
custom_field_three
CIRCUM LONG REBAR
custom_field_two
2
customer
LACSD
datetime
2016-05-18T02:04:44-07:00
